Test A

PINPOINT TEST A: THE FRONT INTERIOR LAMP IS INOPERATIVE

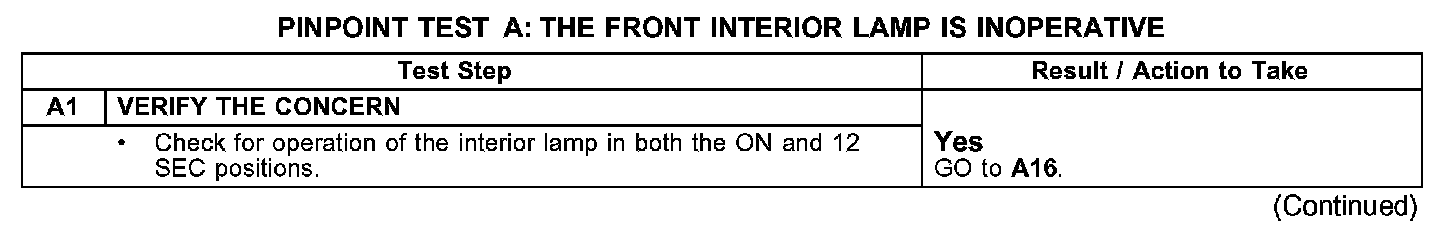

Test A1:

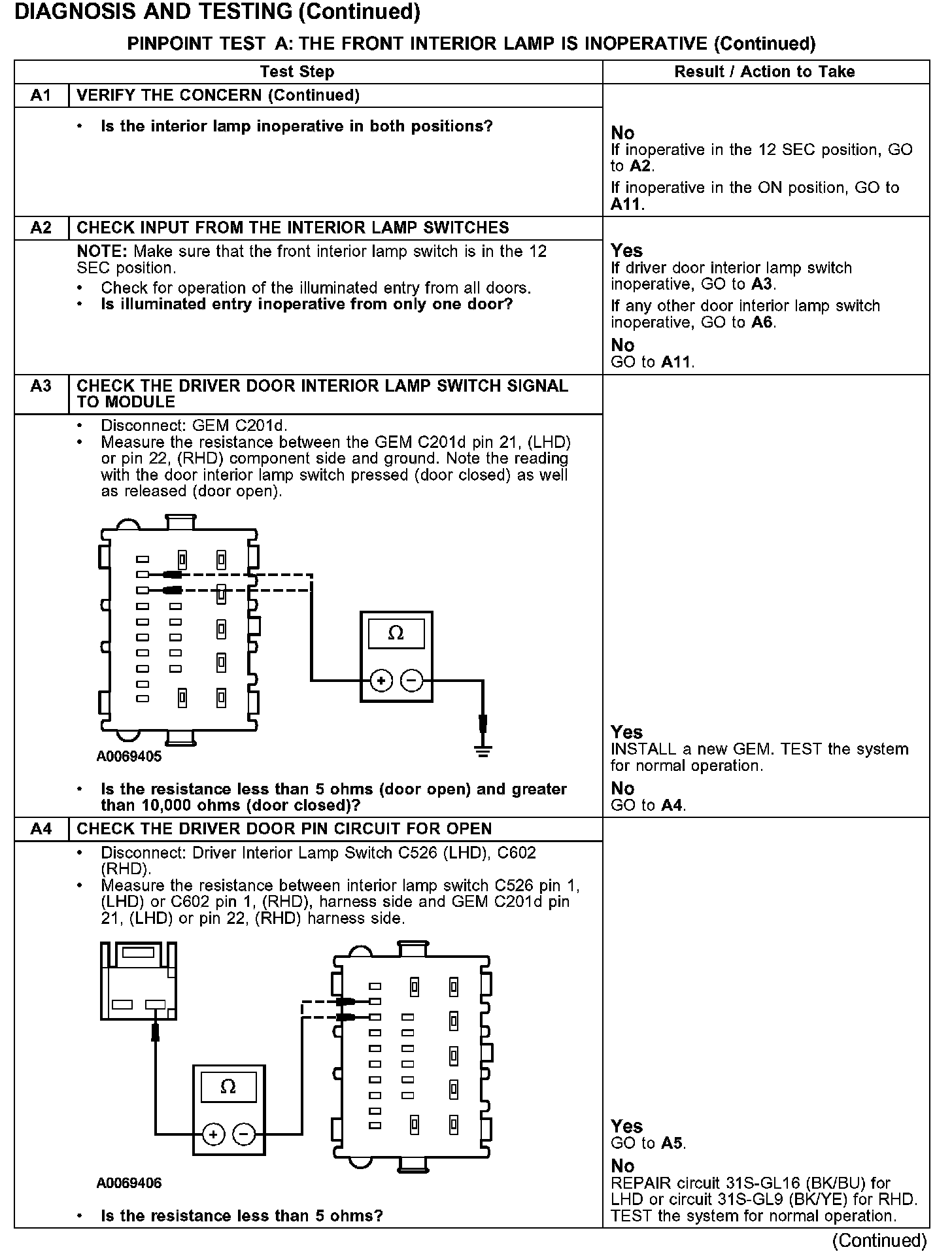

Test A1-A4:

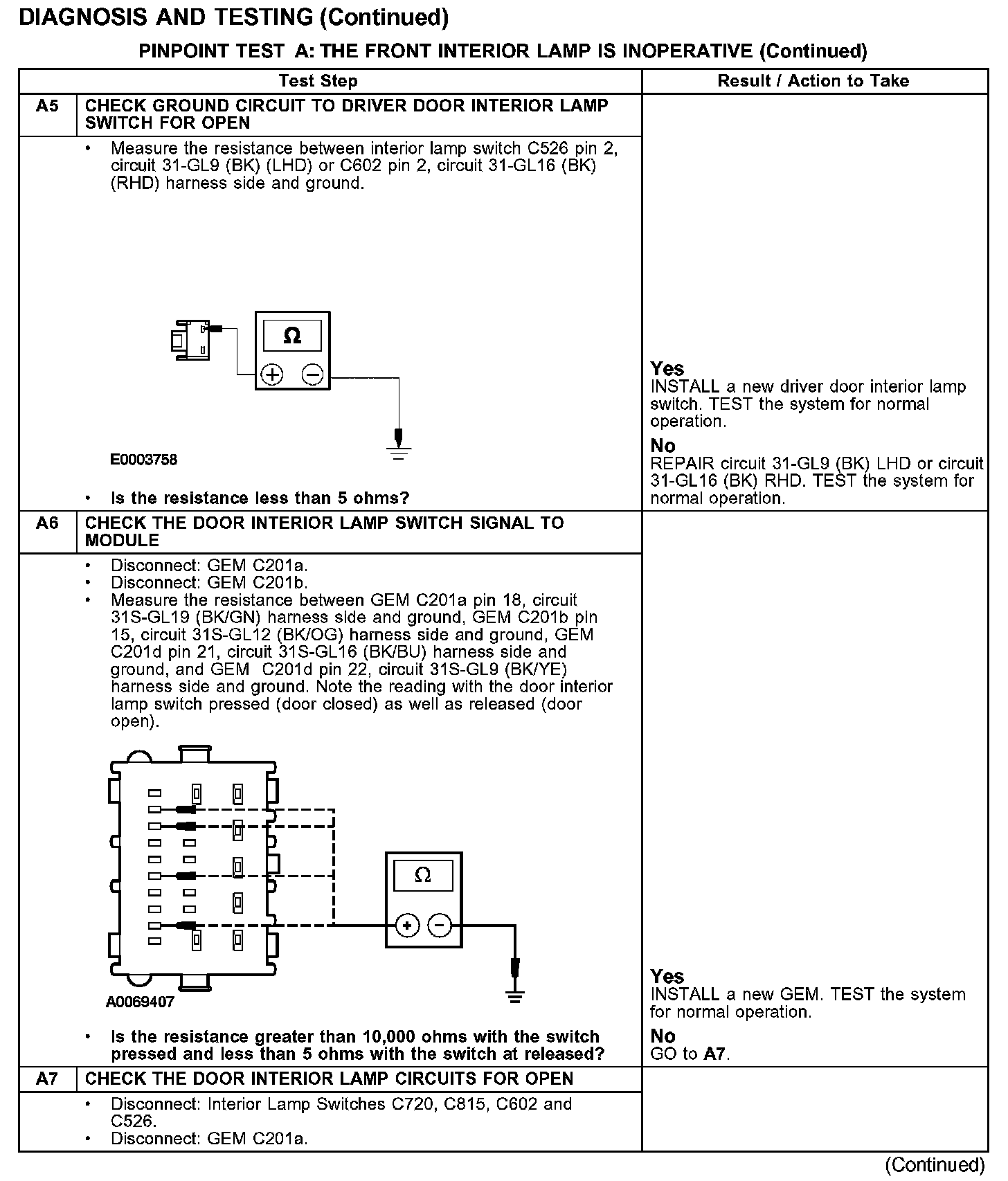

Test A5-A7:

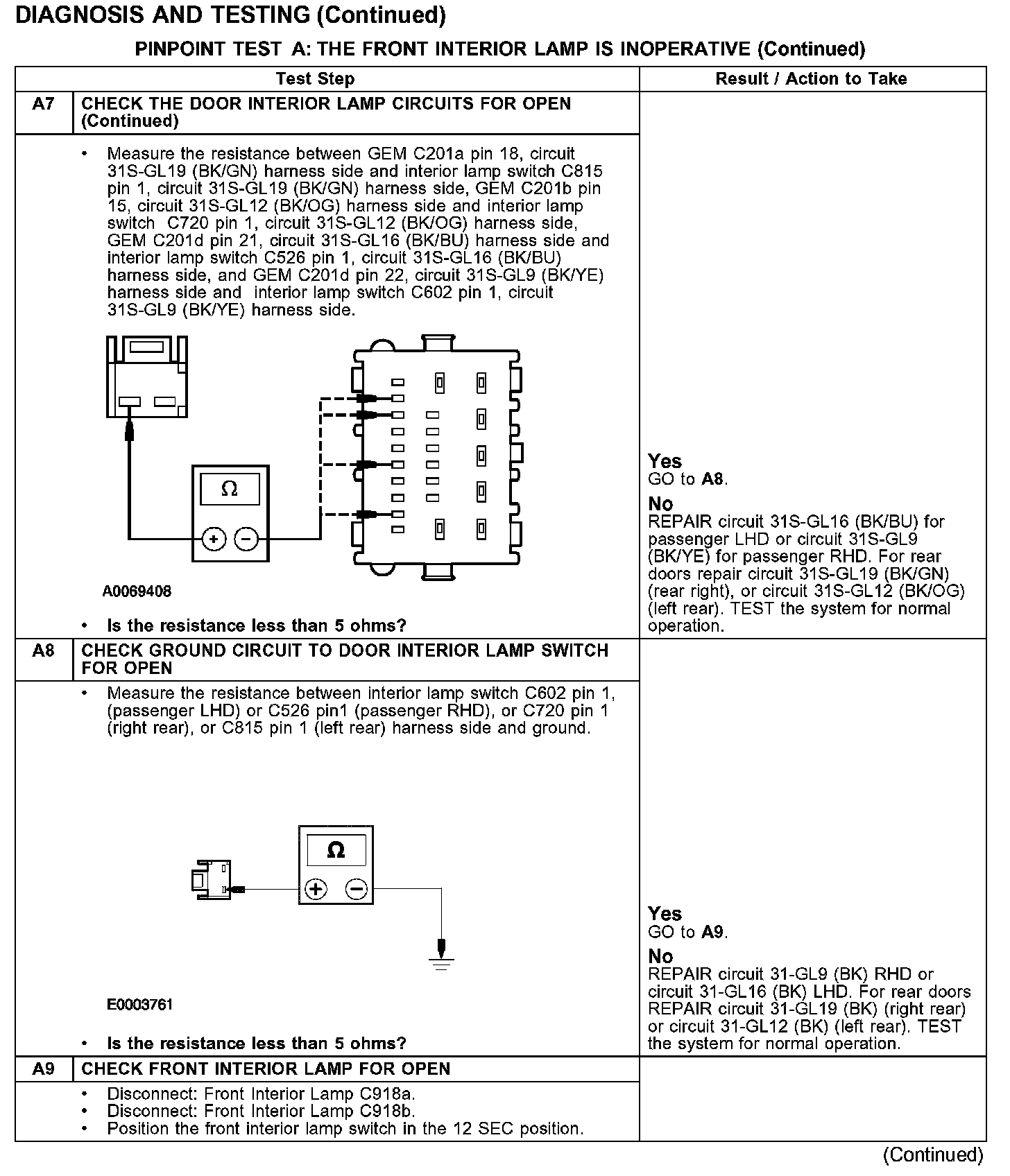

Test A7-A9:

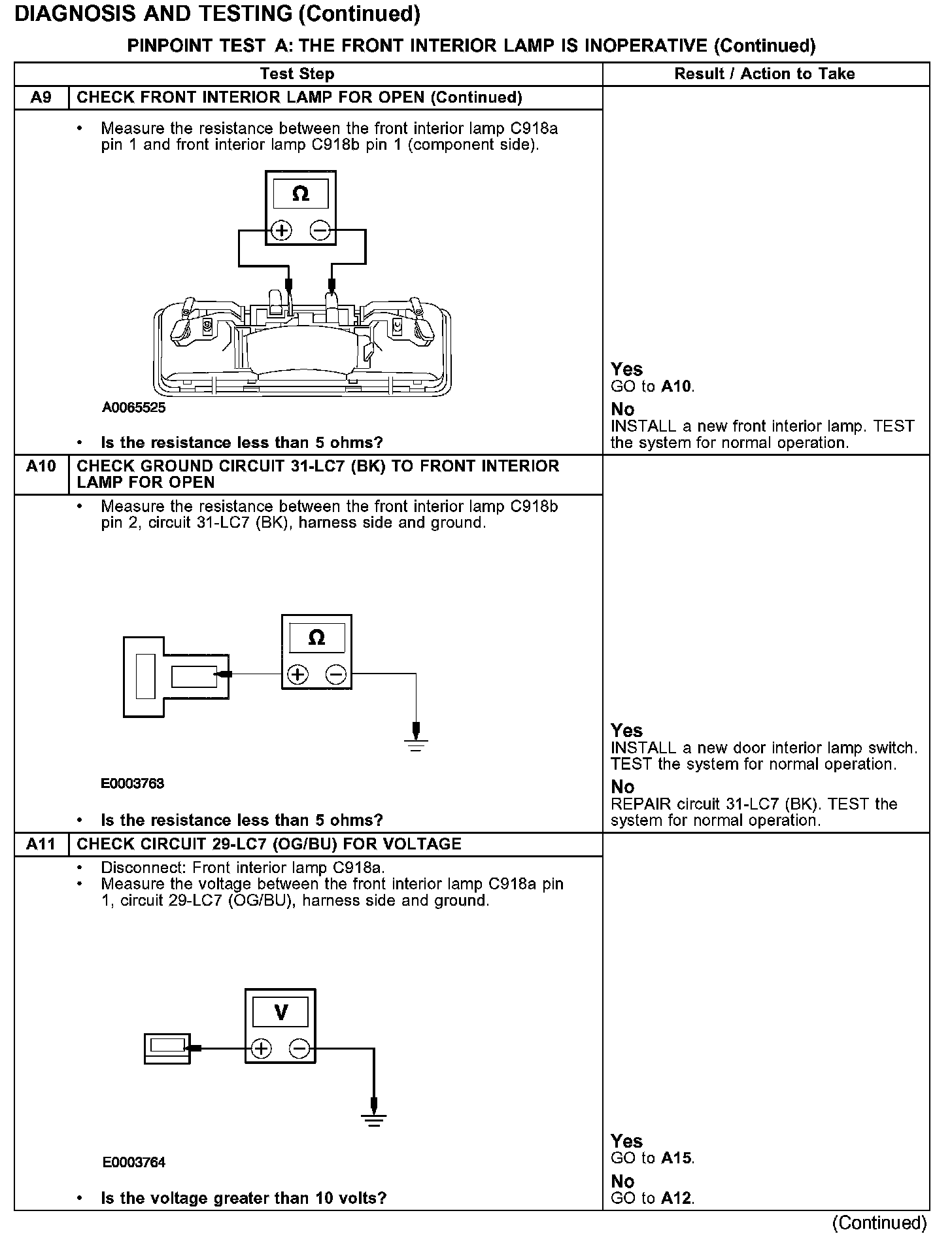

Test A9-A11:

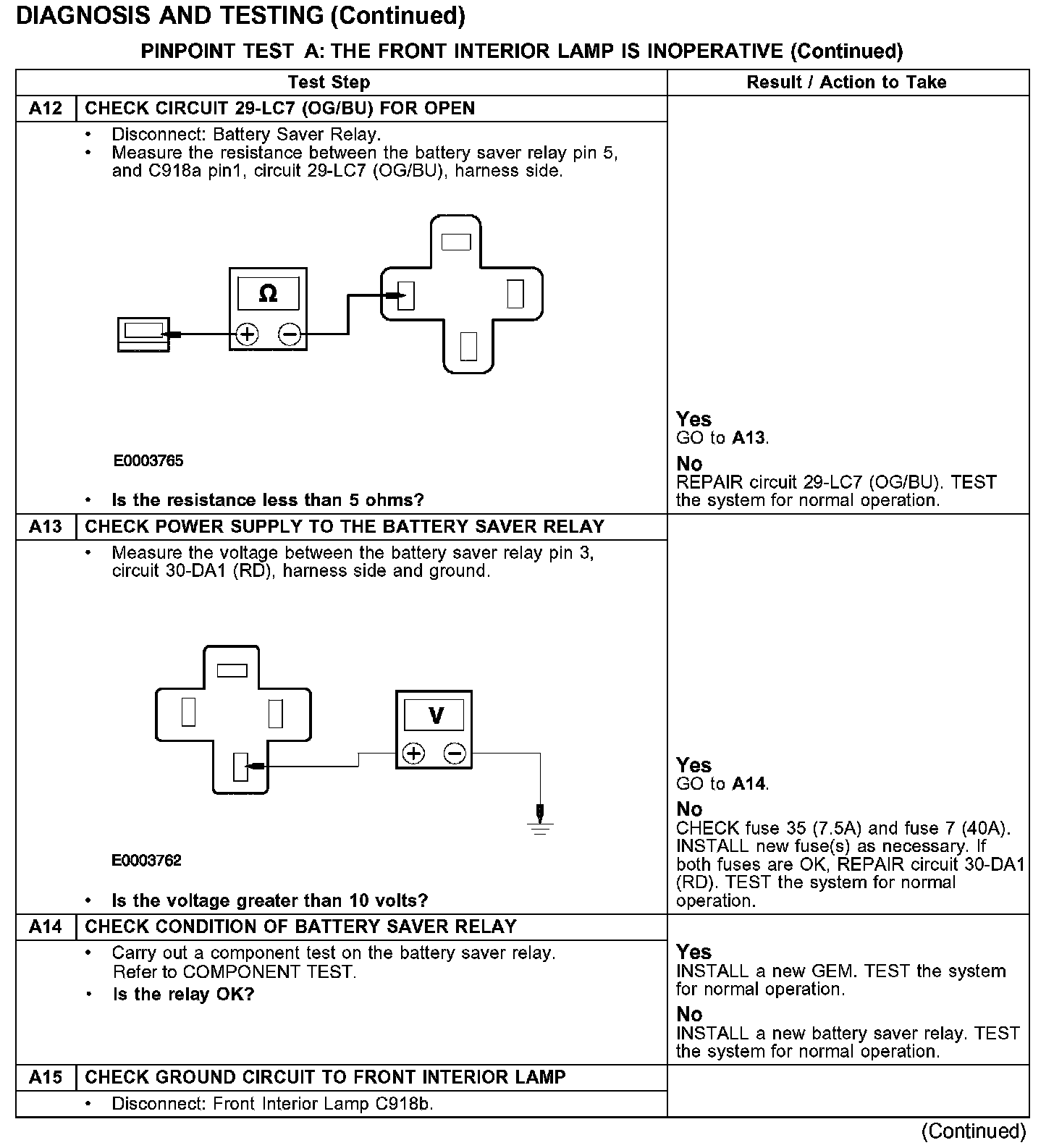

Test A12-A15:

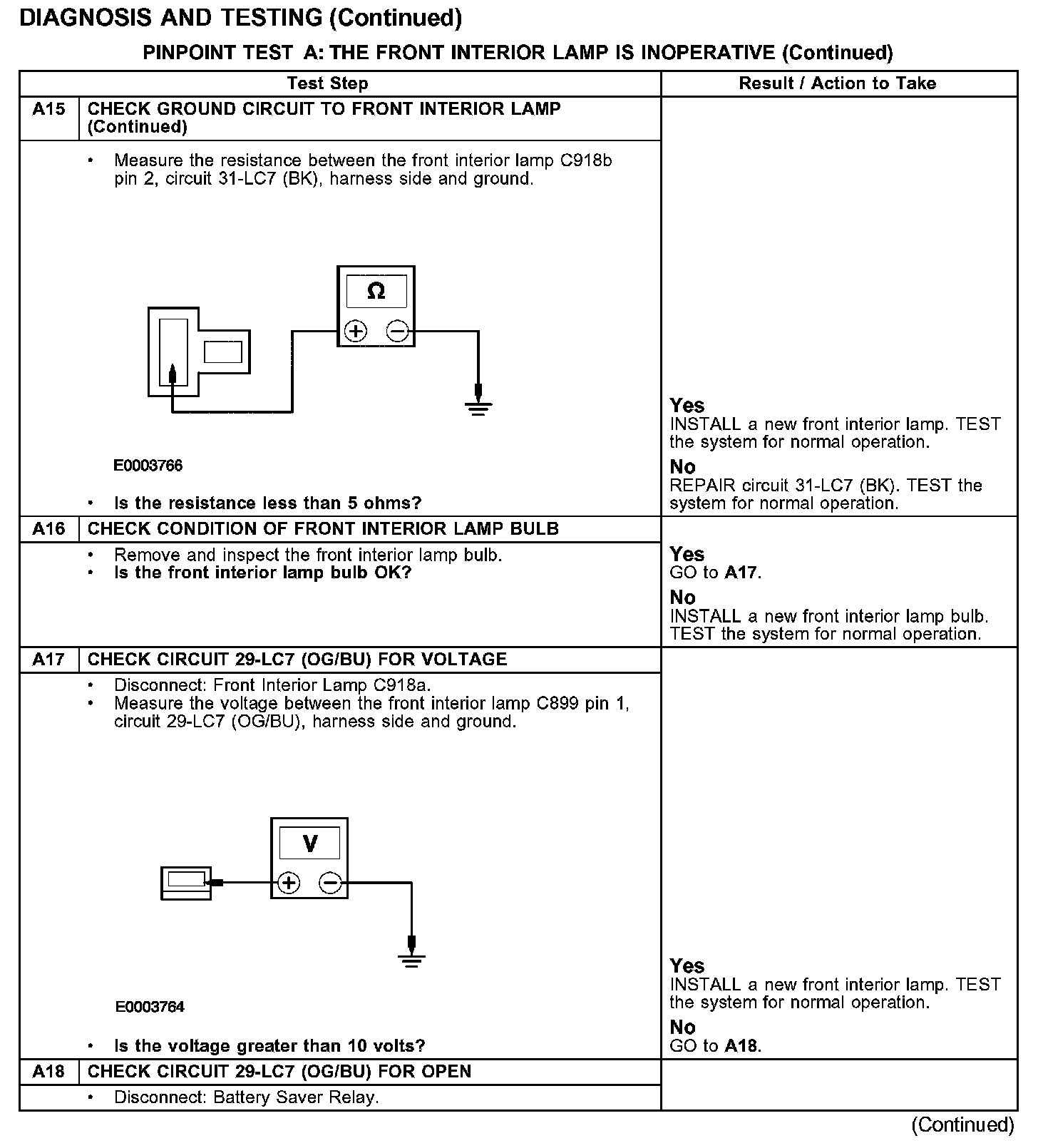

Test A15-A18:

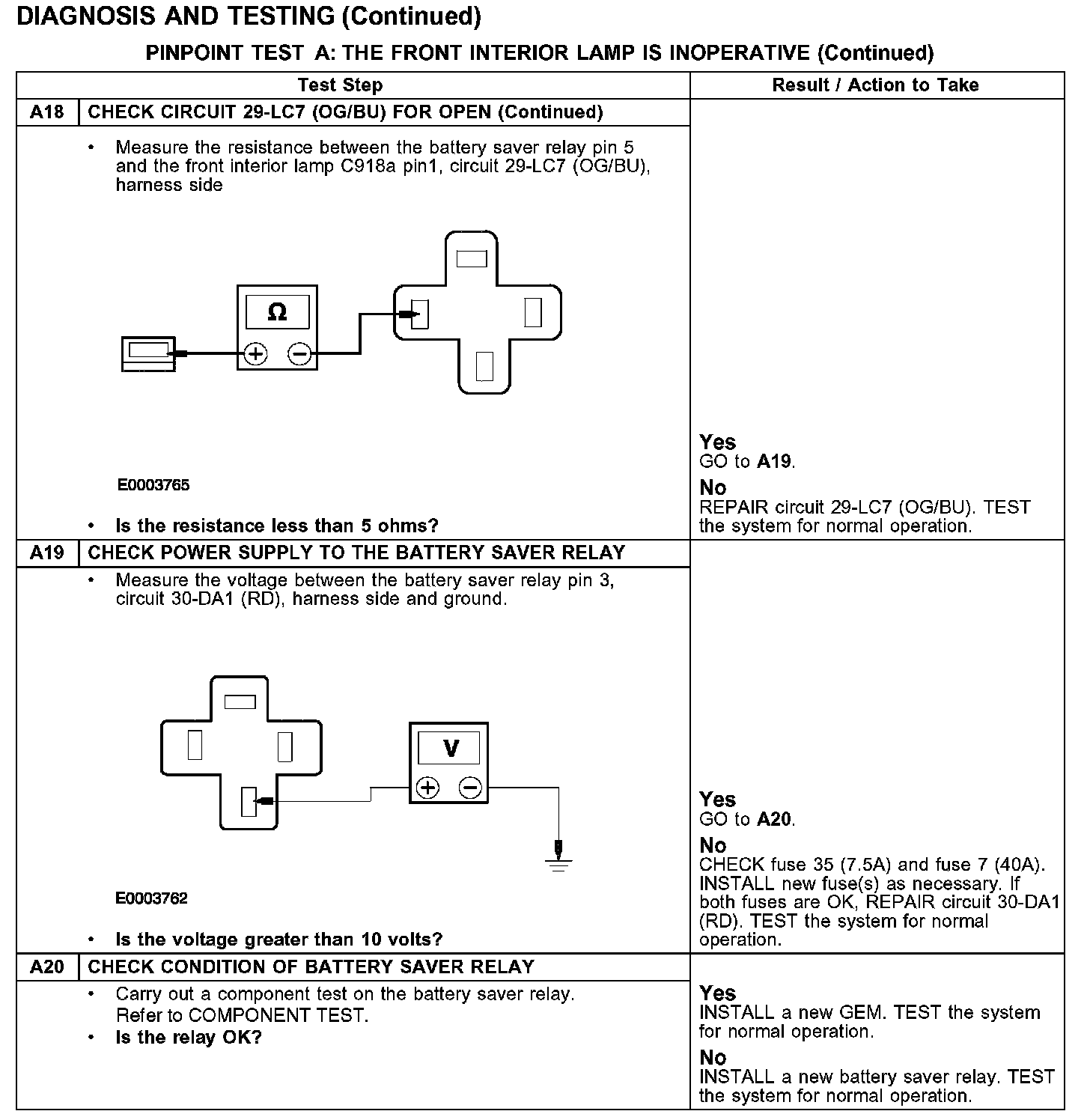

Test A18-A20:
