Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Focus L4-2.0L DOHC VIN 3
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests
>>
Test B
Test B

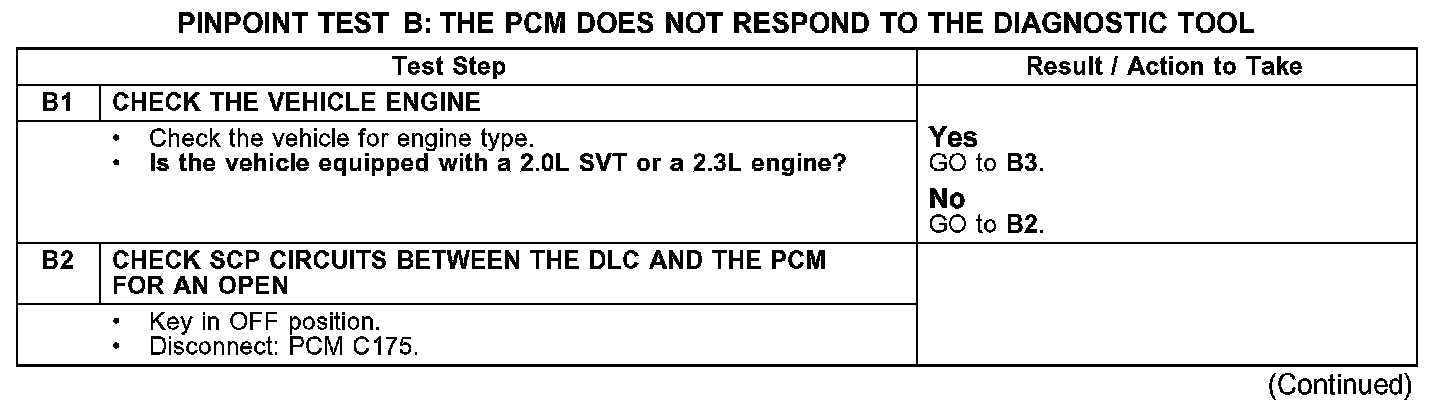

PINPOINT TEST B: THE PCM DOES NOT RESPOND TO THE DIAGNOSTIC TOOL
Test B1-B2:

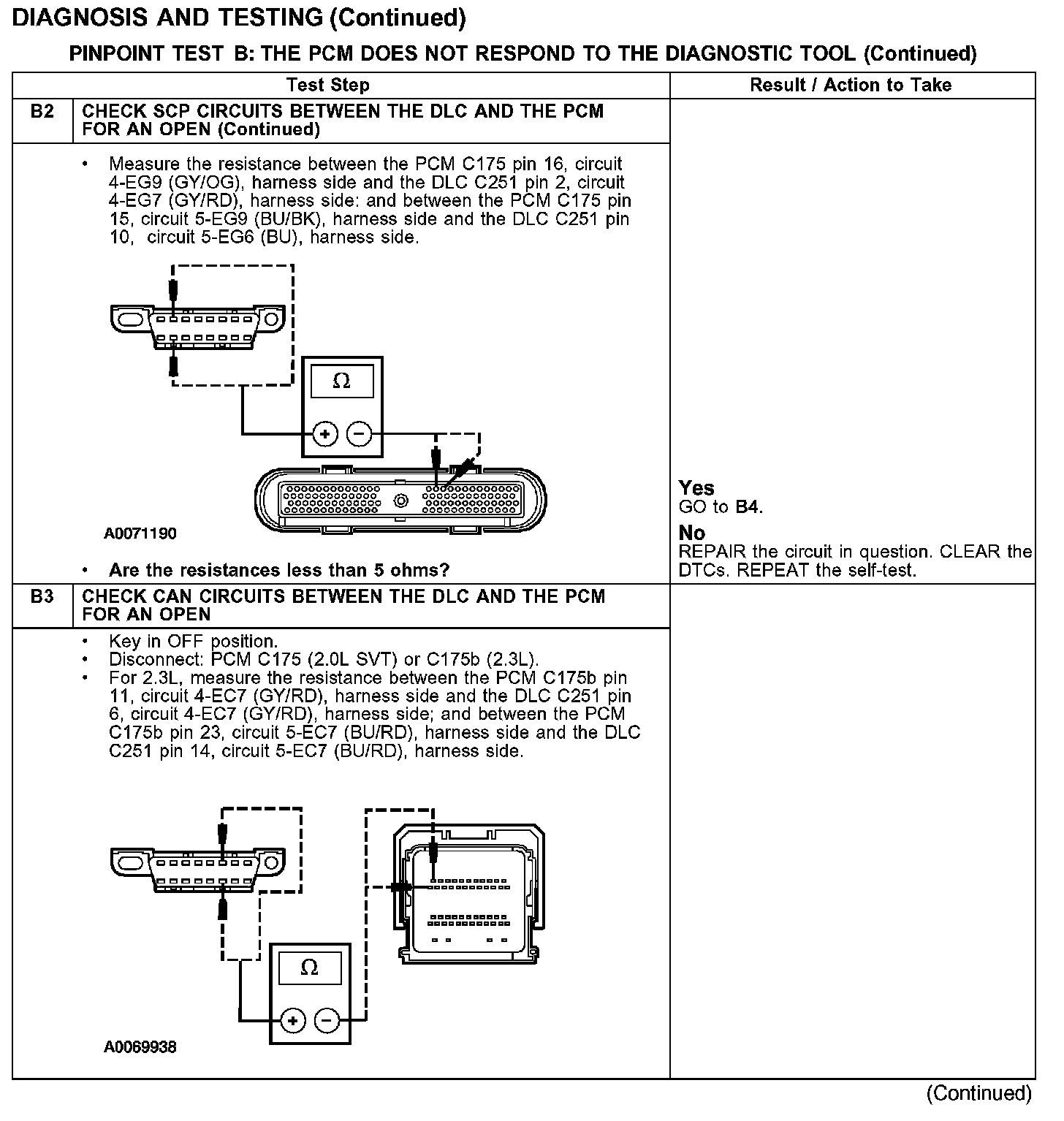

Test B2-B3:

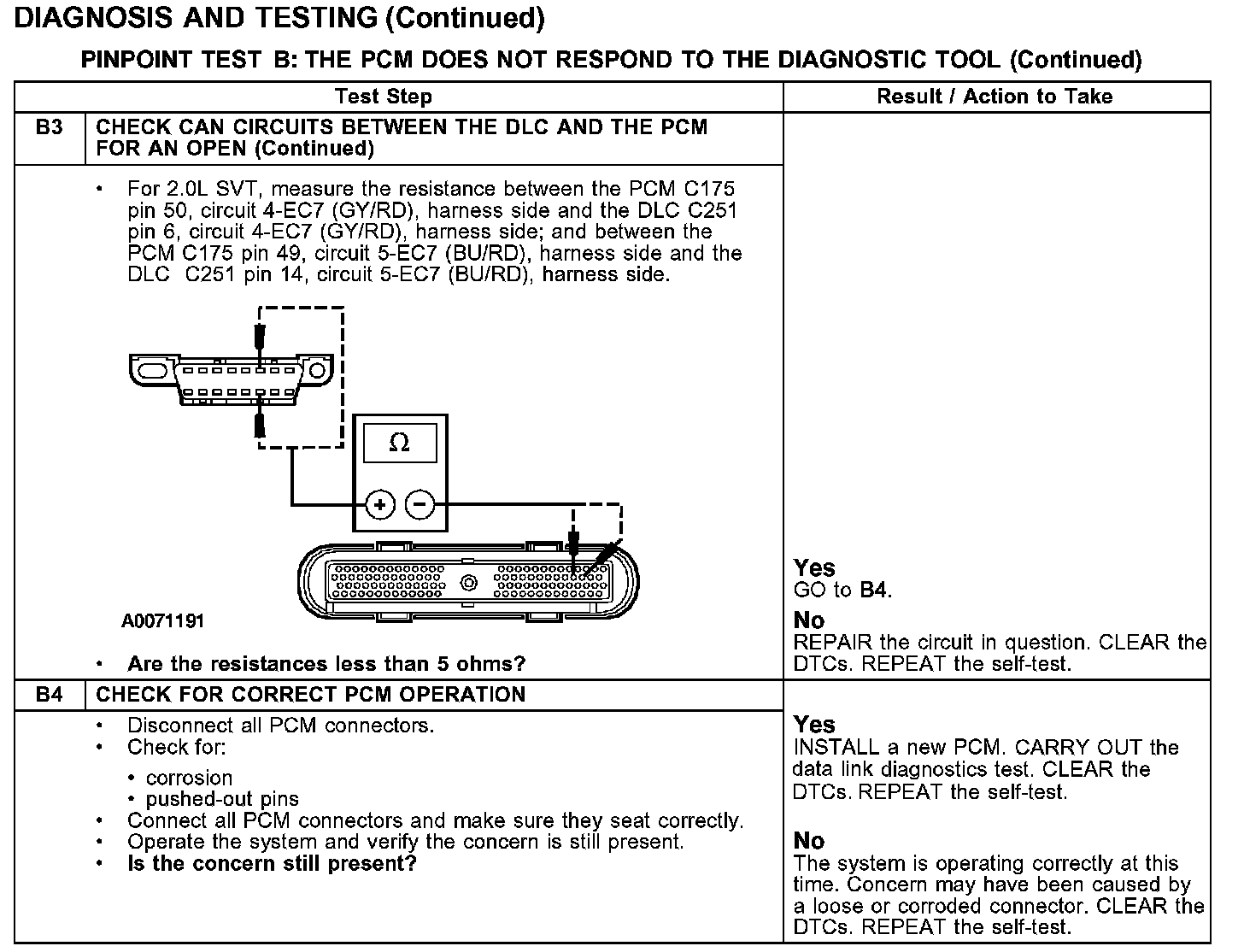

Test B3-B4:
