4-Door

REAR CENTER SAFETY BELT RETRACTOR - 4-DOOR

REMOVAL







1. Detach the center safety belt lower anchor.
2. Remove the rear parcel shelf.

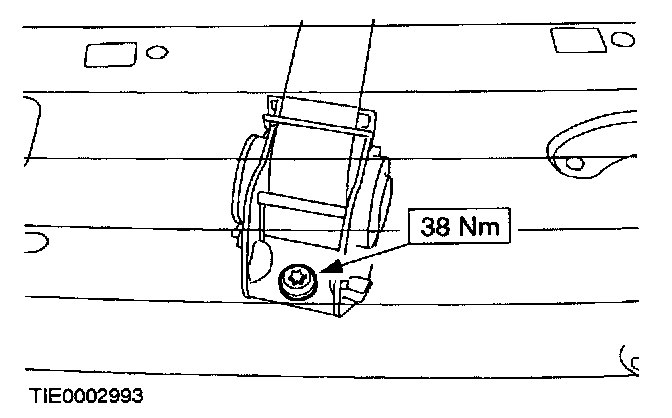

3. Remove the center rear safety belt retractor (viewed through the rear window).

INSTALLATION












1. CAUTION: Make sure the retractor locating dowel is correctly located.

To install, reverse the removal procedure.
