3-Door

REAR SAFETY BELT RETRACTOR - 3-DOOR

REMOVAL
1. Lift the rear seat cushion.

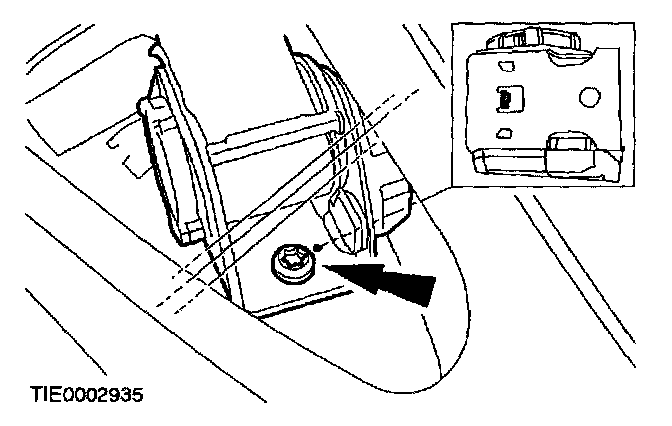

2. Detach the safety belt lower anchor.

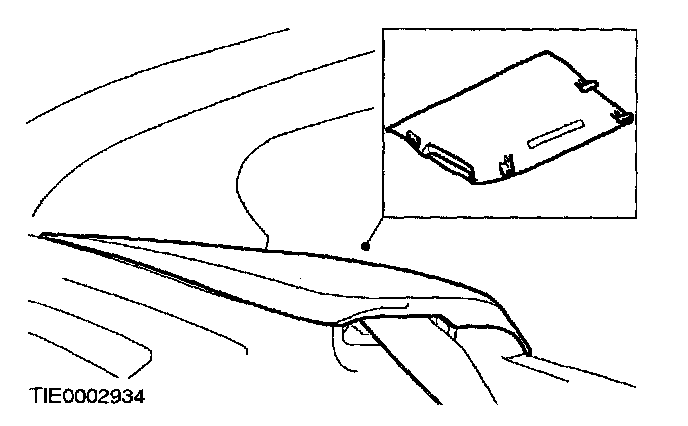

3. Remove the retractor cover.







4. Remove the safety belt retractor.

INSTALLATION

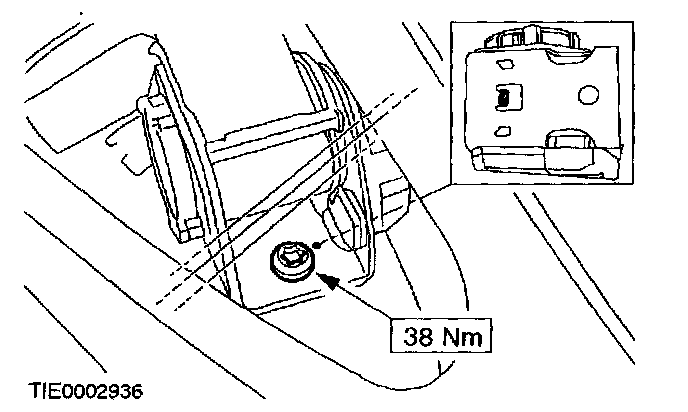

1. CAUTION: Make sure the locating dowel on the underside of the retractor is correctly located.

To install, reverse the removal procedure.
