Arm - Front, Lower

Arm - Front, Lower

Removal
1. Set the suspension to the design height.

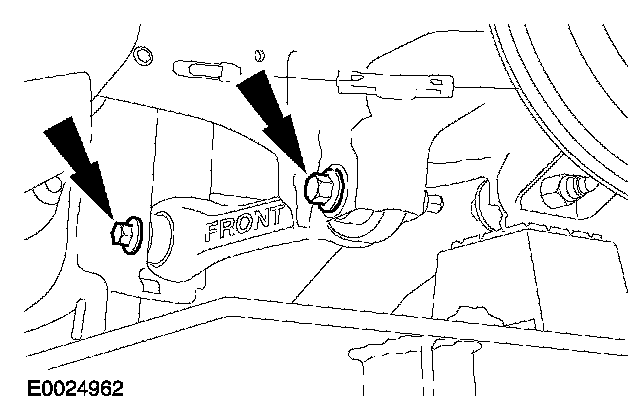

2. CAUTION: The front lower arm is marked FRONT. Make a note of the position of the front lower arm to aid installation.

Remove the front lower arm.

Installation





All vehicles

NOTE: Final tightening of the rear suspension components should be carried out at the design height setting.

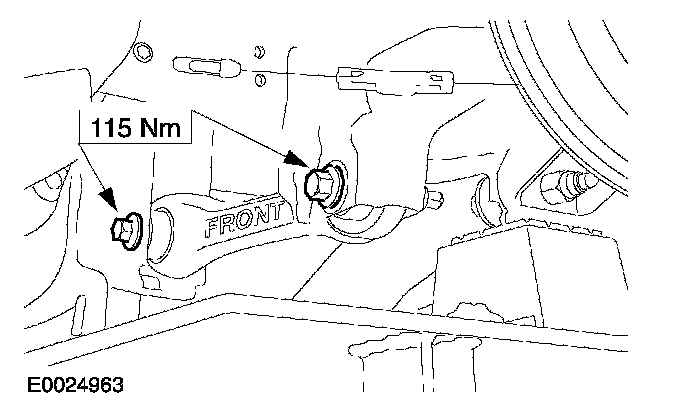

1. Install the front lower arm.





Wagon

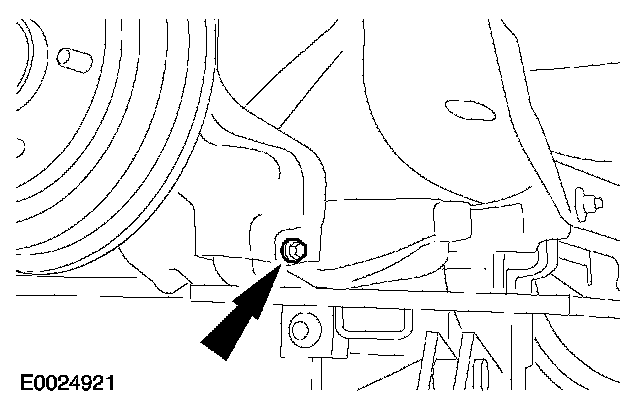

2. Detach the rear lower arm from the wheel knuckle.

All vehicles
3. Lower the suspension from the design height setting.
4. Install the spring.
