Amplifier: Service and Repair

SUBWOOFER AMPLIFIER - SVT

REMOVAL







1. Remove the rear quarter trim panel

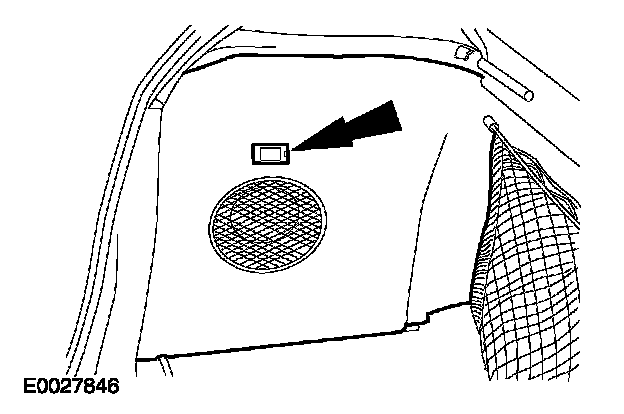

- Disconnect the luggage compartment lamp.

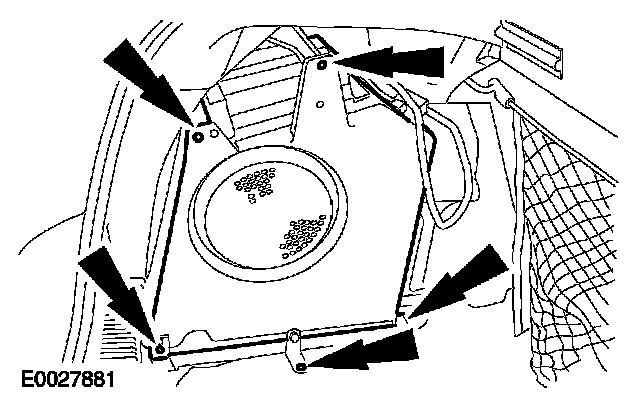

2. Remove the speaker enclosure.

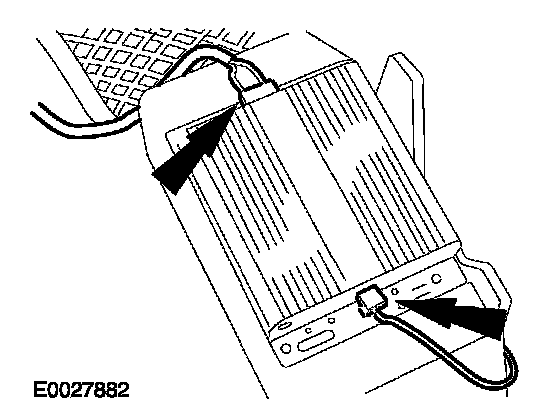

3. Disconnect the subwoofer amplifier electrical connectors.

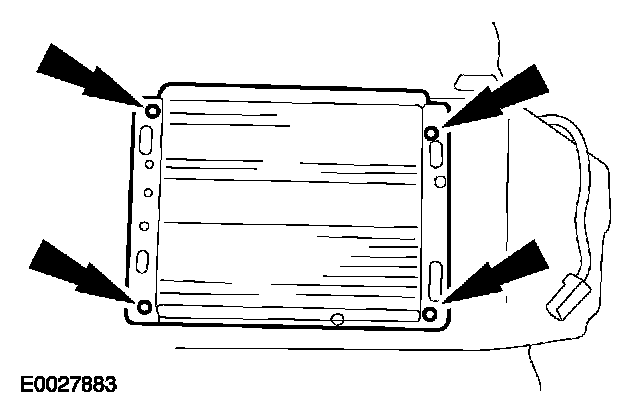

4. Remove the subwoofer amplifier from the speaker enclosure.

INSTALLATION
1. To install, reverse the removal procedure.
