Radio, Stereo, and Compact Disc: Service and Repair

AUDIO UNIT

Remover, Radio:

SPECIAL TOOL(S)

REMOVAL







1. Using the special tools, remove the audio unit.

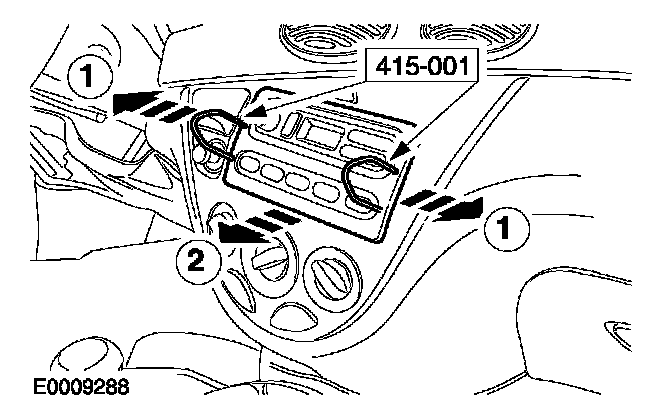

1 Insert the special tools into the locating holes. Pull the tools gently to the left and right of the audio unit to release the locking tangs.
2 Slide the audio unit out of the instrument panel.







2. Remove the audio unit.

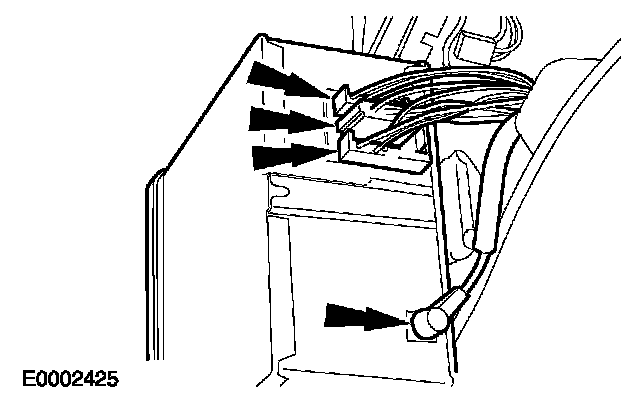

- Disconnect the audio unit electrical connectors.
- Disconnect the subwoofer amplifier electrical connector (if equipped).

INSTALLATION

NOTE: To reconfigure the 9006 Audiophile, refer to Inspection and Verification in Radio, Stereo, and Compact Disc; Testing and Inspection.

1. To install, reverse the removal procedure.
