Subwoofer Speaker

SUBWOOFER SPEAKER - SVT

REMOVAL







1. Remove the rear quarter trim panel

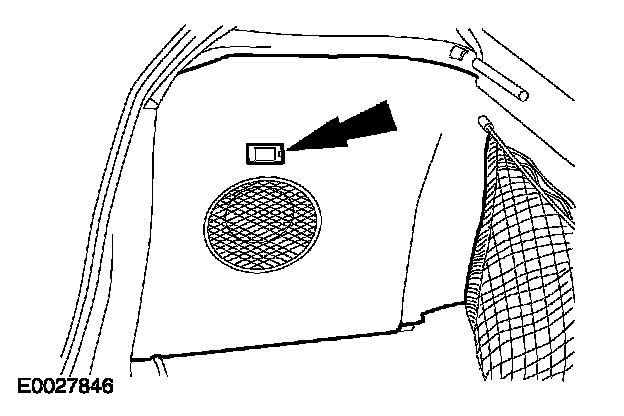

- Remove the luggage compartment lamp.

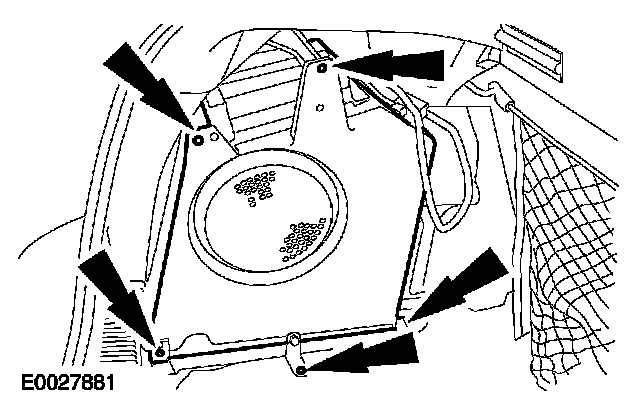

2. Remove the speaker enclosure.

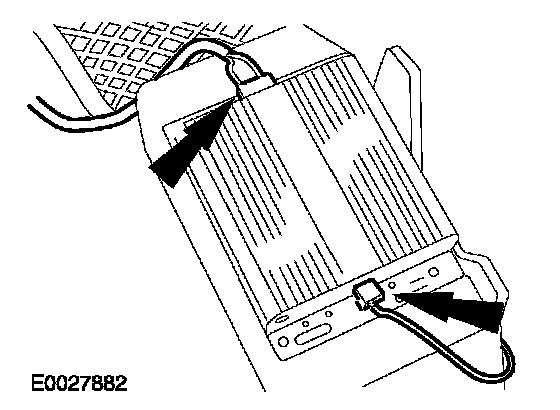

3. Disconnect the subwoofer amplifier electrical connectors.

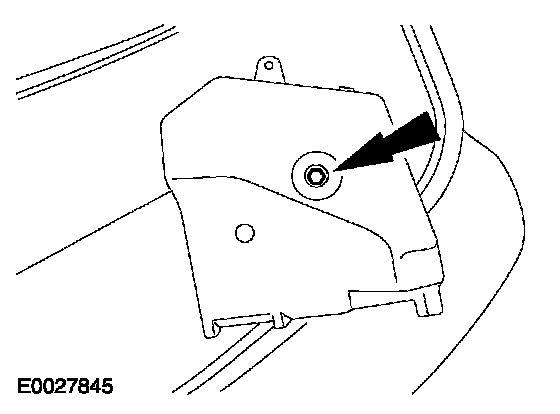

4. Remove the subwoofer rear retaining bolt.







5. Remove the subwoofer from the speaker enclosure.

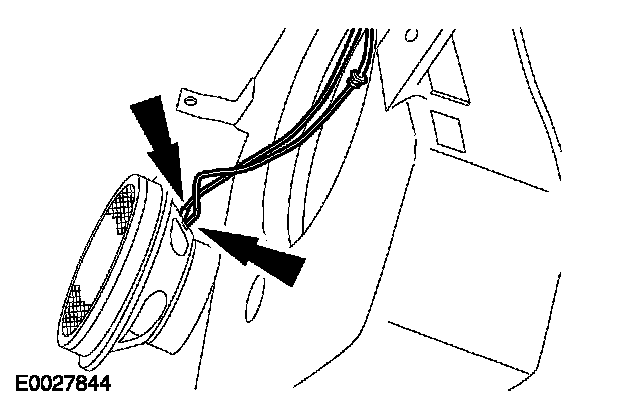

6. Disconnect the subwoofer electrical connectors and remove the subwoofer.

INSTALLATION
1. To install, reverse the removal procedure.
