Test A

PINPOINT TEST A: THE AUDIO UNIT IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

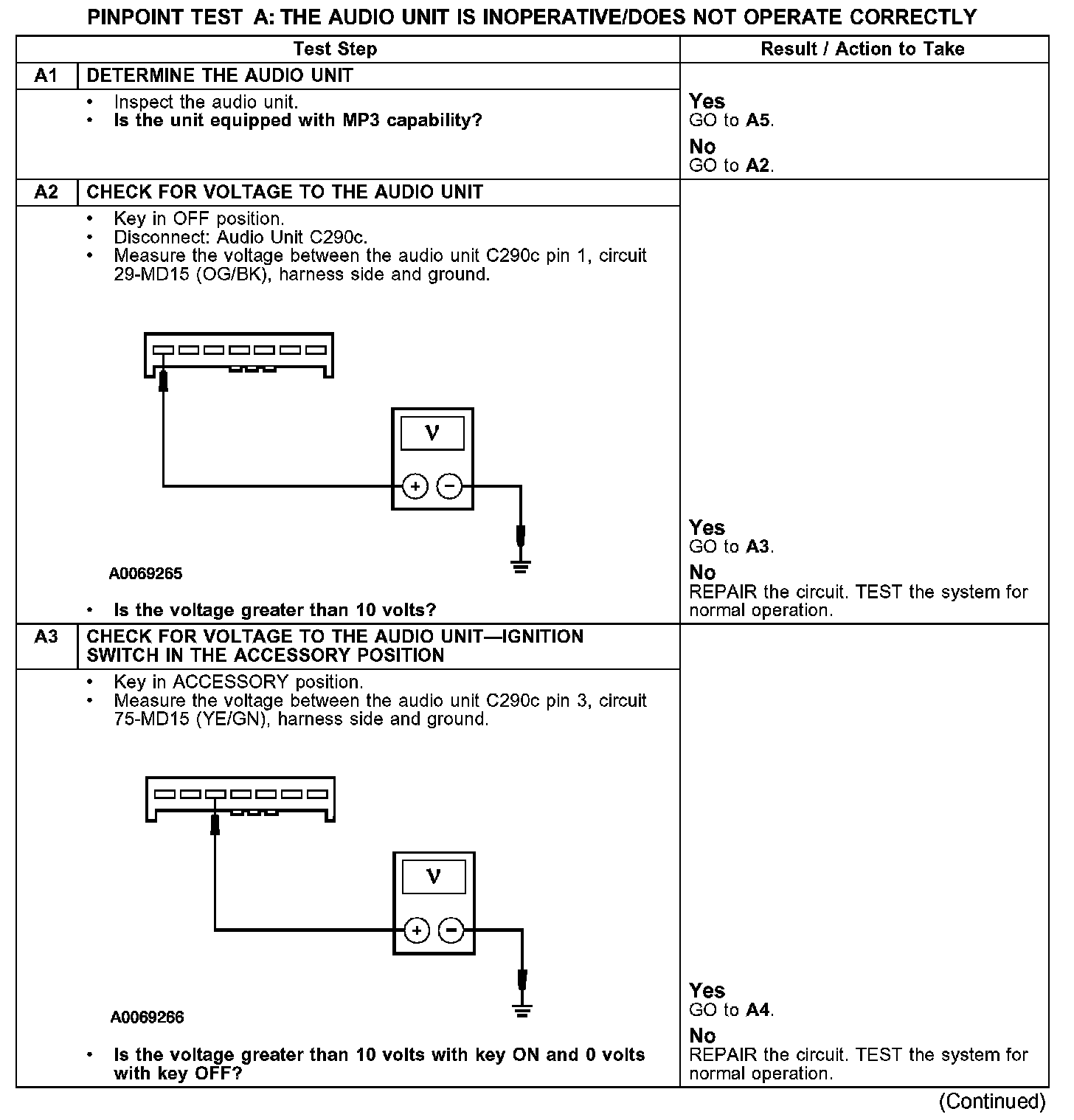

Test A1-A3:

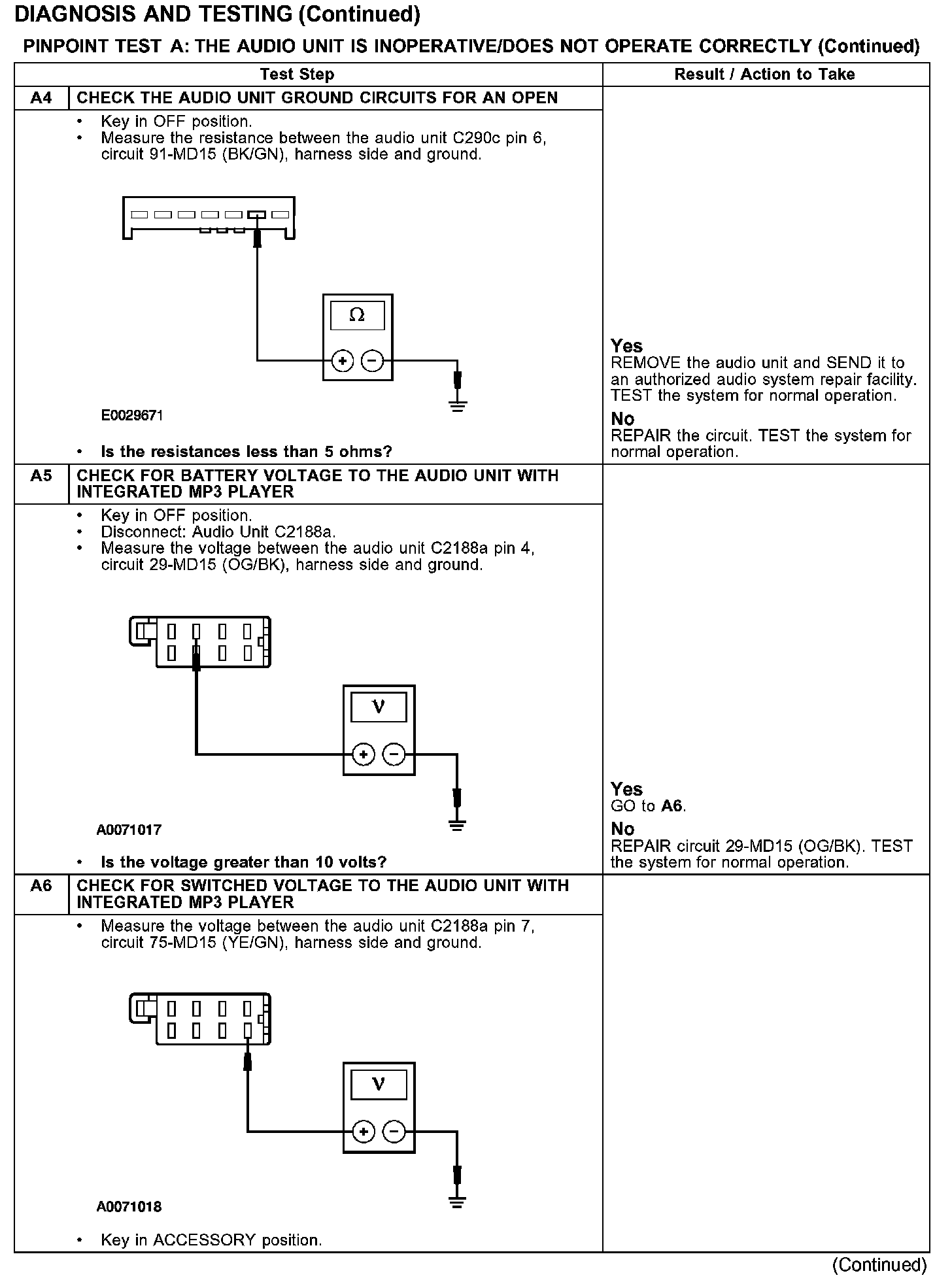

Test A4-A6:

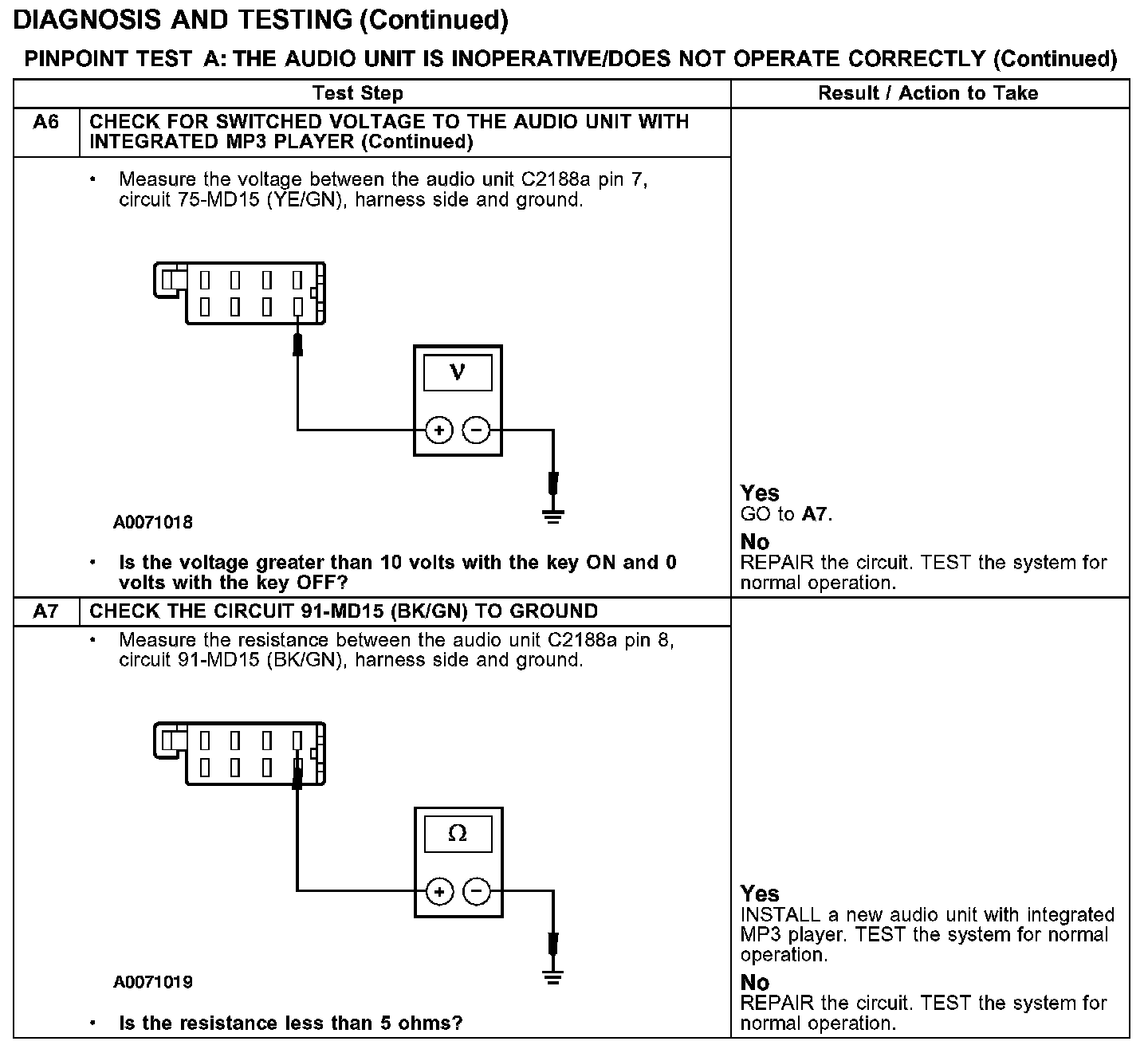

Test A6-A7:
