Test E

PINPOINT TEST E: DISTORTED SOUND FROM ONE OR MORE SPEAKERS (NOT ALL SPEAKERS)

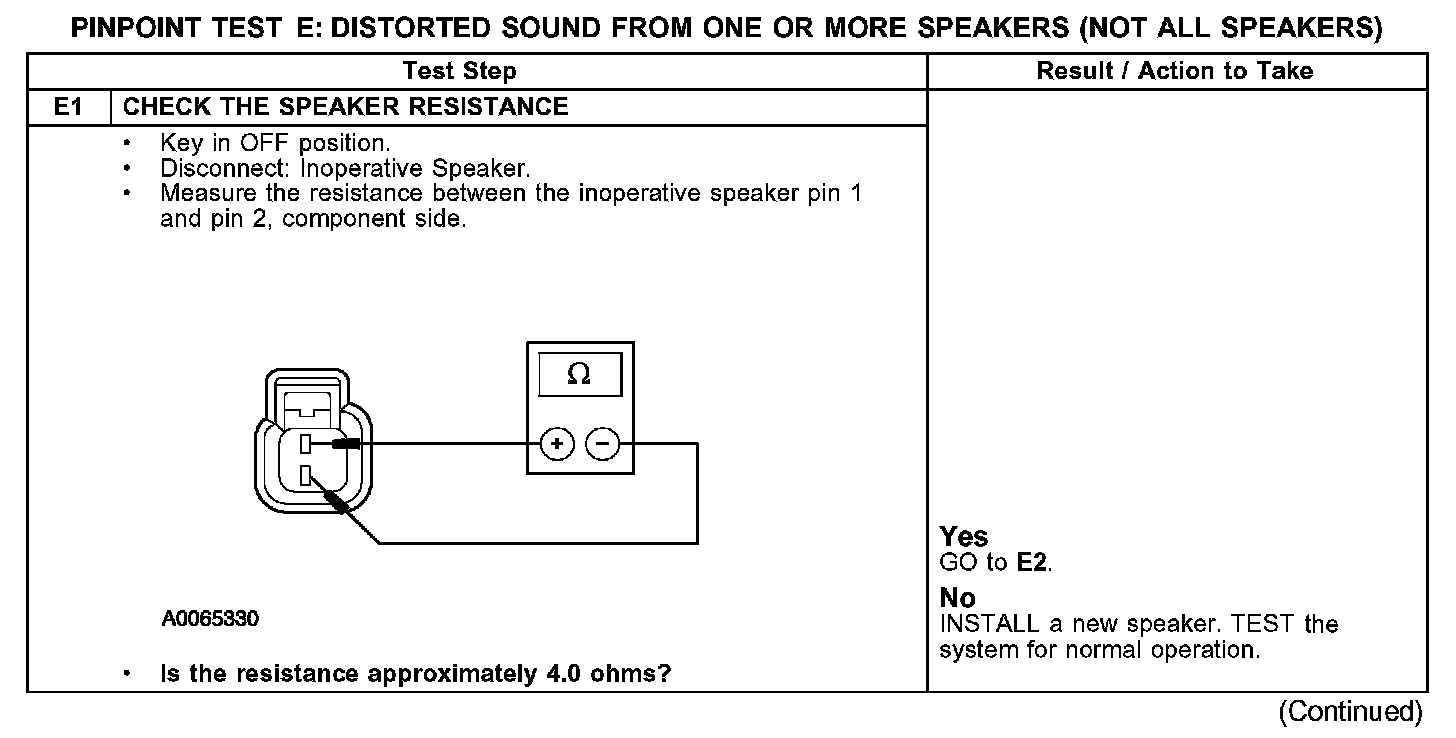

Test E1:

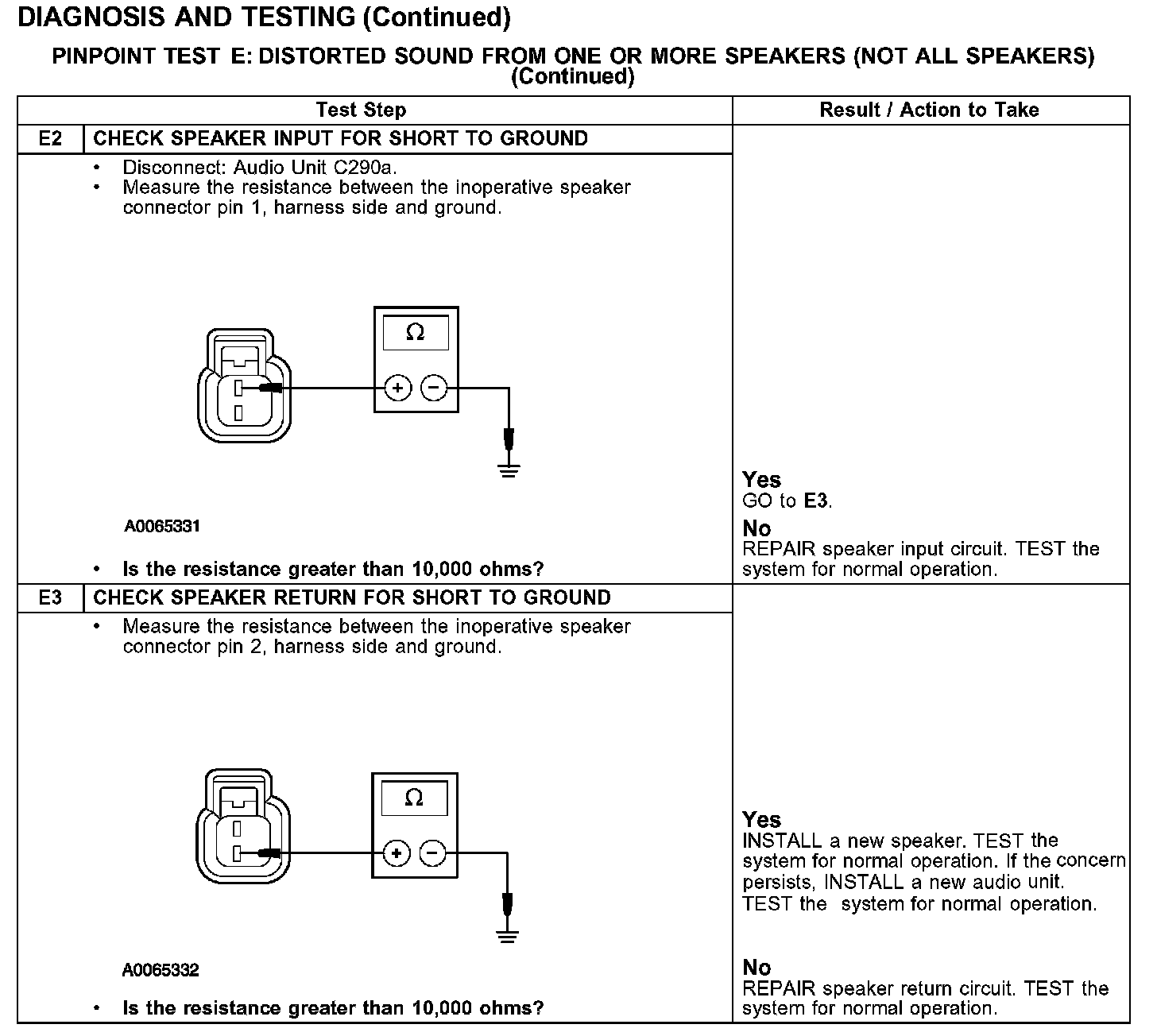

Test E2-E3:
