Rear Bumper Cover - 3-Door/4-Door/5-Door
REAR BUMPER COVER - 3-DOOR/4-DOOR/5-DOORRemoval and Installation
All vehicles

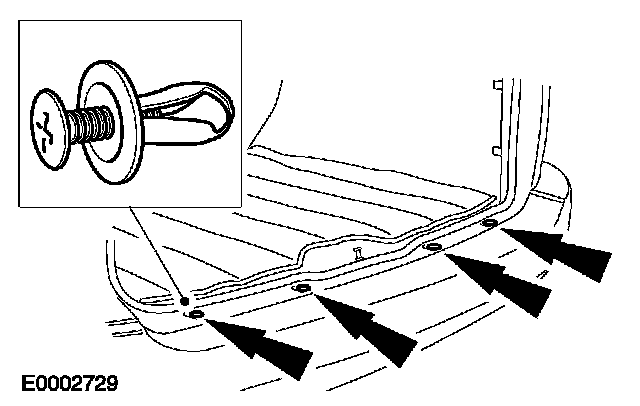

1. Remove the upper pin-type retainers.
2. Raise and support the vehicle.

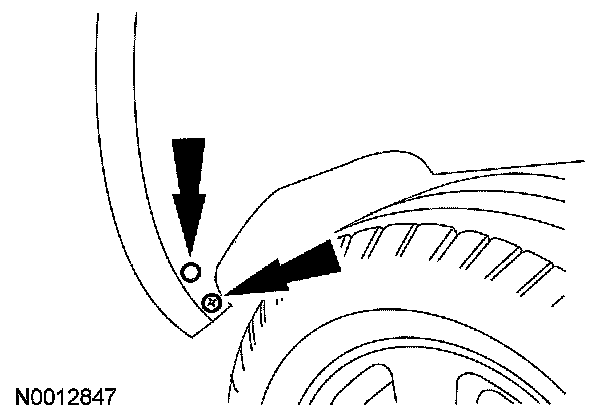

3. Position the splash shield aside.
- Remove the 2 pin-type retainers. (1 each side)
- If equipped, remove the 2 screws. (1 each side)

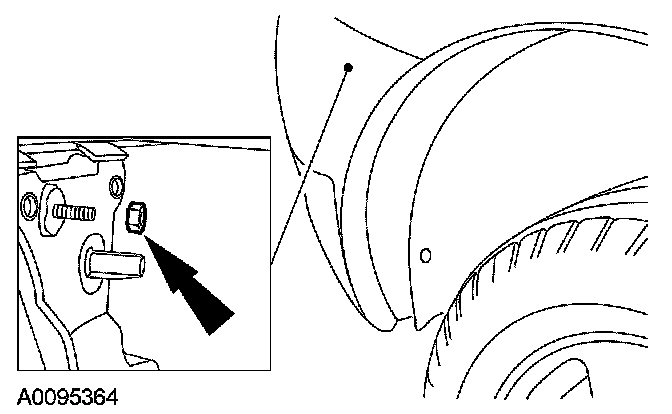

4. Remove the 2 nuts (1 each side).

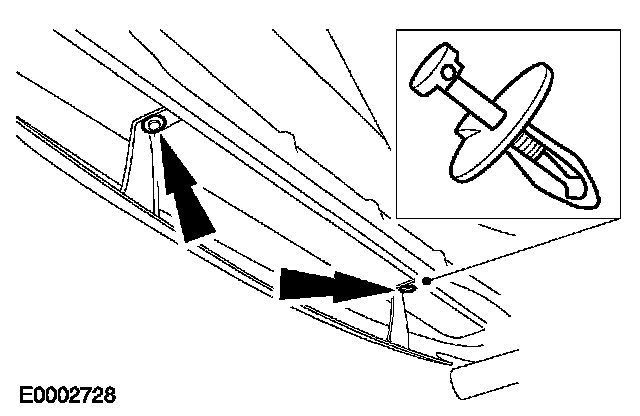

5. Remove the lower pin-type retainers.
6. Remove the 2 lower bracket pin-type retainers (1 each side).
7. Lower the vehicle.
4-door

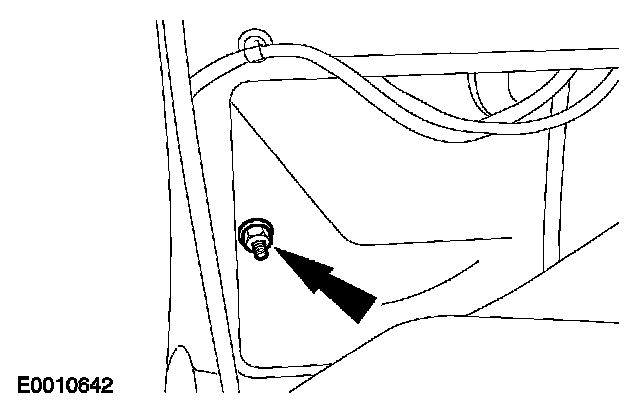

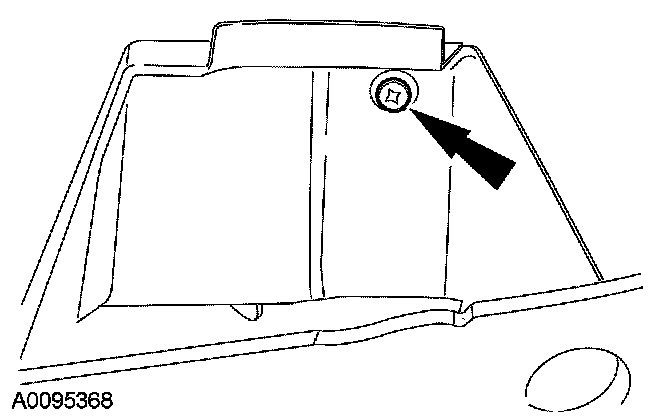

8. Remove the nut (1 each side).
- Disconnect the loadspace trim to access the nut.
All vehicles

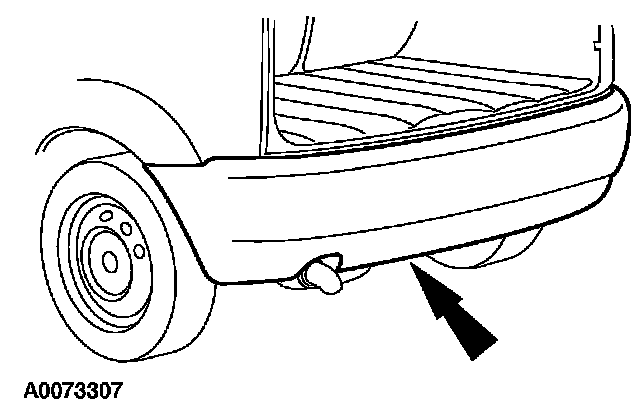

9. Remove the rear bumper cover.
10. To install, reverse the removal procedure.
