Rear Door: Adjustments

DOOR ADJUSTMENT - REAR

NOTE: The door should be adjusted for even and parallel fit with the body opening and the surrounding panels.

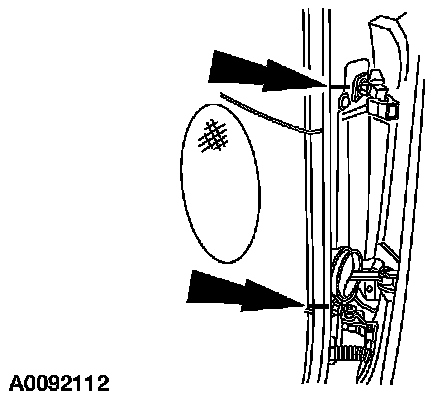

1. Mark the position of the rear door hinge to use as a reference point.

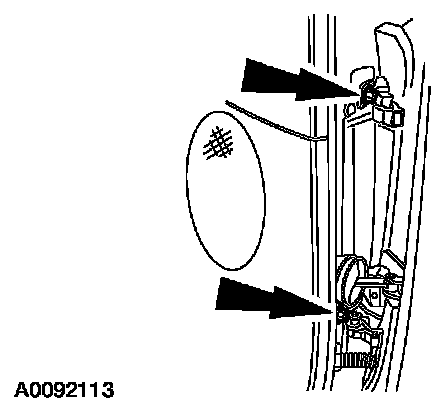

2. Loosen the two rear door hinge-to-rear door bolts just enough to permit movement of the door.

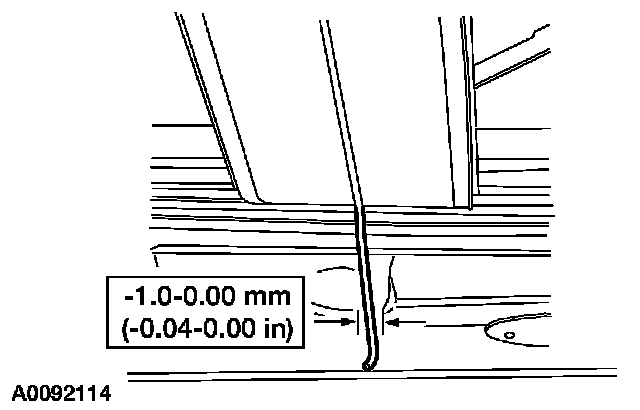

3. Adjust the rear door alignment to the specifications.

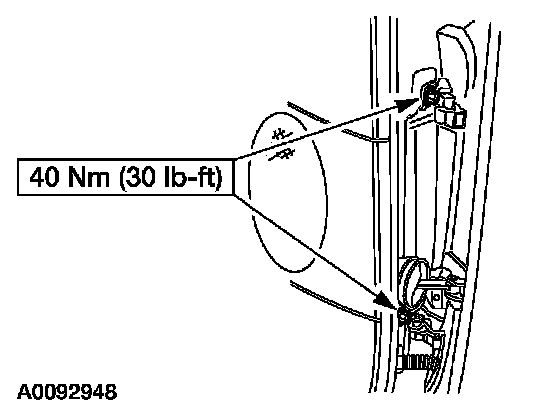

4. Tighten the rear door hinge-to-rear door bolts.
