B-Pillar Trim Panel

B-PILLAR TRIM PANEL

REMOVAL

4-door, 5-door and wagon

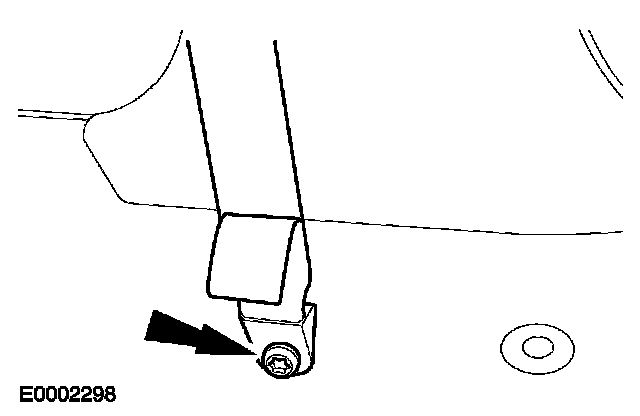

1. Detach the safety belt lower anchor.
- Remove the safety belt bolt from the anchor.

3-door







2. Detach the safety belt lower anchor.

All vehicles

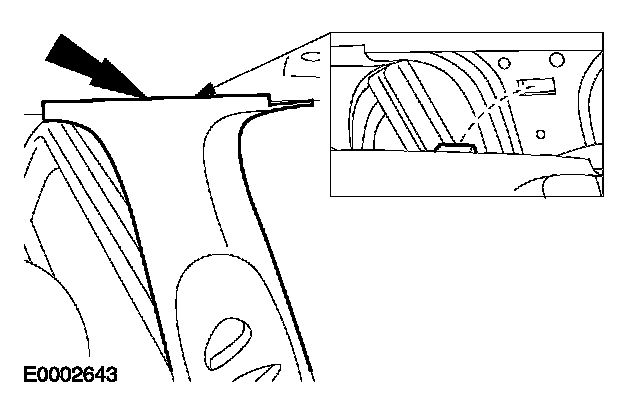

3. Remove the B-pillar trim panel retaining push pin (if equipped).







4. Remove the B-pillar trim panel.

INSTALLATION

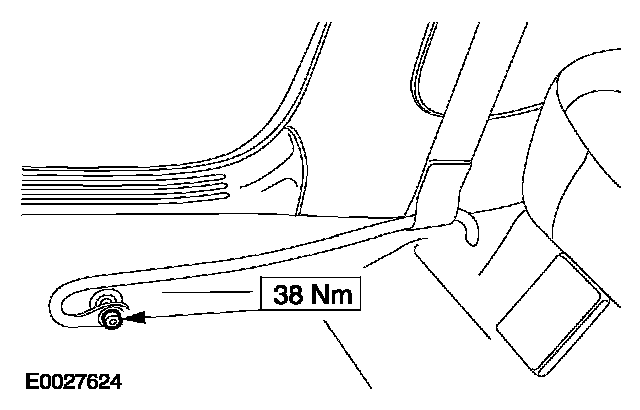

3-door

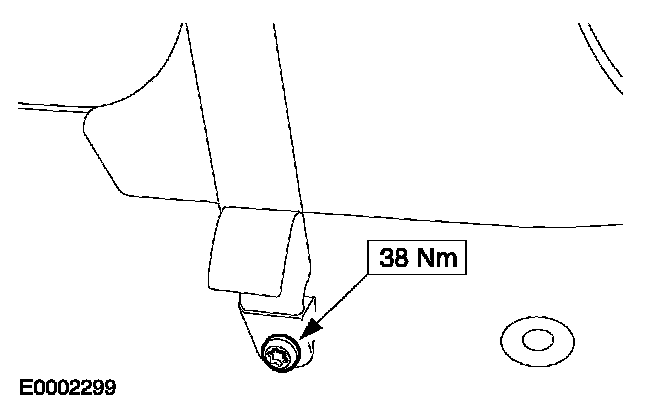

4-door, 5-door and wagon







1. NOTE: To aid installation, the safety belt height adjuster should be at the lowest position.

To install, reverse the removal procedure.
