3-Door/5-Door/Wagon

C-PILLAR TRIM PANEL - 3-DOOR/5-DOOR/WAGON

REMOVAL

All Vehicles
1. Remove the rear parcel shelf.
2. Fold down the rear backrests.

Wagon

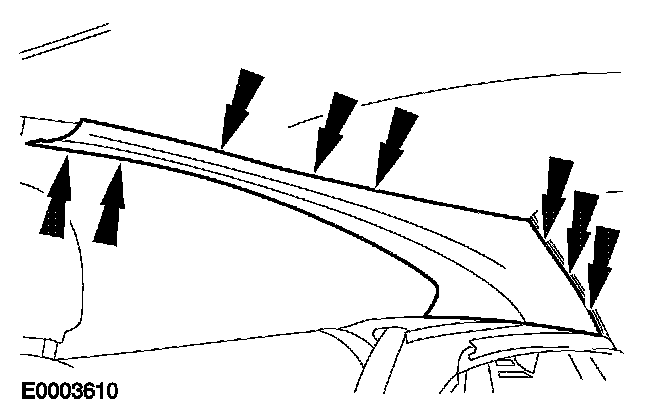

3. Remove the safety belt retractor trim panel.

Hatchback

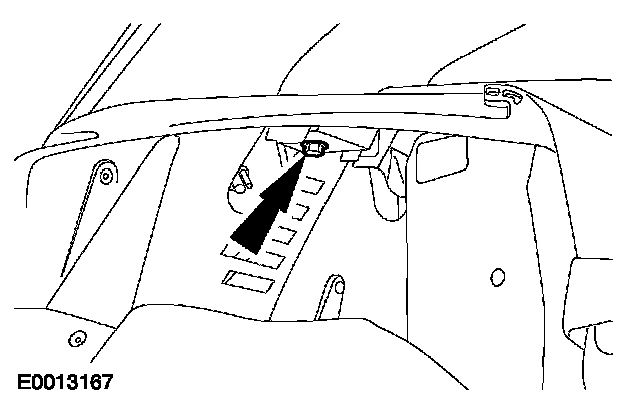

4. Remove the retaining clip.

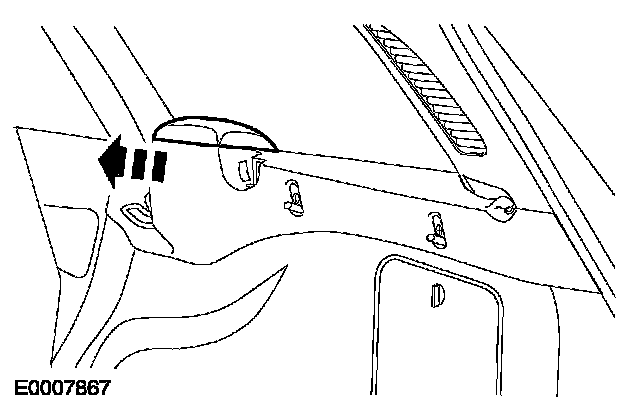

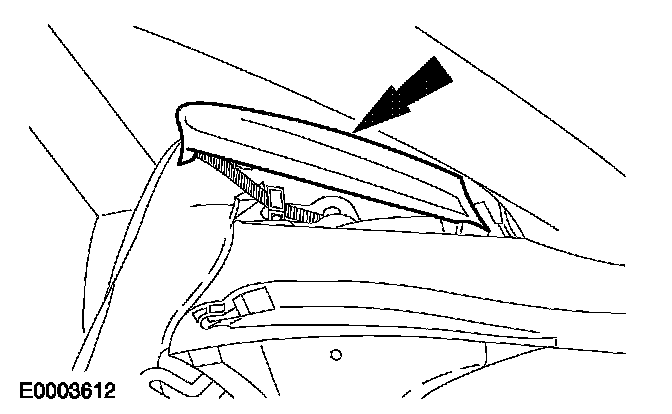

5. Remove the safety belt retractor trim panel.







6. NOTE: Disconnect the interior light electrical connector (if equipped).

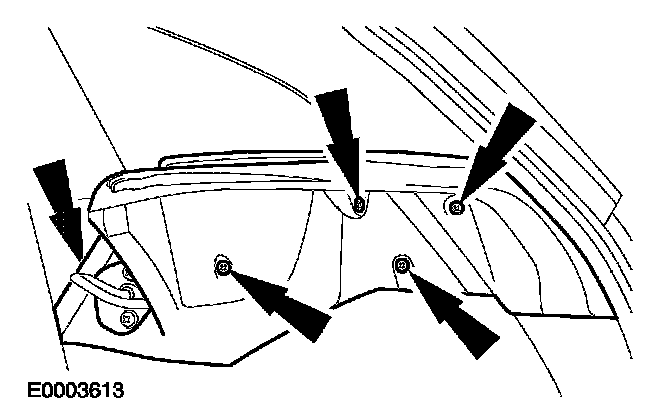

Remove the rear parcel shelf support.

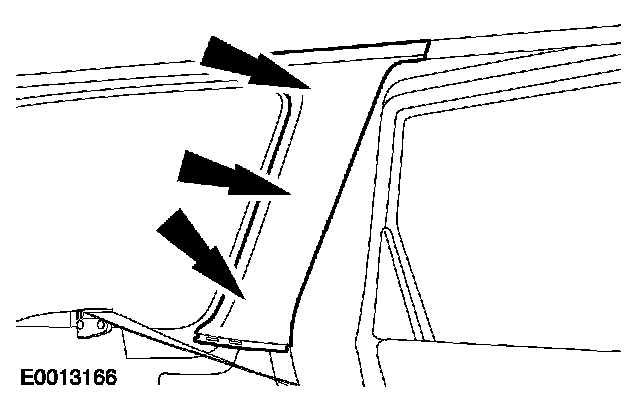

7. Remove the C-Pillar trim panel.

3-door Vehicles

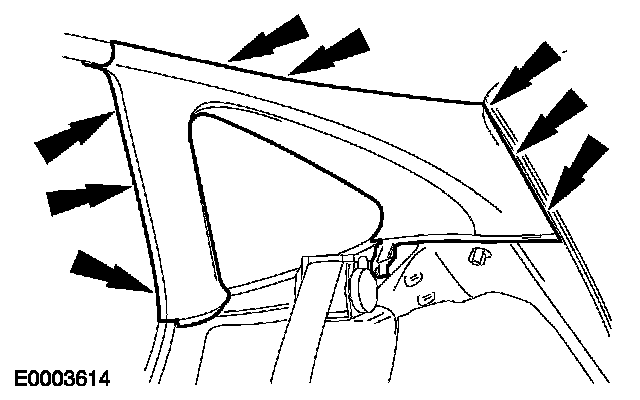

8. Remove the C-pillar trim panel.

Wagon

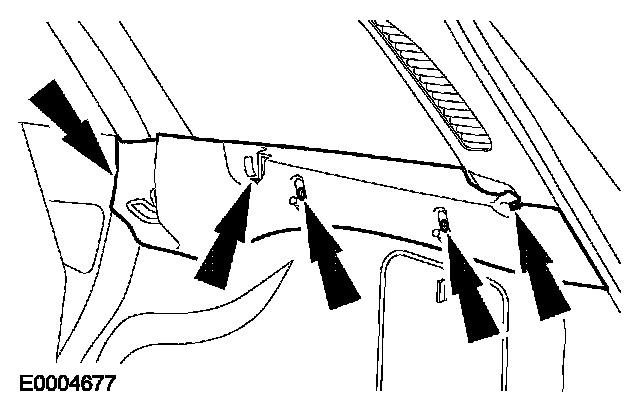

9. Remove the load space compartment trim panel.







10. Remove the C-pillar trim panel.

INSTALLATION
1. To install, reverse the removal procedure.
