4-Door

C-PILLAR TRIM PANEL - 4-DOOR

REMOVAL
1. Open the luggage compartment lid and release the rear seat backrest latches.
2. Fold down the rear seat backrests.

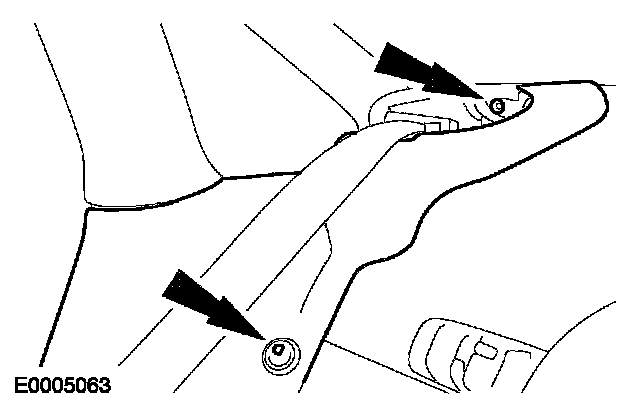

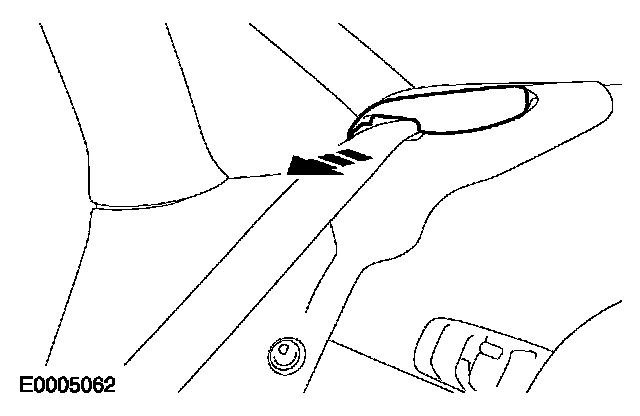

3. Remove the rear safety belt retractor trim panels.







4. Remove the C-pillar lower trim panels.

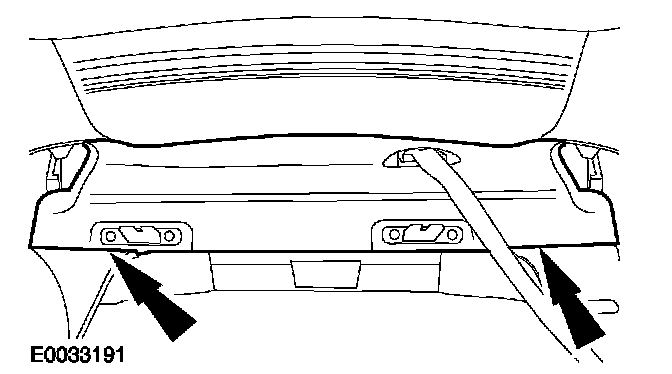

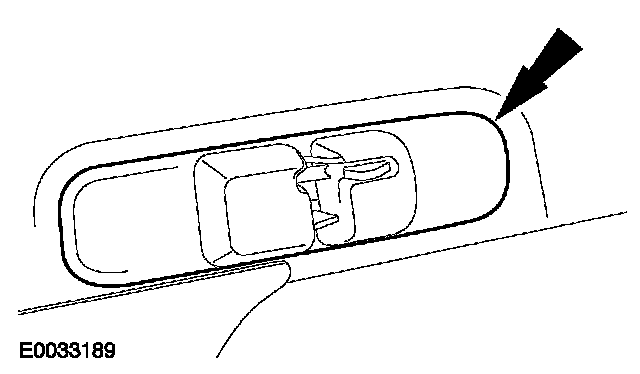

5. Remove the rear seat backrest latch covers.

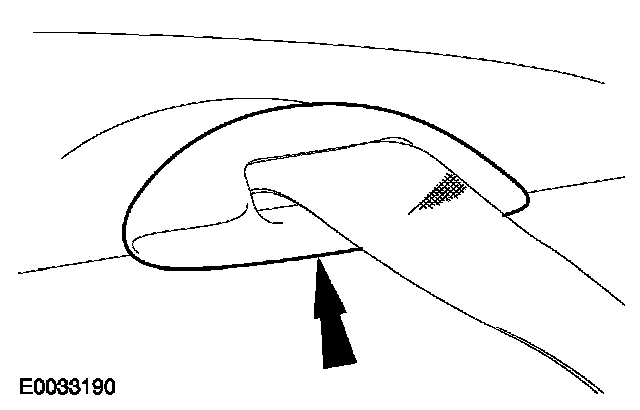

6. Detach the rear center safety belt retractor cover.







7. Detach the rear parcel shelf from both rear and center safety belt retractors and position it to one side.

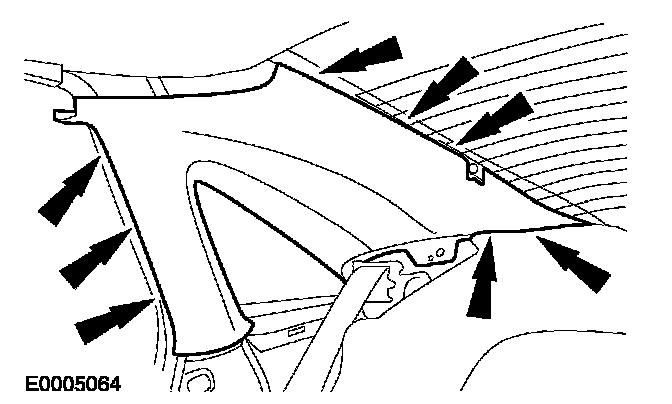

8. Remove the C-pillar trim panel.

INSTALLATION
1. To install, reverse the removal procedure.
