Exterior Mirror Cover

EXTERIOR MIRROR COVER

REMOVAL

NOTE: This procedure is for SVT vehicles only.

1. Remove the exterior mirror.
2. Remove the exterior mirror glass.

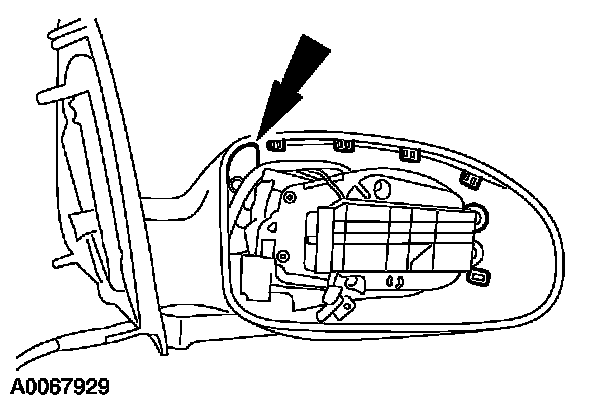

3. Press the exterior mirror cover in the downward position and remove the exterior mirror cover.

INSTALLATION

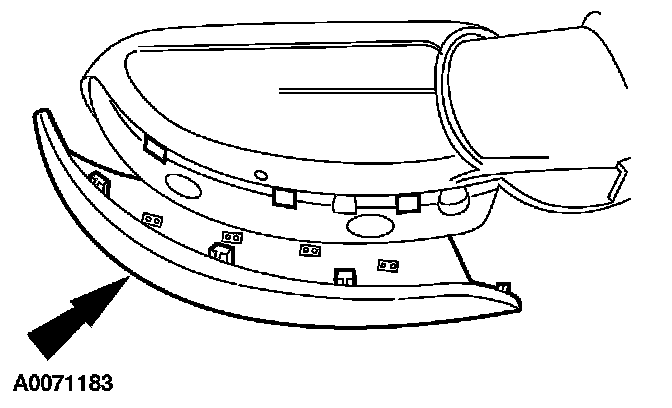

1. NOTE: All four locating tabs need to be seated to insure correct installation.

Install the exterior mirror cover.

2. Install the exterior mirror glass.
3. Install the exterior mirror.
