Exterior Mirror Glass

EXTERIOR MIRROR GLASS

REMOVAL

NOTE: This procedure is for SVT vehicles only.

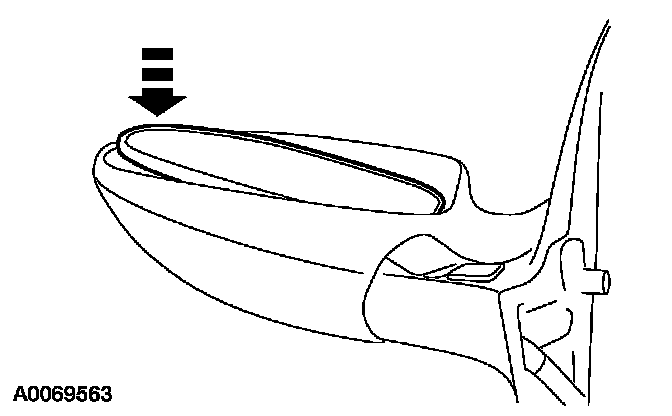

1. Press down on the exterior mirror glass to position it downwards.

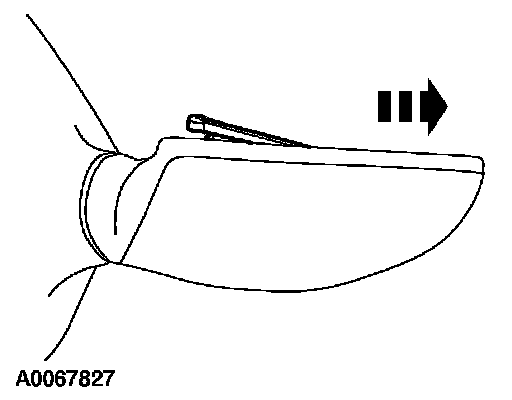

2. NOTE: While keeping the exterior mirror glass in the downward position, pull the exterior mirror glass in the outboard position.

Release the exterior mirror glass.







3. CAUTION: Be sure not to damage the wiring, damper or spring assembly.

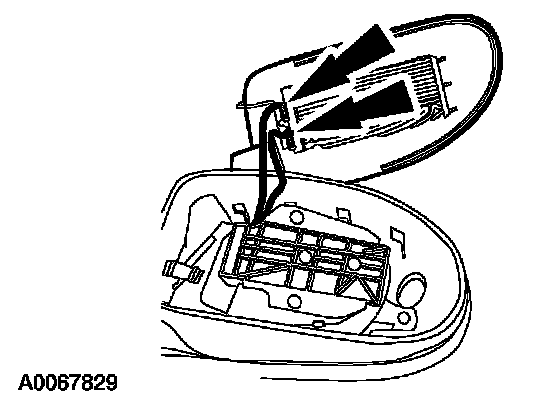

Disconnect the electrical connectors and remove the exterior mirror glass.

INSTALLATION

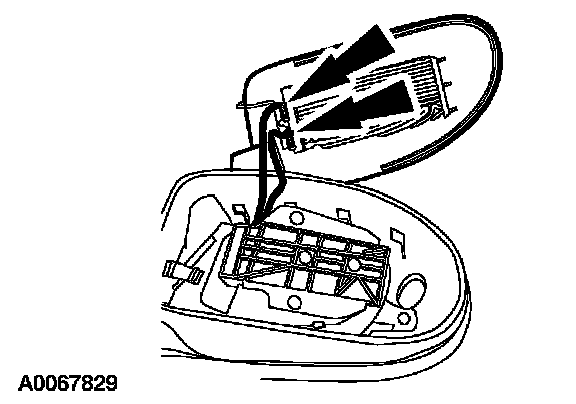

1. NOTE: Place the wires under the mirror motor for correct mirror operation.

Connect the exterior mirror glass electrical connectors.

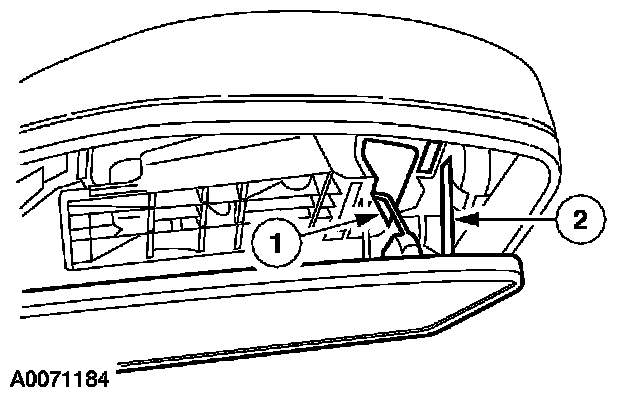

2. NOTE: Place the vibration spring in front of the mirror case reinforcement wall and place the vibration damper blade in the mirror case reinforcement slot.

Install the mirror glass.
1 Place the vibration spring into position.
2 Insert the vibration damper blade into the reinforcement slot.

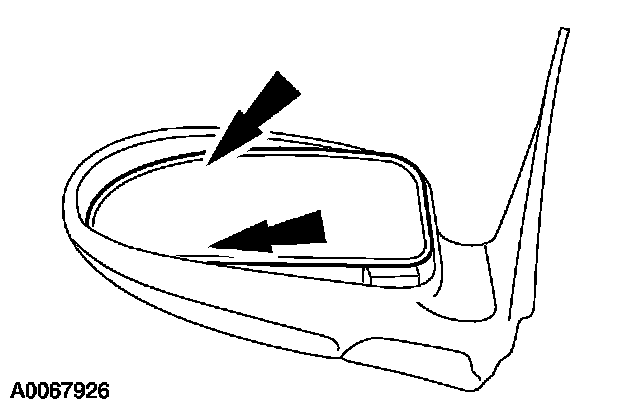

3. Apply even pressure on both sides of the exterior mirror glass.
- The exterior mirror glass will lock into the exterior mirror motor.







4. NOTE: Make sure the exterior mirror glass is locked onto the exterior mirror motor.

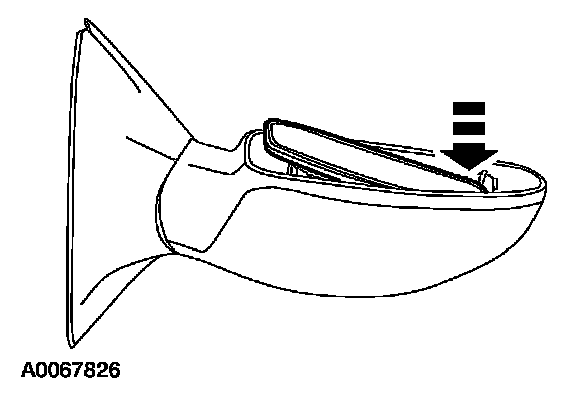

Apply slight pressure on the exterior mirror glass.
