Diesel Data: Automotive Repair

Home >> Ford >> 2004 >> Focus L4-2.0L DOHC VIN 5 >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Testing and Inspection >> Pinpoint Tests >> Test A

Test A

PINPOINT TEST A: THE MIRRORS ARE INOPERATIVE

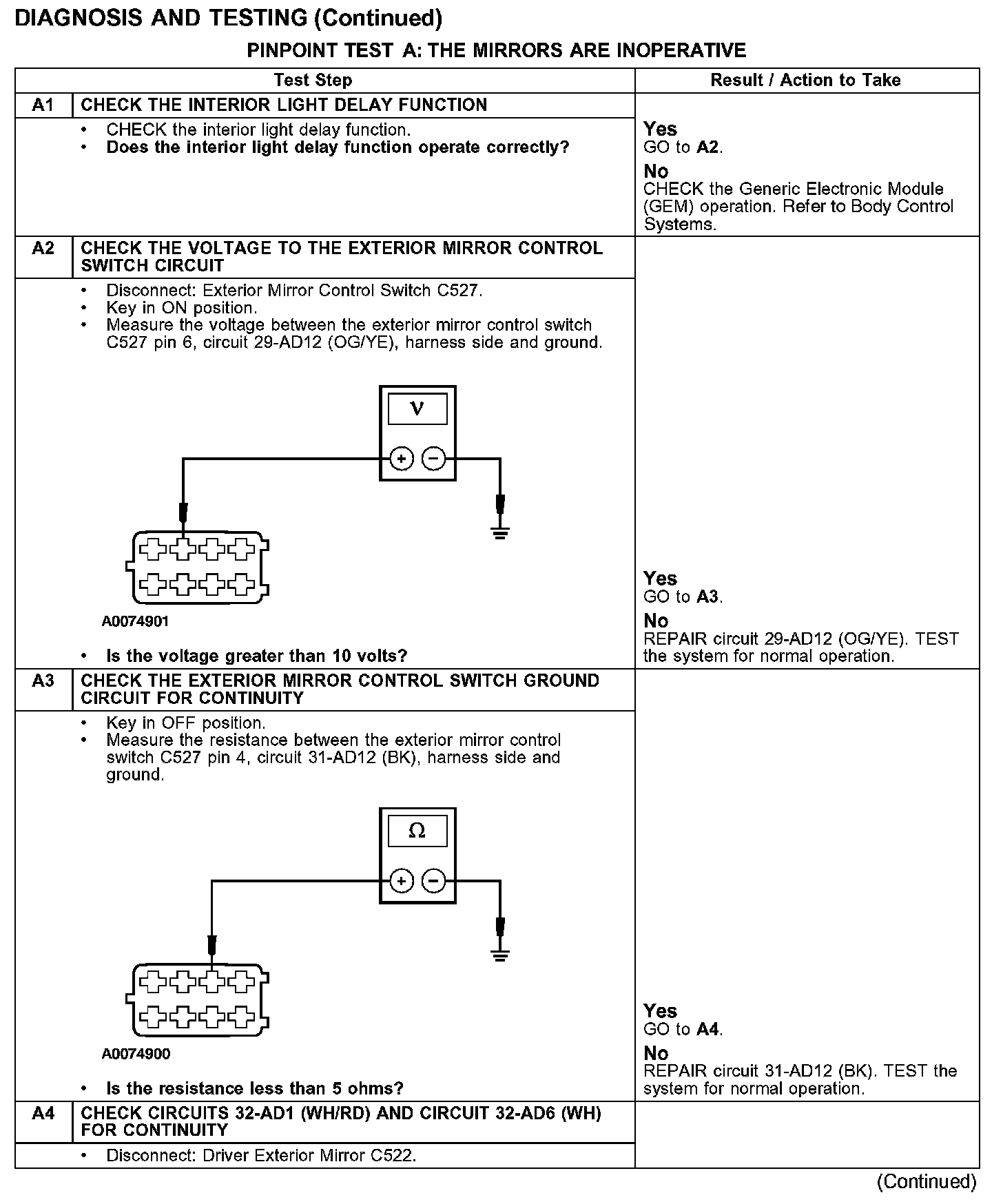

Test A1-A4:

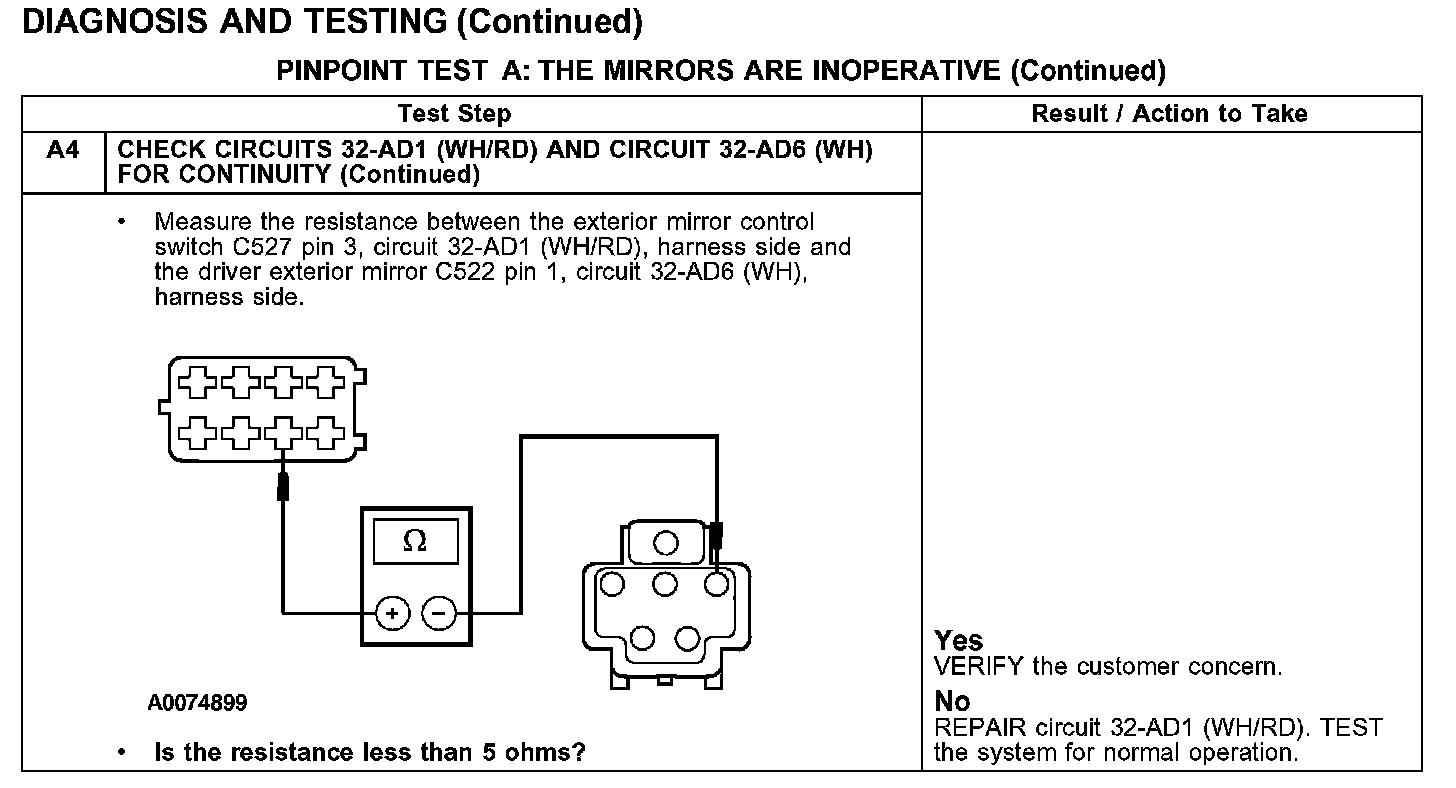

Test A4 Continued:
