Roof Opening Panel

ROOF OPENING PANEL

REMOVAL

1. NOTE: Make sure the roof opening panel is in the closed position.

Remove the headliner.

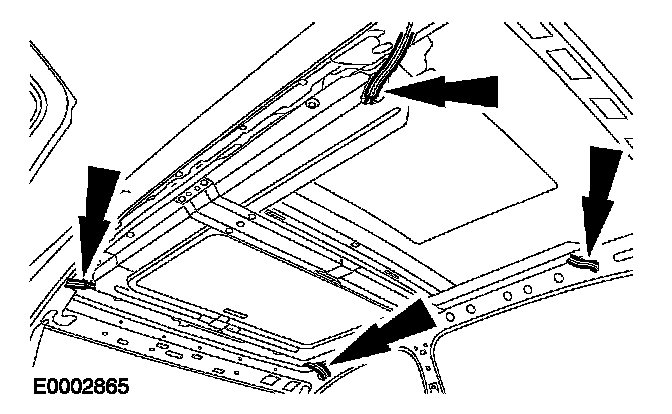

2. Detach the drain hoses from the roof opening panel.

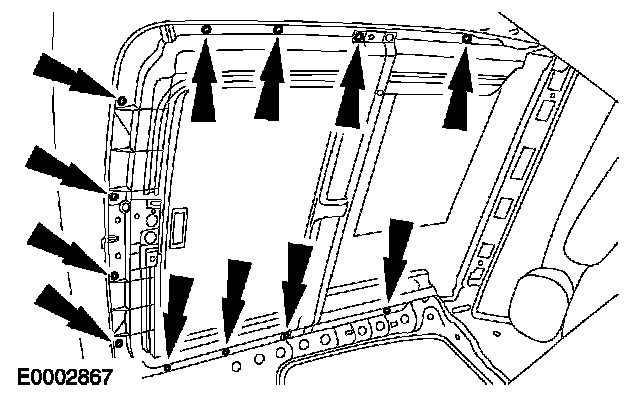

3. Detach the roof opening panel from the roof panel (12 bolts).







4. Remove the roof opening panel.

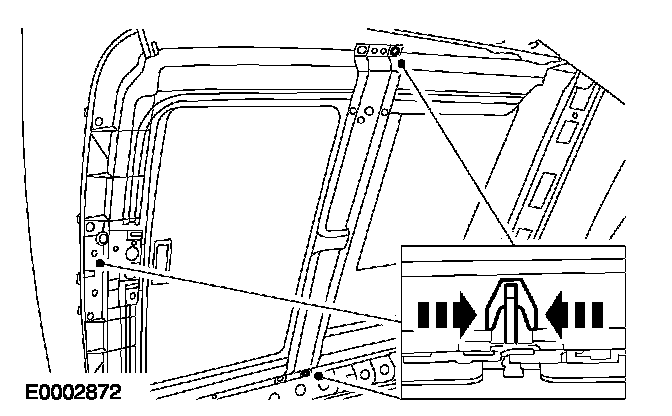

- With the aid of another technician, compress the legs of the retaining clips and lower the roof opening panel.

INSTALLATION

1. NOTE:
- The roof opening panel must be correctly located on the retaining clips before tightening the retaining bolts.
- Do not fully tighten the retaining bolts at this stage.

Install the roof opening panel.

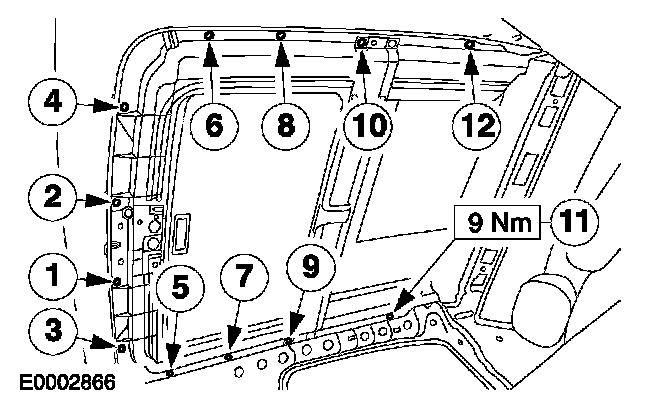

2. Tighten the retaining bolts in the sequence shown.

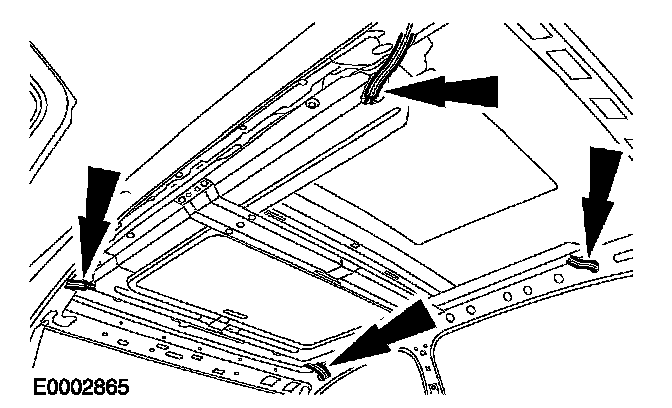

3. Attach the drain hoses to the roof opening panel.
4. Install the headliner.
