Roof Opening Panel Front Drain Hose

ROOF OPENING PANEL FRONT DRAIN HOSE

General Equipment
Suitable draw cord with a minimum length of two meters

REMOVAL
1. Remove the headliner.

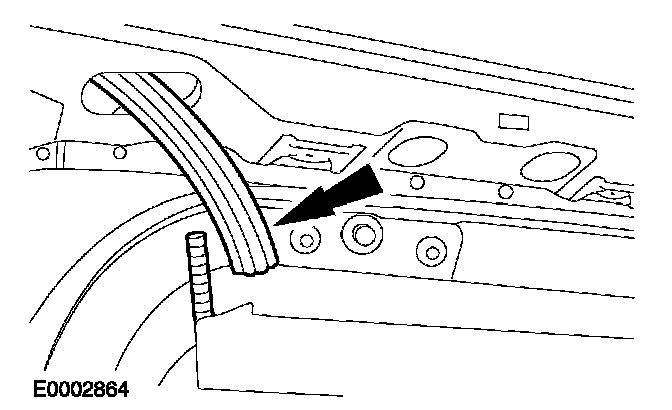

2. Detach the drain hose from the roof opening panel.

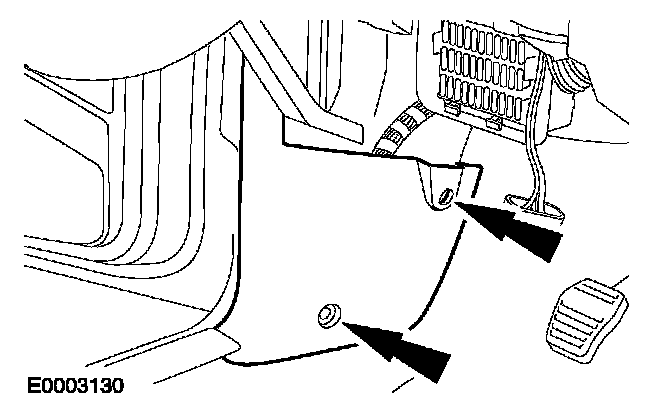

3. Detach the A-pillar lower trim panel from the A-pillar.







4. NOTE: Left-hand side drain hose.

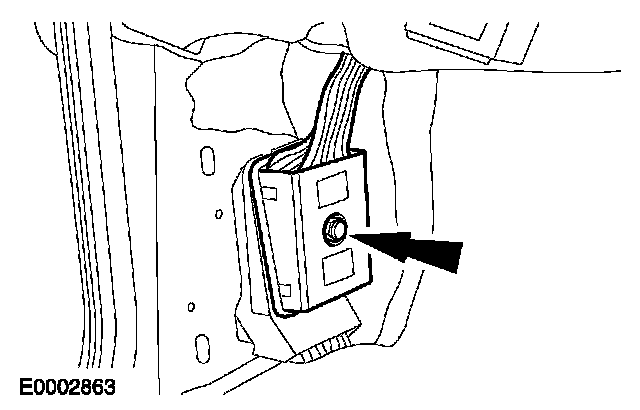

Disconnect the auxiliary junction box electrical connector.
- Remove the bolt.







5. NOTE: Left-hand side drain hose.

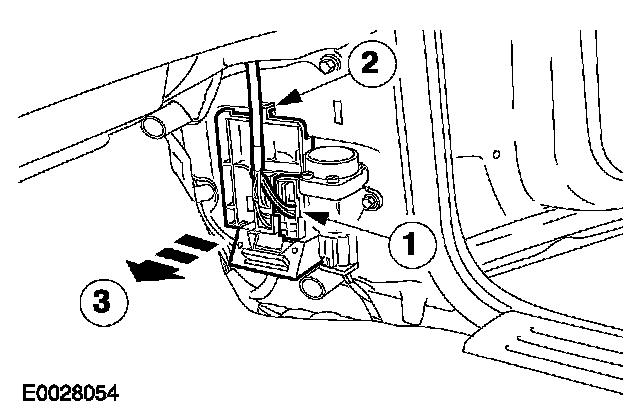

Detach the auxiliary junction box from the A-pillar.
1 Depress the clip.
2 Detach the junction box.







6. NOTE: Right-hand side drain hose.

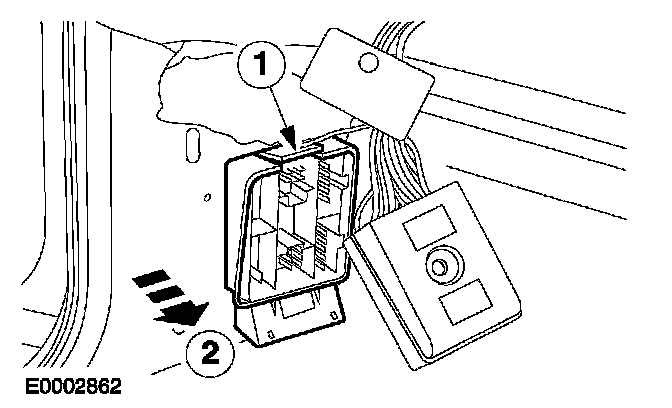

Detach the auxiliary junction box from the A-pillar.
1 Disconnect the electrical connector.
2 Depress the clip.
3 Detach the junction box.

7. Attach a suitable length of draw cord to the roof opening panel end of the drain hose, and secure the free end of the cord to the vehicle.







8. Remove the front drain hose.
- Pull the drain hose down through the A-pillar.

INSTALLATION
1. To install, reverse the removal procedure.
