4-Door/5-Door/Wagon

ROOF OPENING PANEL REAR DRAIN HOSE - 4-DOOR/5-DOOR/WAGON

REMOVAL
1. Remove the headliner.







2. Detach the C-pillar lower trim panel from the load space trim panel.

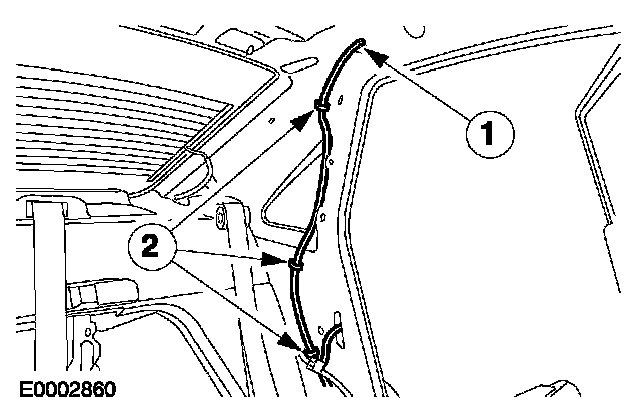

3. NOTE: 4-door shown.

Remove the rear drain hose.
1 Detach the drain hose from the roof opening panel.
2 Detach the drain hose from the clips.

INSTALLATION
1. To install, reverse the removal procedure.
