Home >> Ford >> 2004 >> Focus L4-2.0L DOHC VIN 5 >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Testing and Inspection >> Pinpoint Tests >> Test A

Test A

PINPOINT TEST A: THE ROOF OPENING PANEL DOES NOT OPEN OR CLOSE

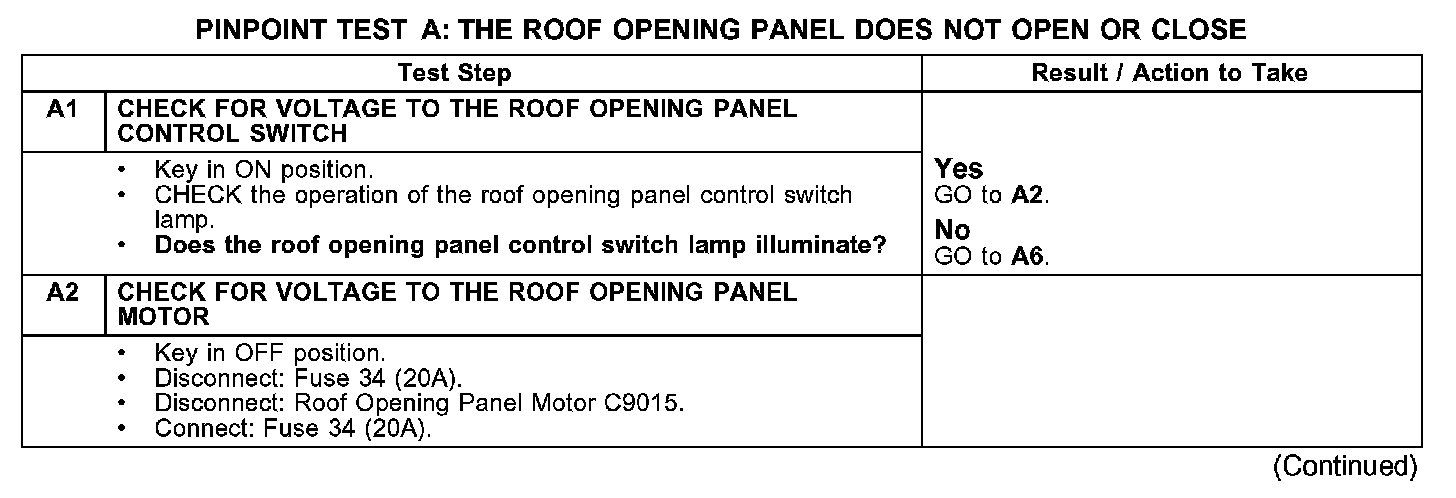

Test A1-A2:

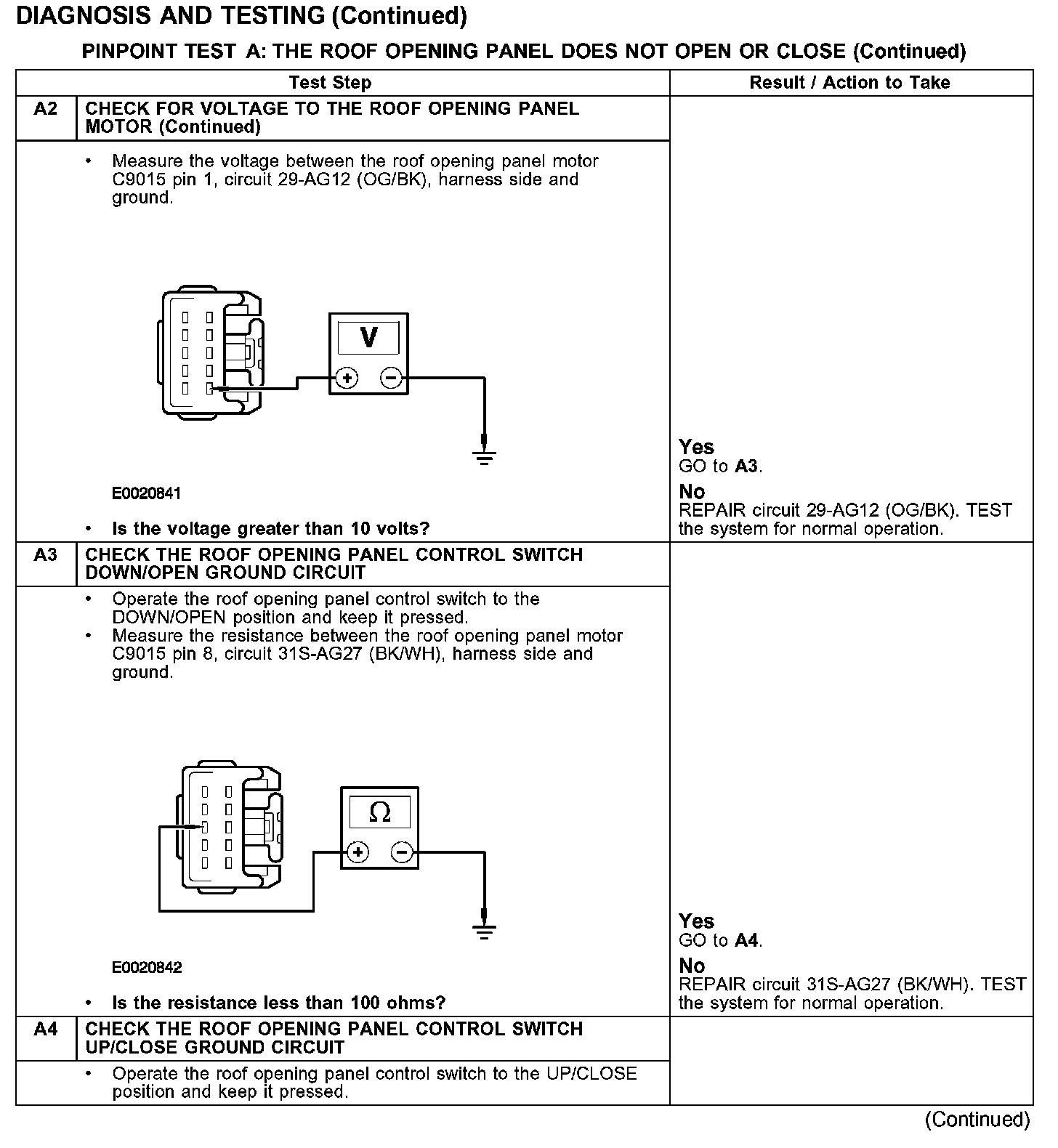

Test A2-A4:

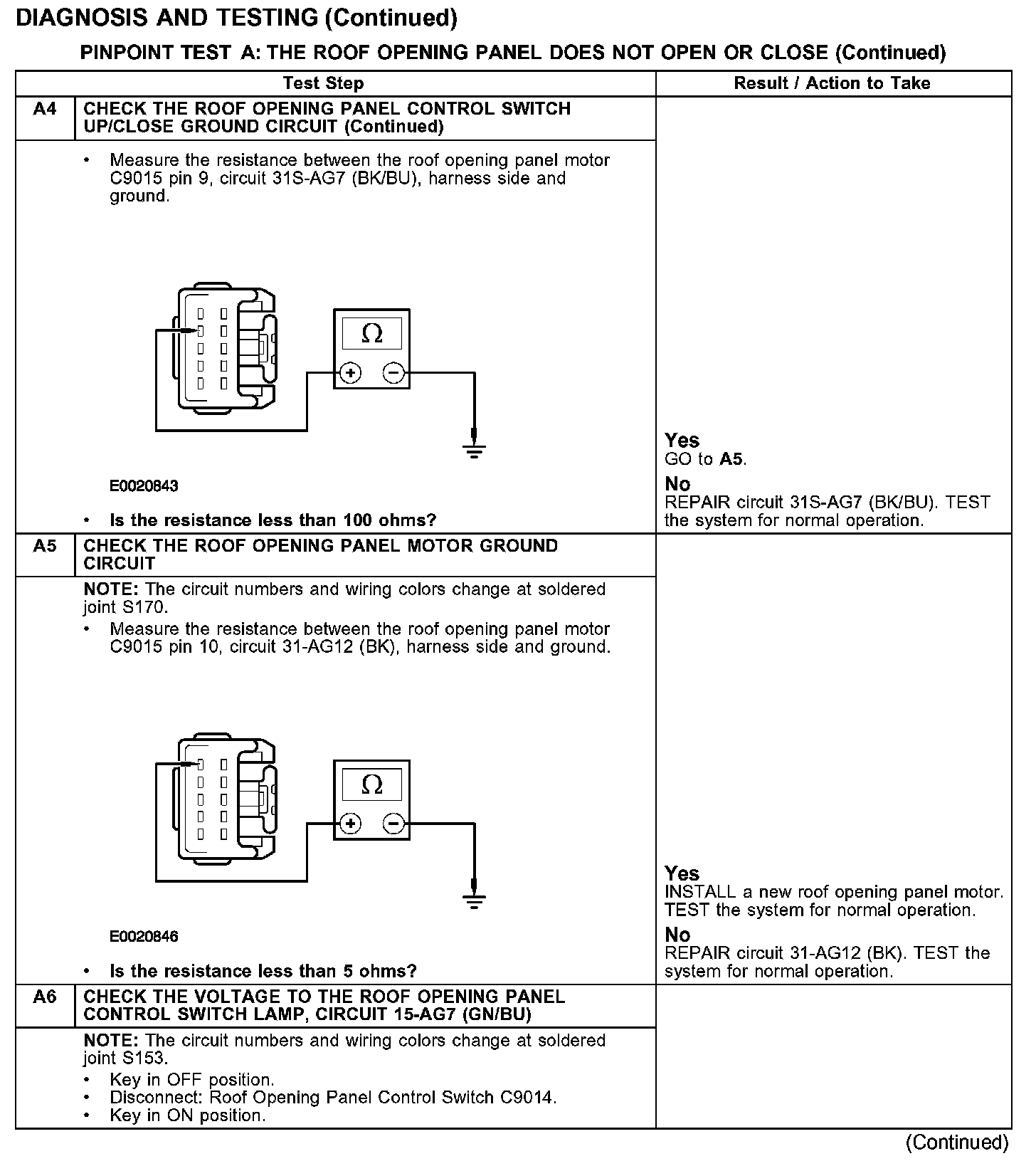

Test A4-A6:

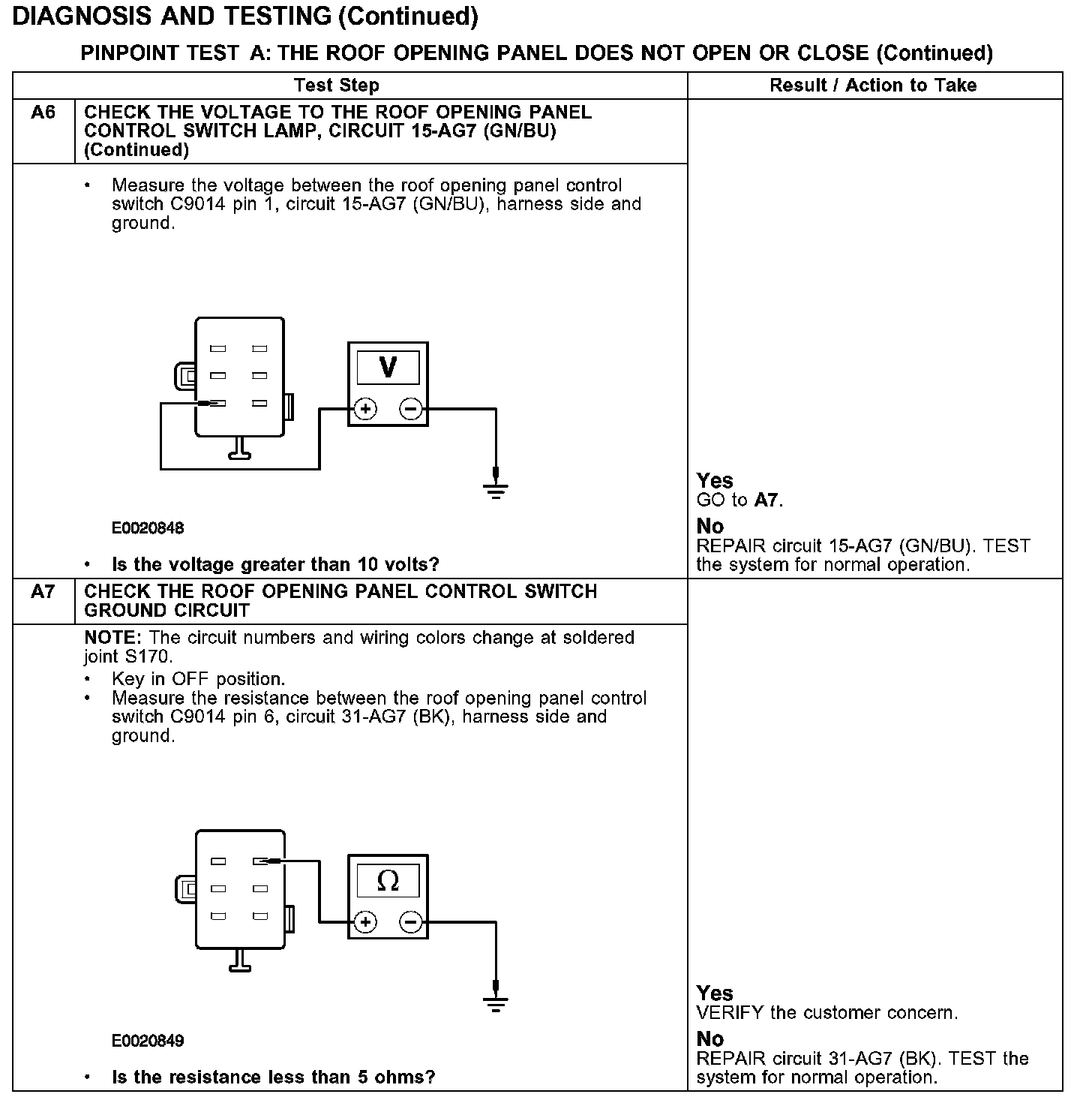

Test A6-A7:
