Rear Seat Backrest

REAR SEAT BACKREST

REMOVAL
1. Fold the rear seat cushion forwards.







2. CAUTION: Make sure a webbing retainer is fitted at least 200 mm towards the safety belt retractor from the webbing stop.

Install the safety belt webbing retainer.

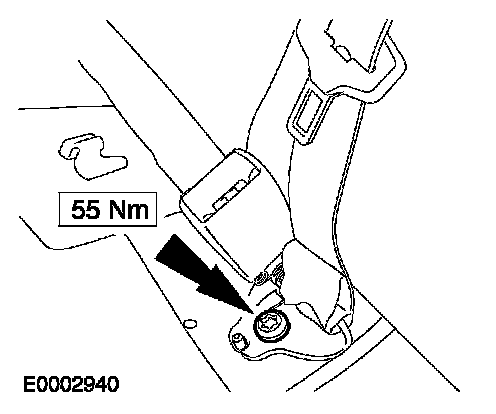

3. Detach the rear center safety belt buckle.
4. Fold the rear seat backrest forwards.

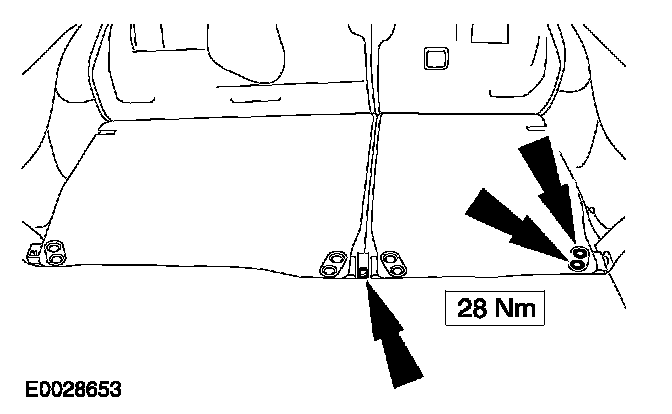

5. Remove the rear seat backrest.
- Remove the outer retaining bolts.
- Remove the center hinge locking plate retaining bolt.

INSTALLATION

1. CAUTION: Check for correct operation of the center safety belt retractor.

To install, reverse the removal procedure.
