Brake Disc Shield
Brake Disc ShieldRemoval
All vehicles
1. Remove the wheel hub.
Vehicles with anti-lock brakes

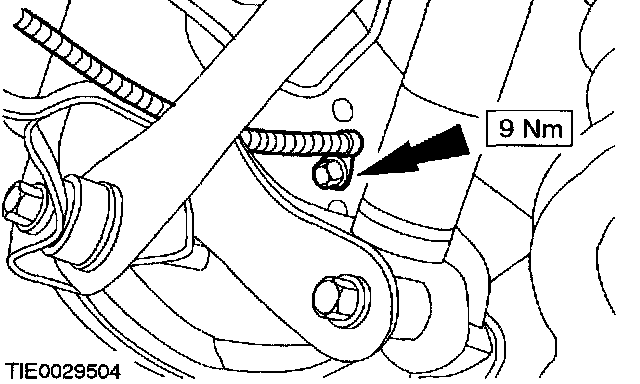

2. Disconnect the rear wheel speed sensor.
All vehicles

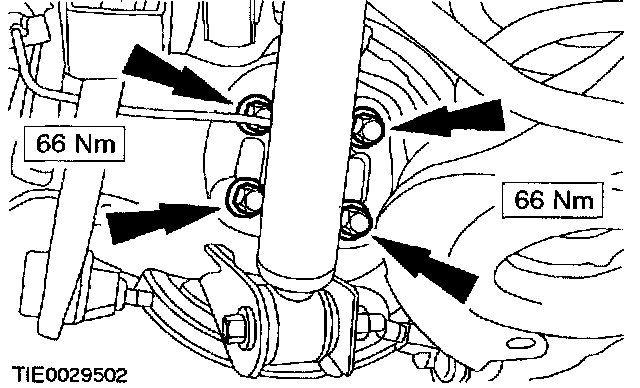

3. Remove the wheel spindle.
4. Remove the brake disc shield.
^ Drill out the rivets.
Installation
1. To install, reverse the removal procedure.
