Cruise Control Servo Cable: Service and Repair

SPEED CONTROL CABLE

REMOVAL







1. Remove the dust cover from the throttle body.

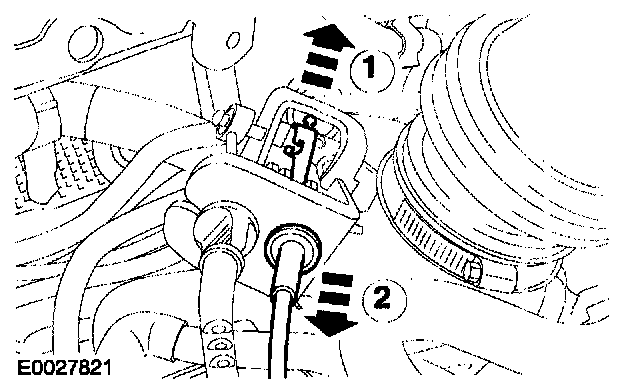

2. Remove the speed control cable.
1 Disconnect the inner cable from the throttle body.
2 Detach the speed control cable from the throttle body.

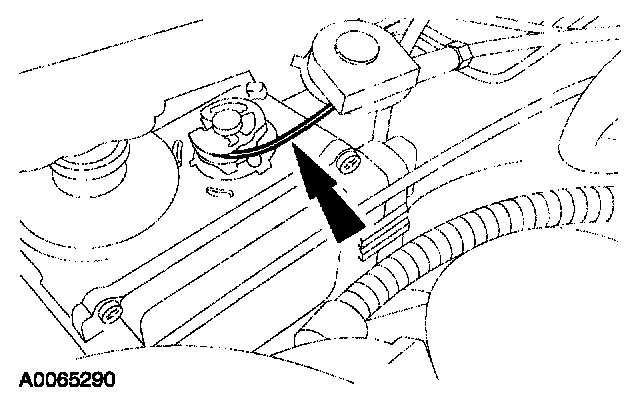

3. Remove the speed control cable from the clip.

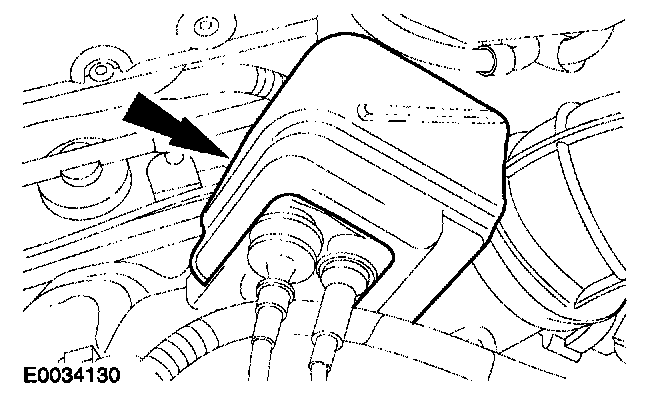

4. Remove the speed control actuator cable cover.







5. Disconnect the speed control cable from the speed control actuator pulley.

INSTALLATION

1. NOTE: Make sure downward pressure is applied to the speed control actuator cable cover prior to rotating clockwise.

To install, reverse the removal procedure.
