SVT

Radiator - SVT

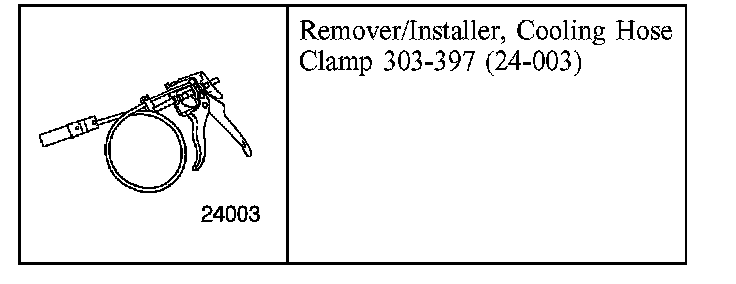

Special Tool(s)

Removal
1. Drain the cooling system.

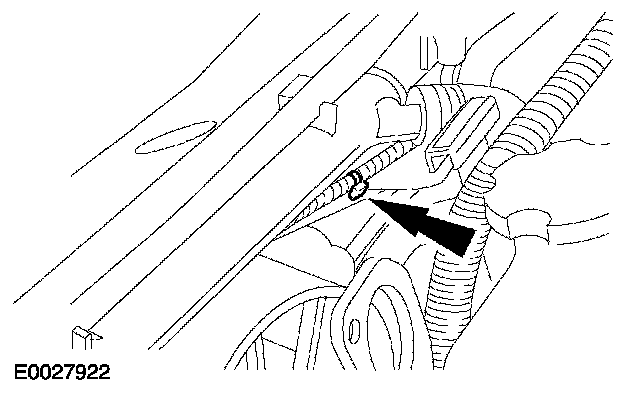

2. Detach the wiring harness retaining clip from the cooling fan shroud.
3. Raise and support the vehicle.





4. Detach and support the air conditioning condenser.

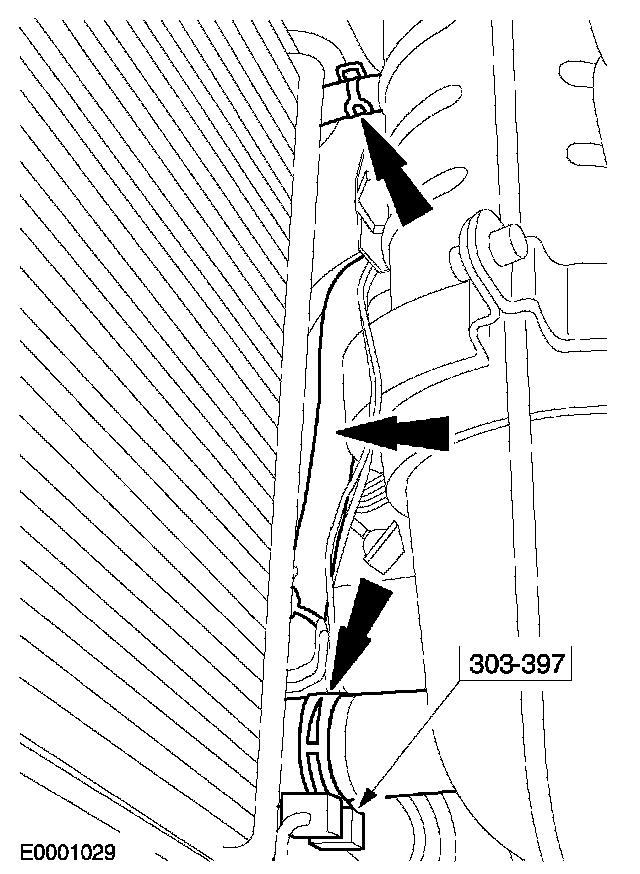

5. Using the special tool, disconnect the radiator upper hose (cooling fan motor and shroud shown removed for clarity).

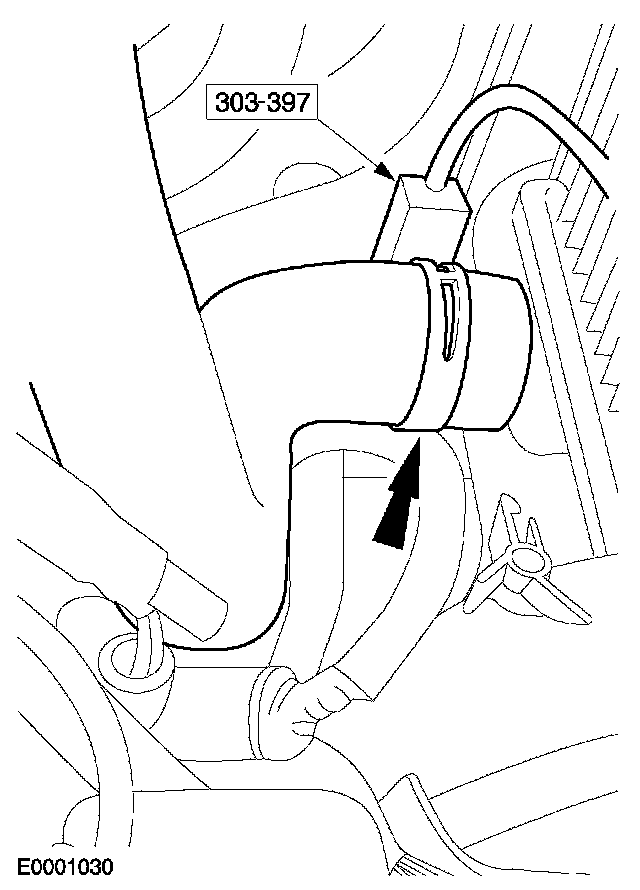

6. Using the special tool, disconnect the coolant hoses (cooling fan motor and shroud shown removed for clarity).

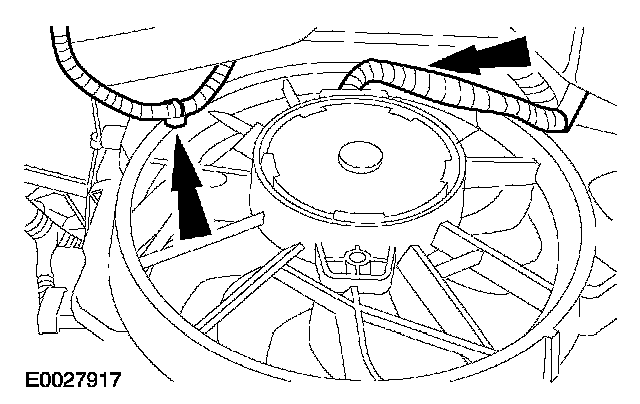

7. Detach the wiring harness retaining clips from the cooling fan shroud.

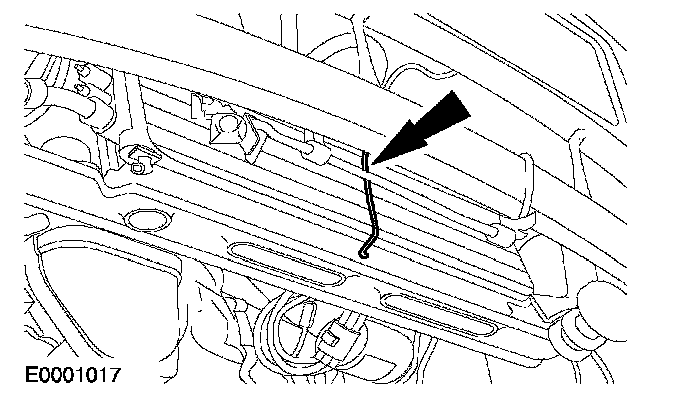

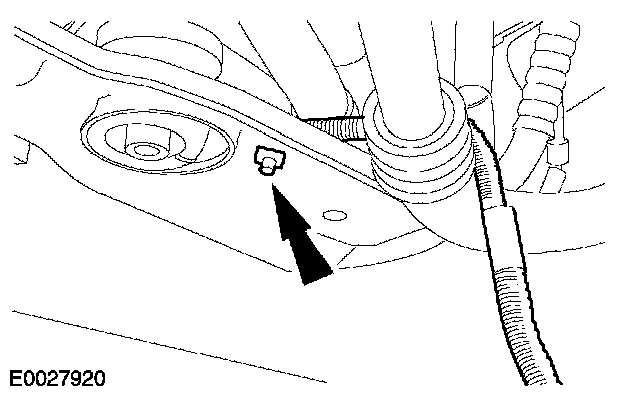

8. Detach the wiring harness retaining clip from the radiator support bracket.

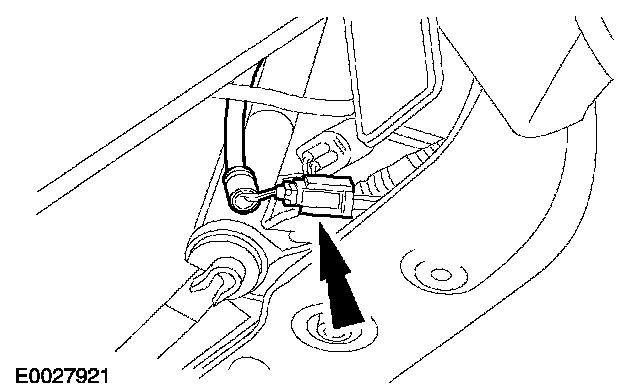

9. Disconnect the horn(s) electrical connector.

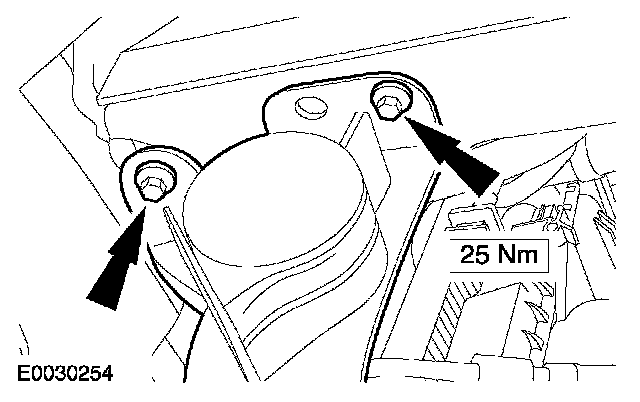

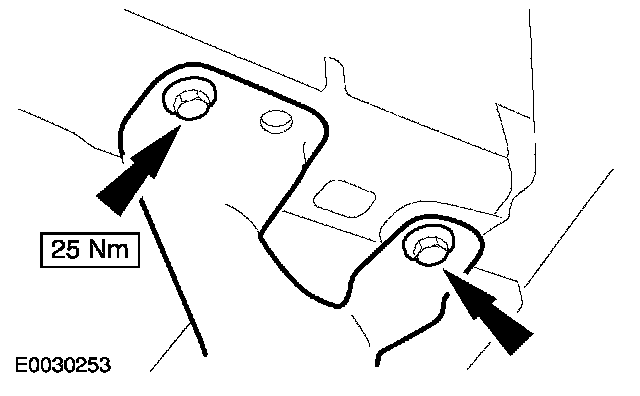

10. Remove the radiator support bracket bolts.





11. NOTE: Support the radiator and cooling fan motor and shroud.

Remove the radiator support bracket.

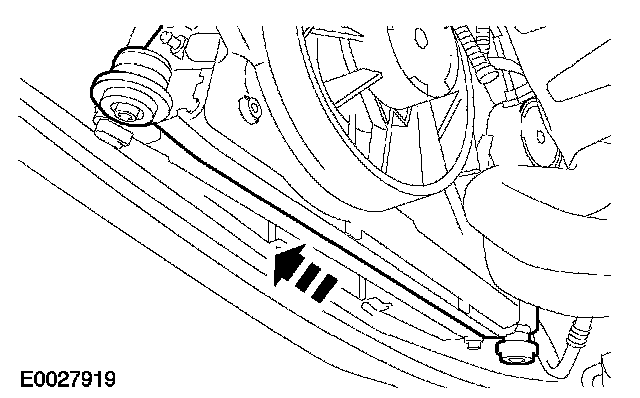

12. Remove the radiator and cooling fan motor and shroud.

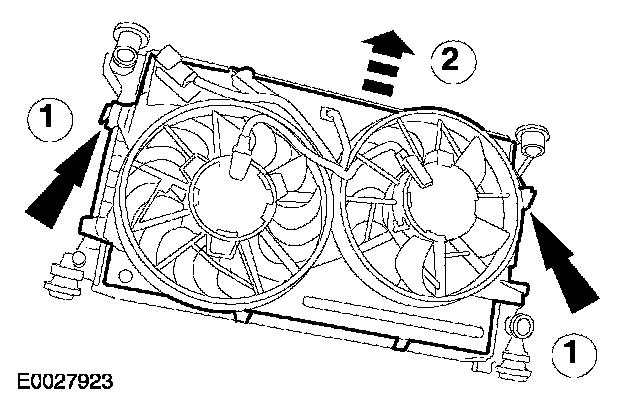

13. CAUTION: Do not use excessive force to release the cooling fan motor and shroud.

Remove the cooling fan motor and shroud from the radiator.
1. Release the retaining clips.
2. Slide the cooling fan motor and shroud from the radiator.

Installation
1. To install, reverse the removal procedure.
2. Fill and bleed the cooling system.
