Exhaust Manifold: Service and Repair

Exhaust Manifold

Removal

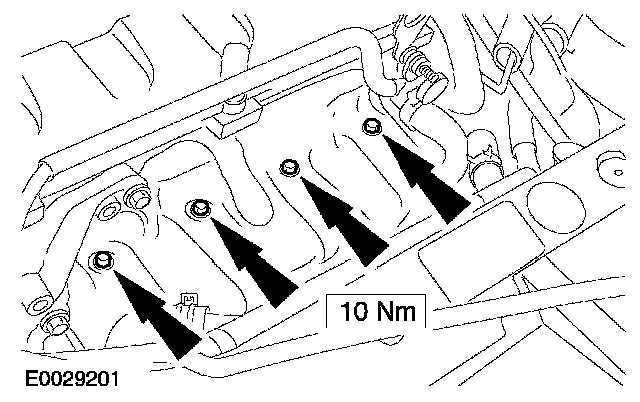

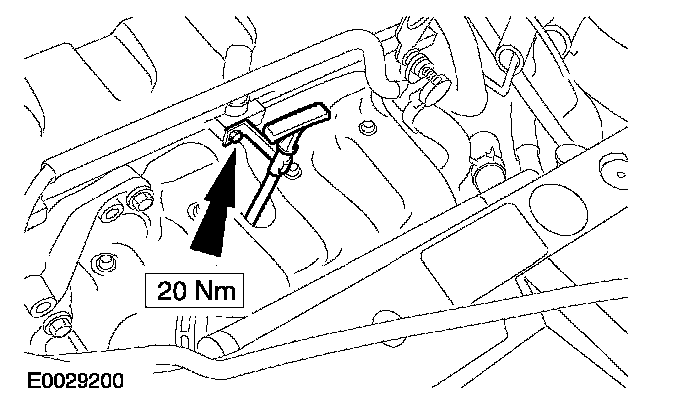

1. Remove the oil level indicator and tube.
2. Remove the radiator fan and shroud.

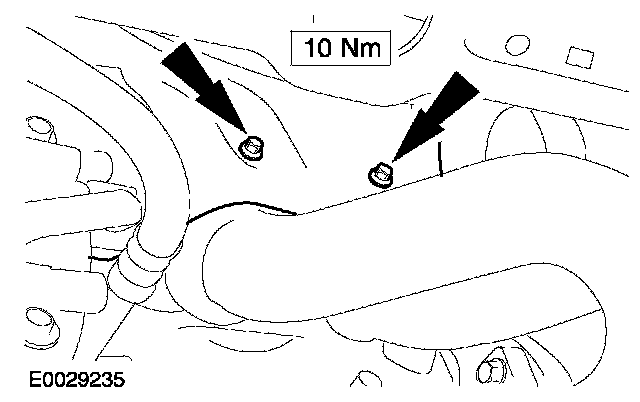

3. Remove the exhaust manifold heat shield lower retaining bolts.

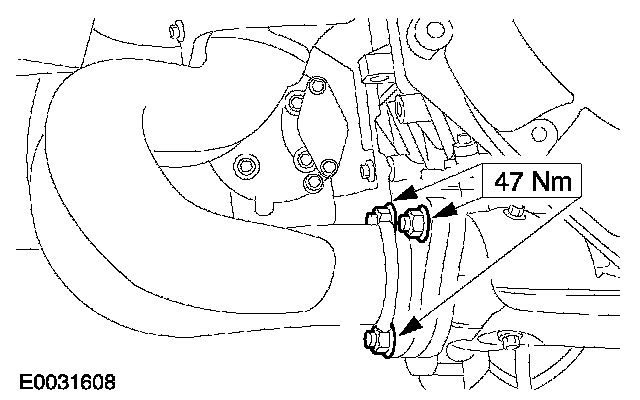

4. Detach the exhaust manifold from the catalytic converter.
5. Lower the vehicle.





6. Remove the exhaust manifold heat shield.

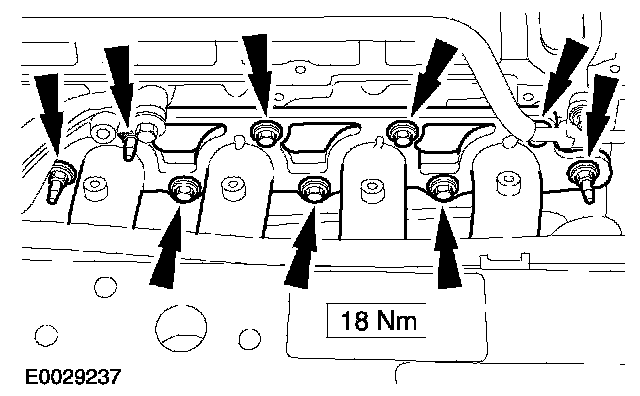

7. Remove the exhaust manifold.
^ Remove the exhaust manifold downwards.
^ Discard the gaskets.

Installation

1. NOTE: Install new exhaust manifold gaskets. To install, reverse the removal procedure.
