Instrument Cluster / Carrier: Description and Operation
Instrument ClusterThe base and optional instrument clusters both contains gauges, indicator lamps, and warning lamps that are designed to provide the driver with system status and to alert the driver that certain conditions exist in the vehicle. Gauges provide information to the driver indicating the status of Systems. The systems that use gauges include vehicle speed, fuel level, engine coolant temperature, and engine rpm. Indicator lamps provide information to the driver of conditions that exist in the vehicle. The indicator lamps include the turn signal, CHECK FUEL CAP, traction control, and speed control. Warning indicator lamps provide information to the driver of conditions that could potentially alter vehicle performance. Examples of the warning indicators include the ABS, BRAKE, safety belt, and low oil pressure.

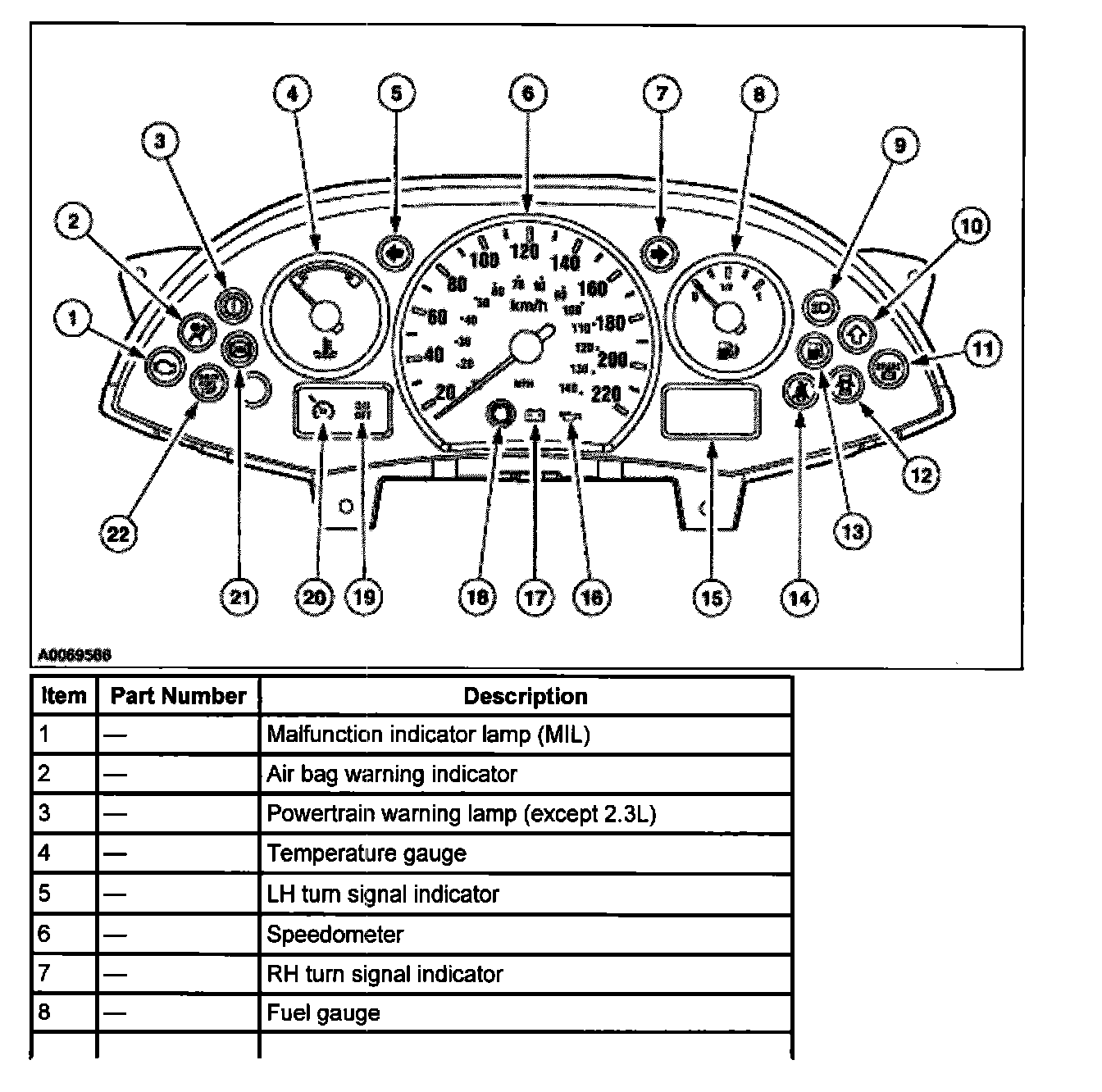

Base Instrument Cluster:
Base Instrument Cluster:

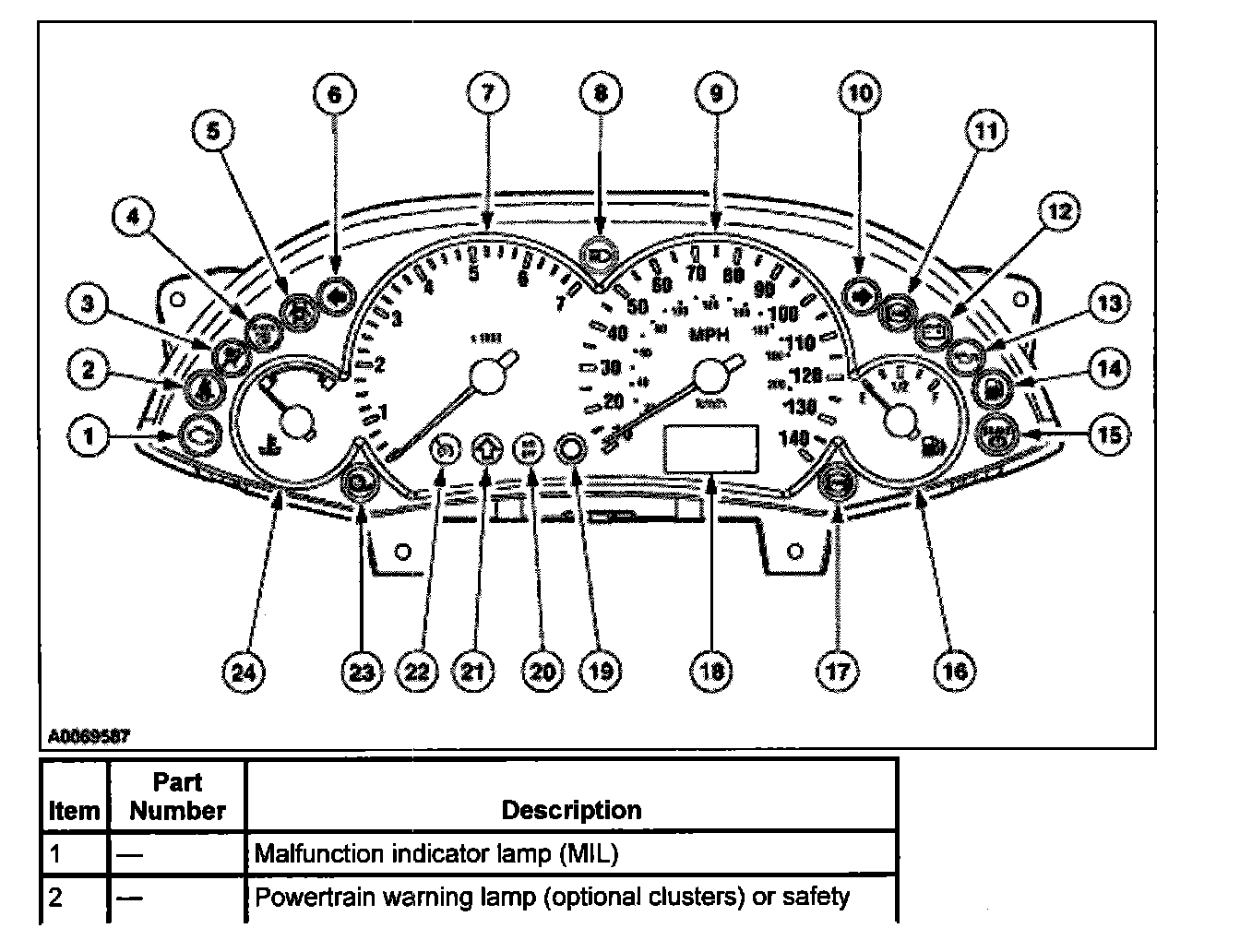

Base Instrument Cluster
2.3L Cluster Shown:
2.3L Cluster Shown:

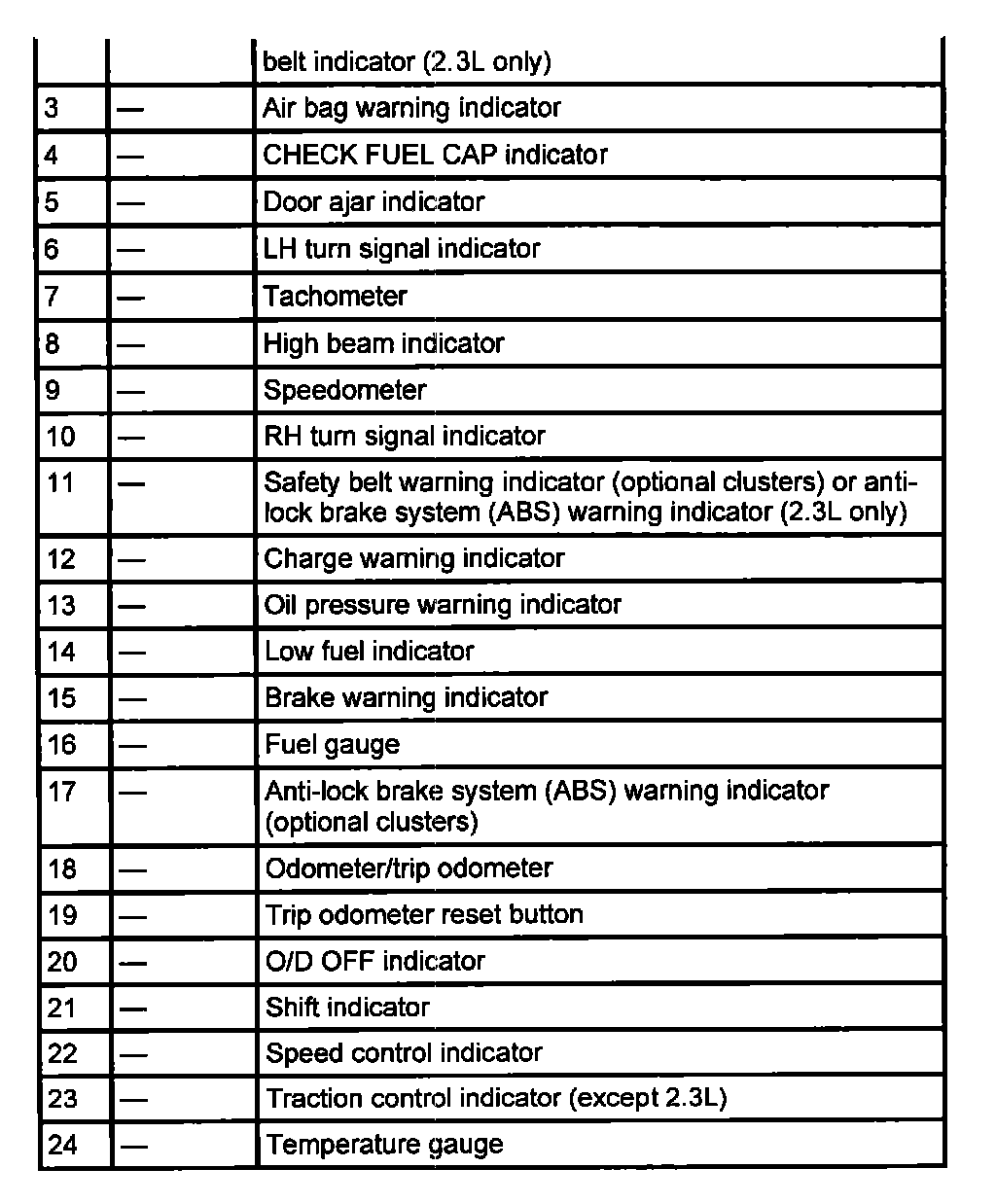

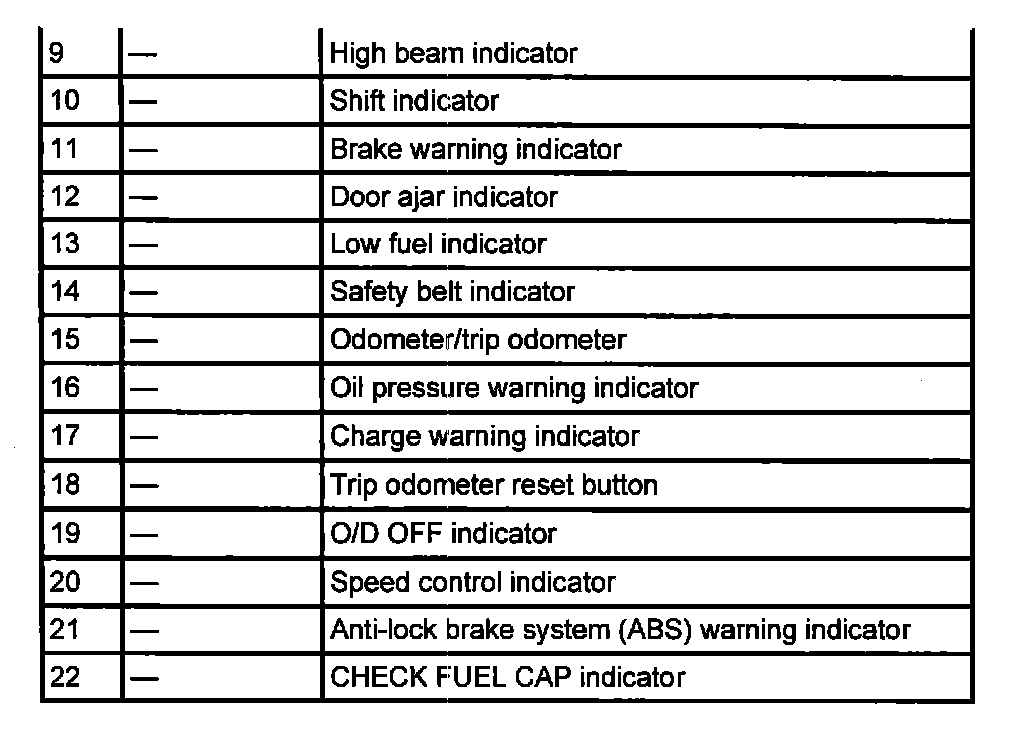

Optional Instrument Cluster
NOTE: 2.3L cluster shown.
2.3L Cluster Shown:
SVT Oil Pressure and Oil Temperature Cluster
