PINPOINT TEST M: THE
BRAKE WARNING INDICATOR
IS NEVER/ALWAYS ON - EXCEPT 2.3L

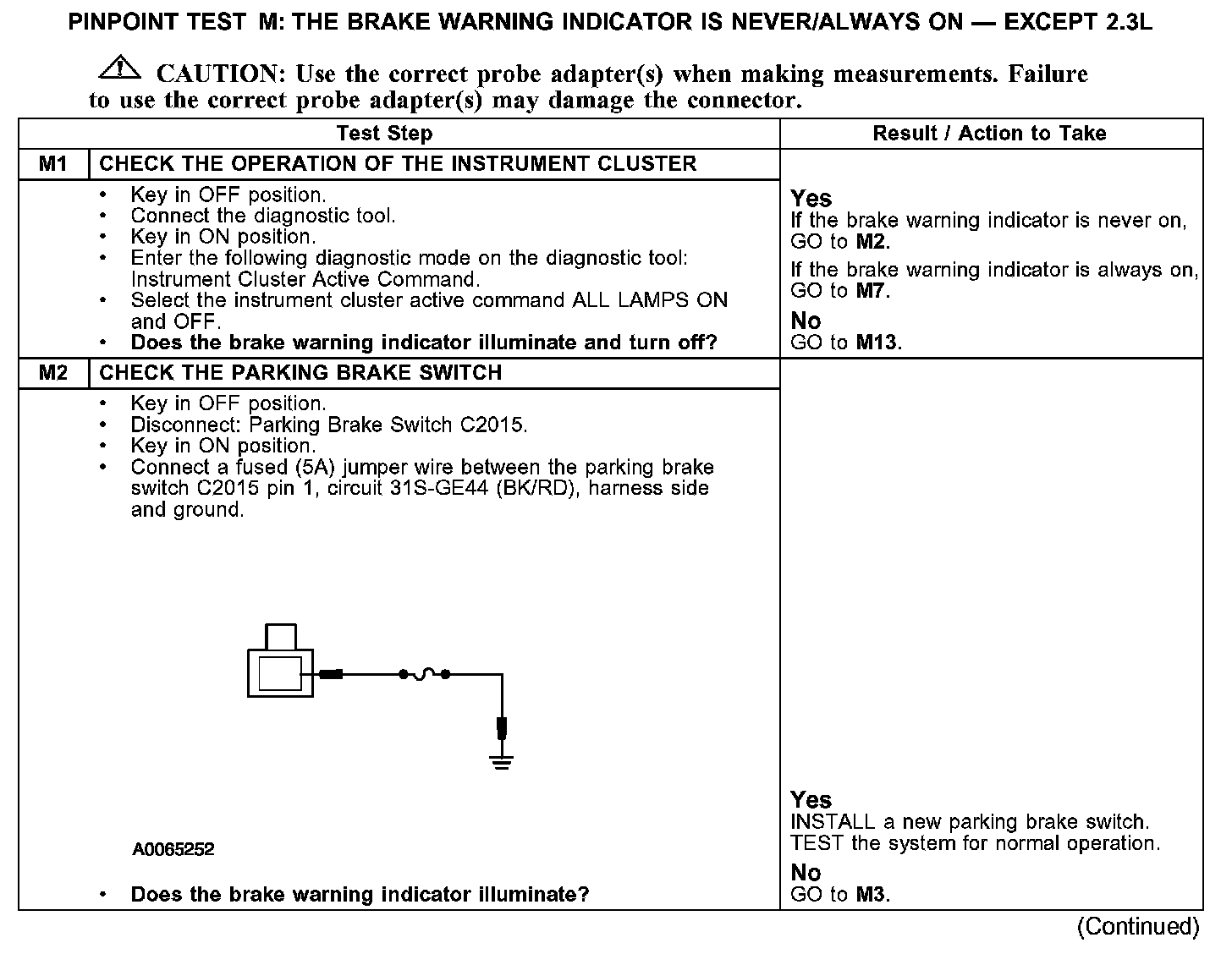

Test M1-M2:

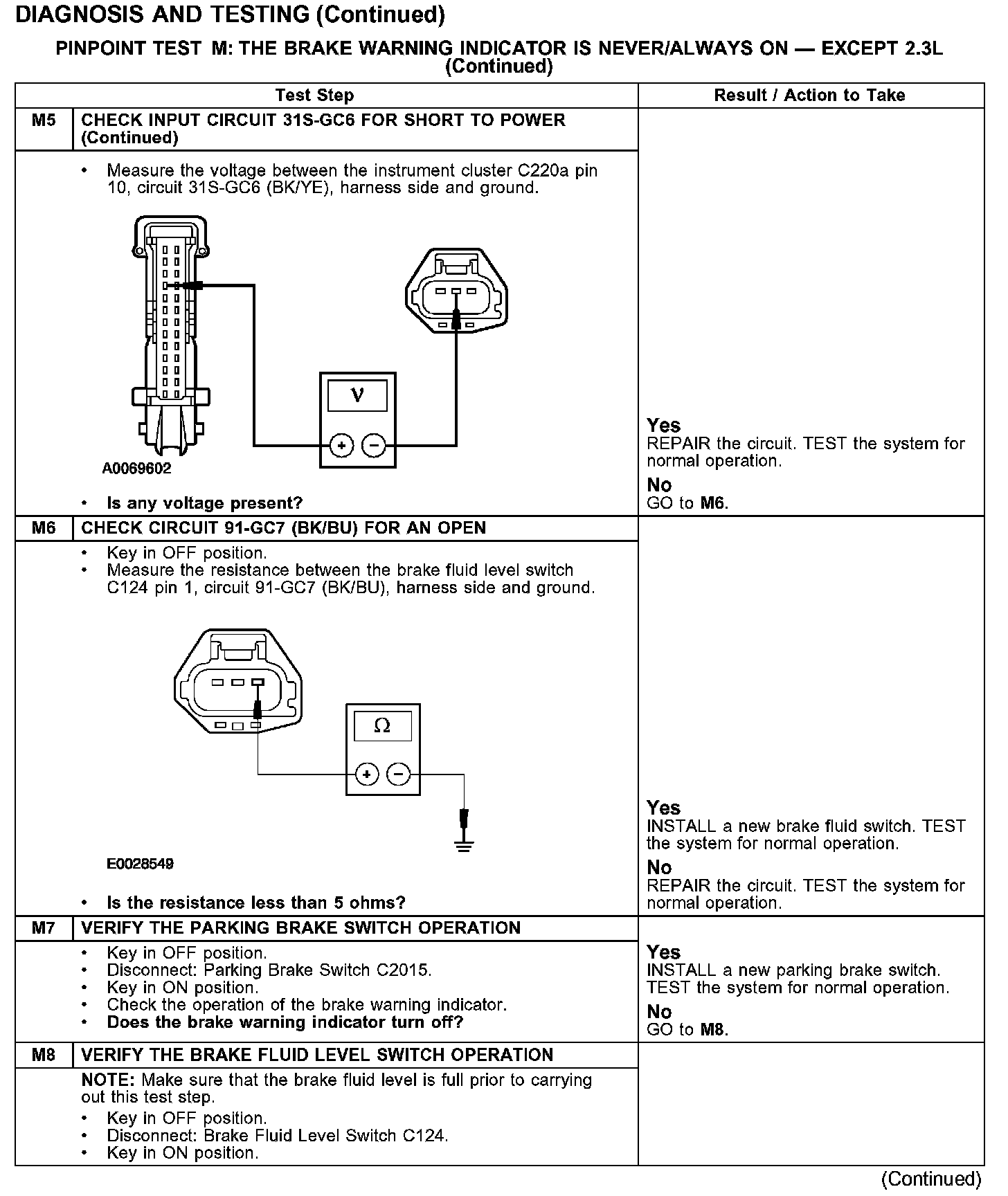

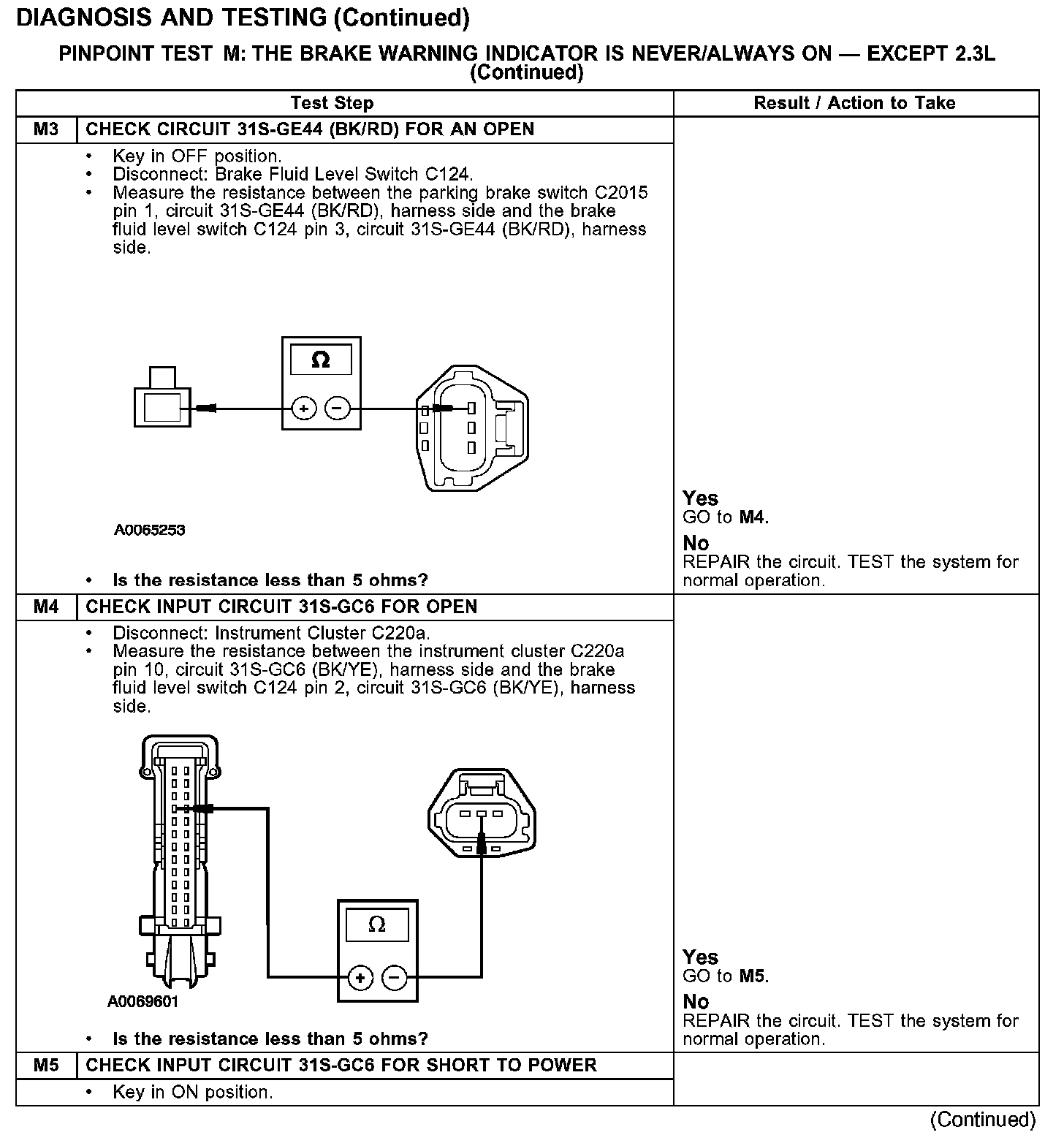

Test M3-M5:

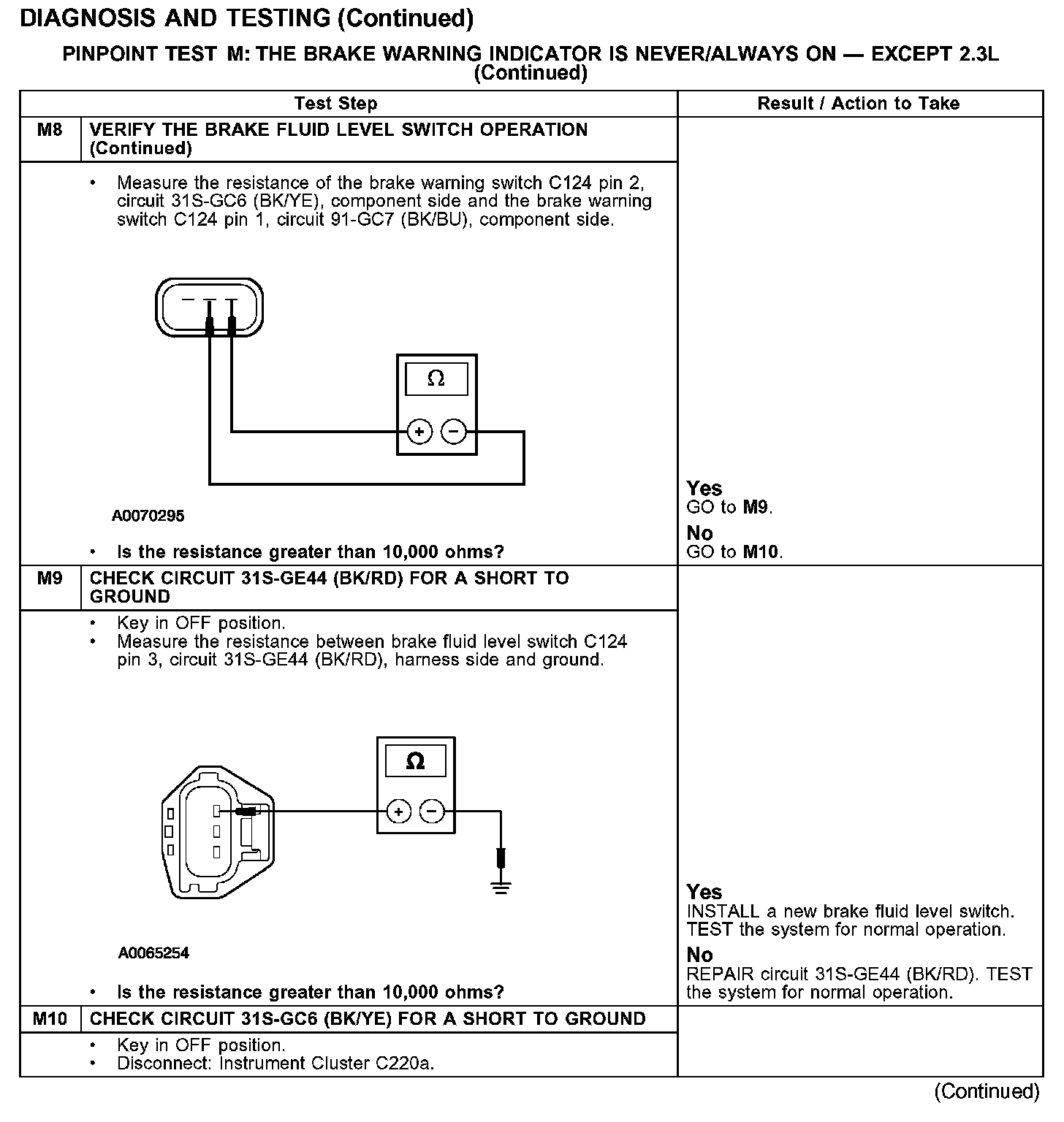

Test M5-M8:

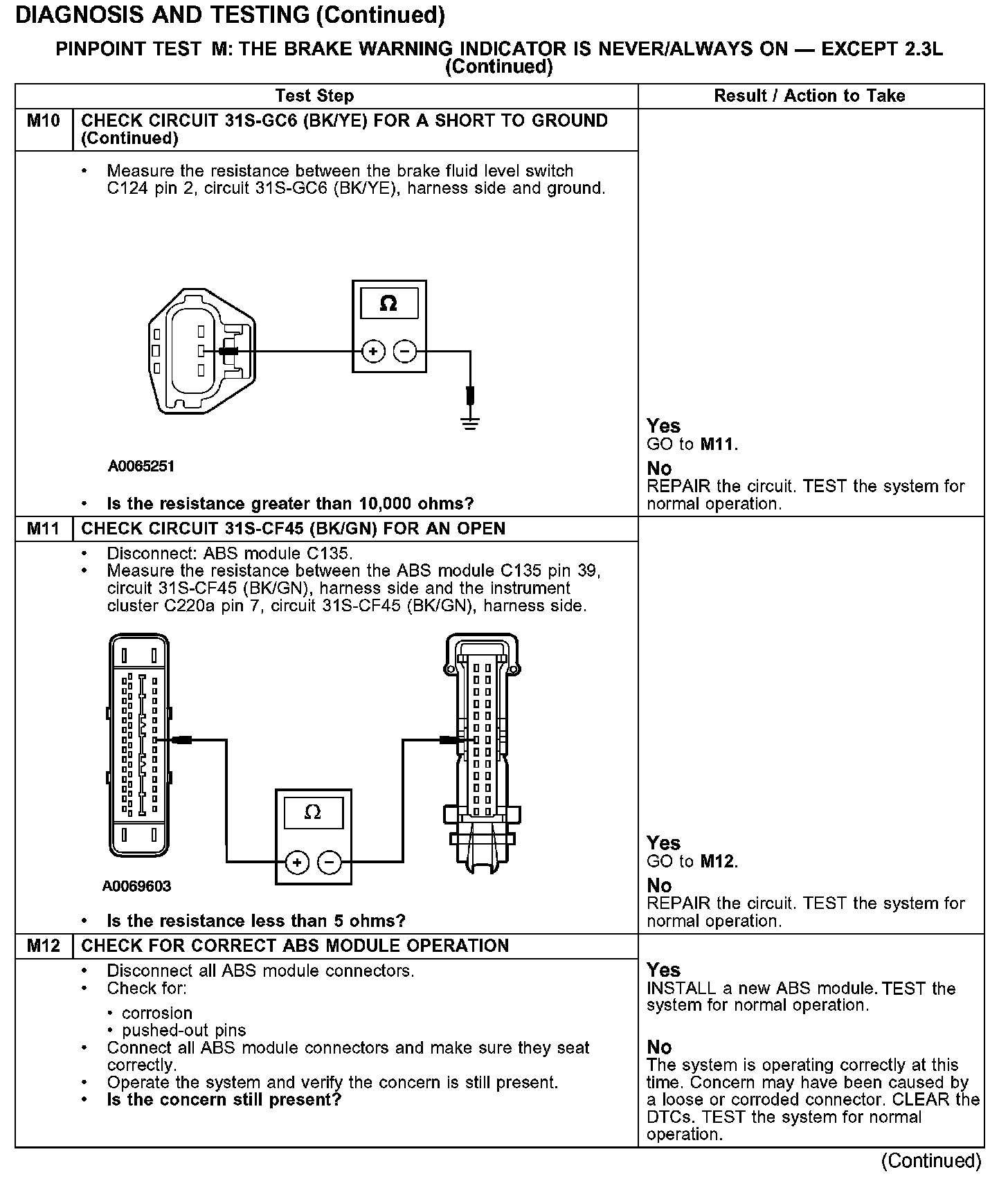

Test M8-M10:
Test M10-M12:

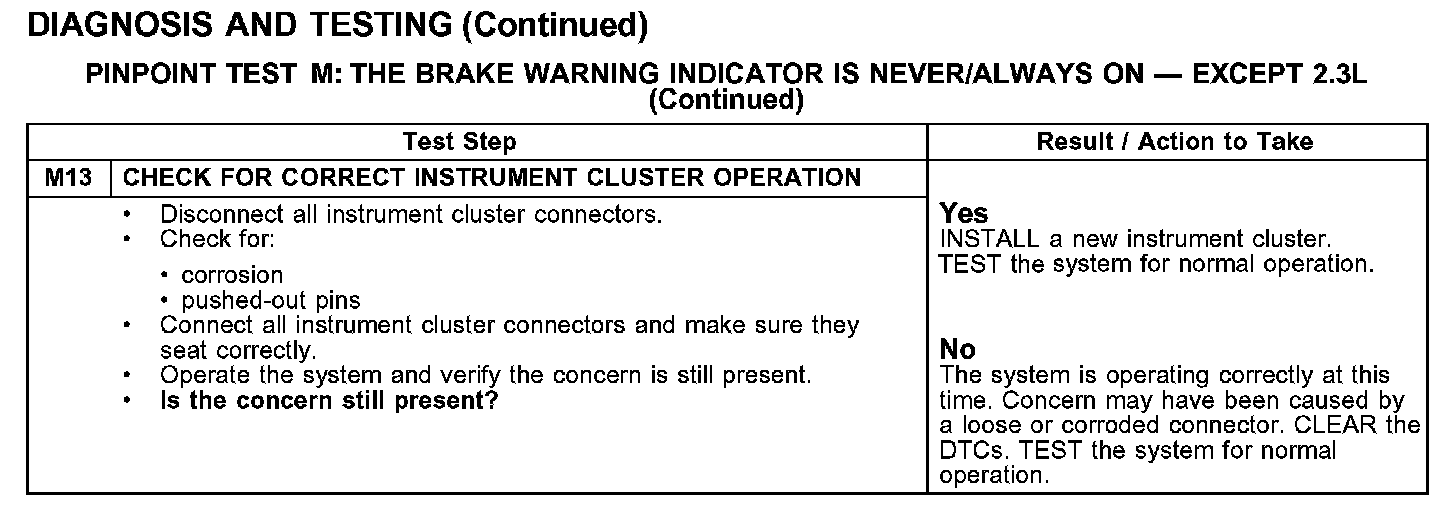

Test M13:
