Test N
Test N
PINPOINT TEST N: THE
BRAKE WARNING INDICATOR
IS NEVER/ALWAYS ON - 2.3L ONLY

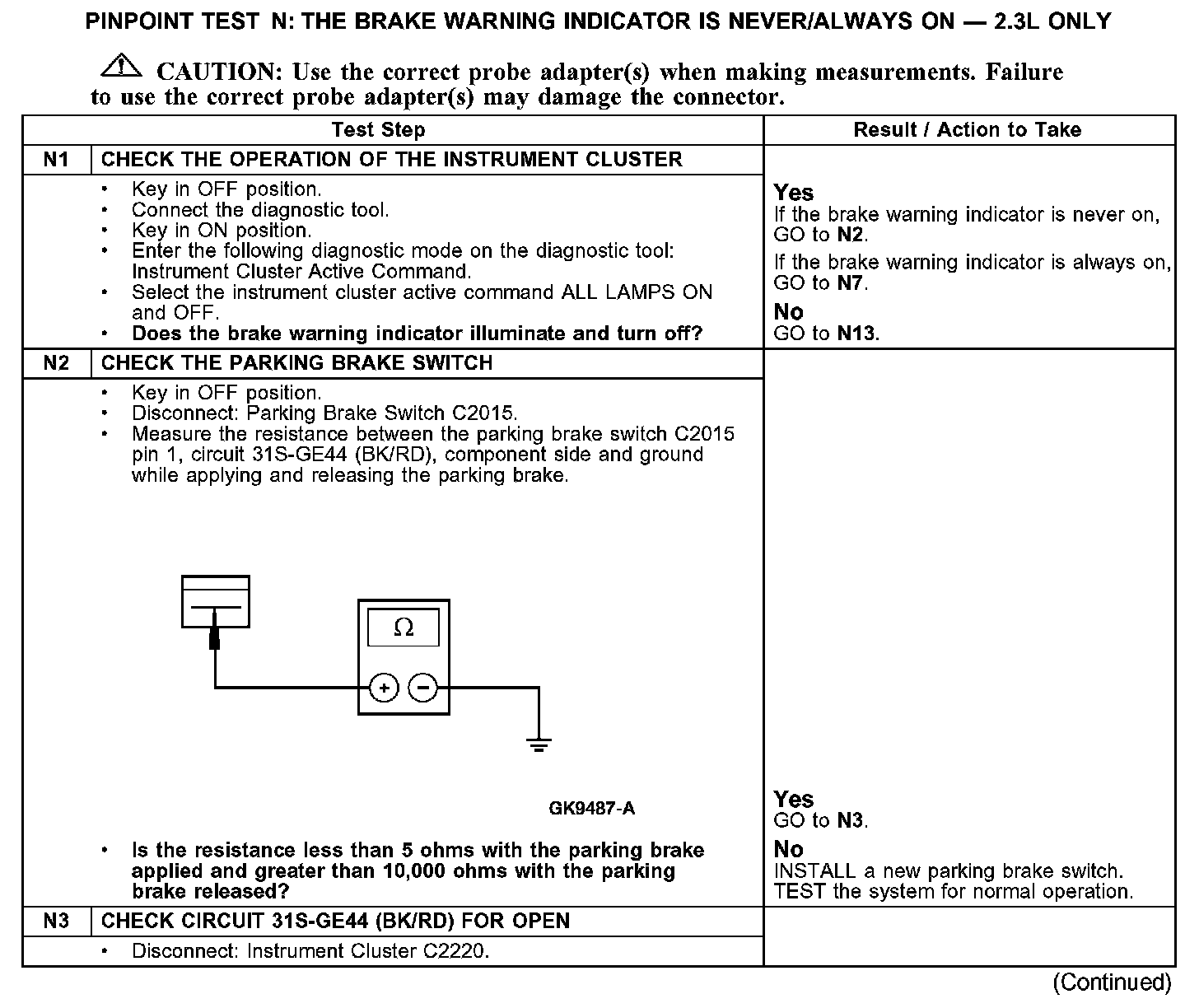

Test N1-N3:

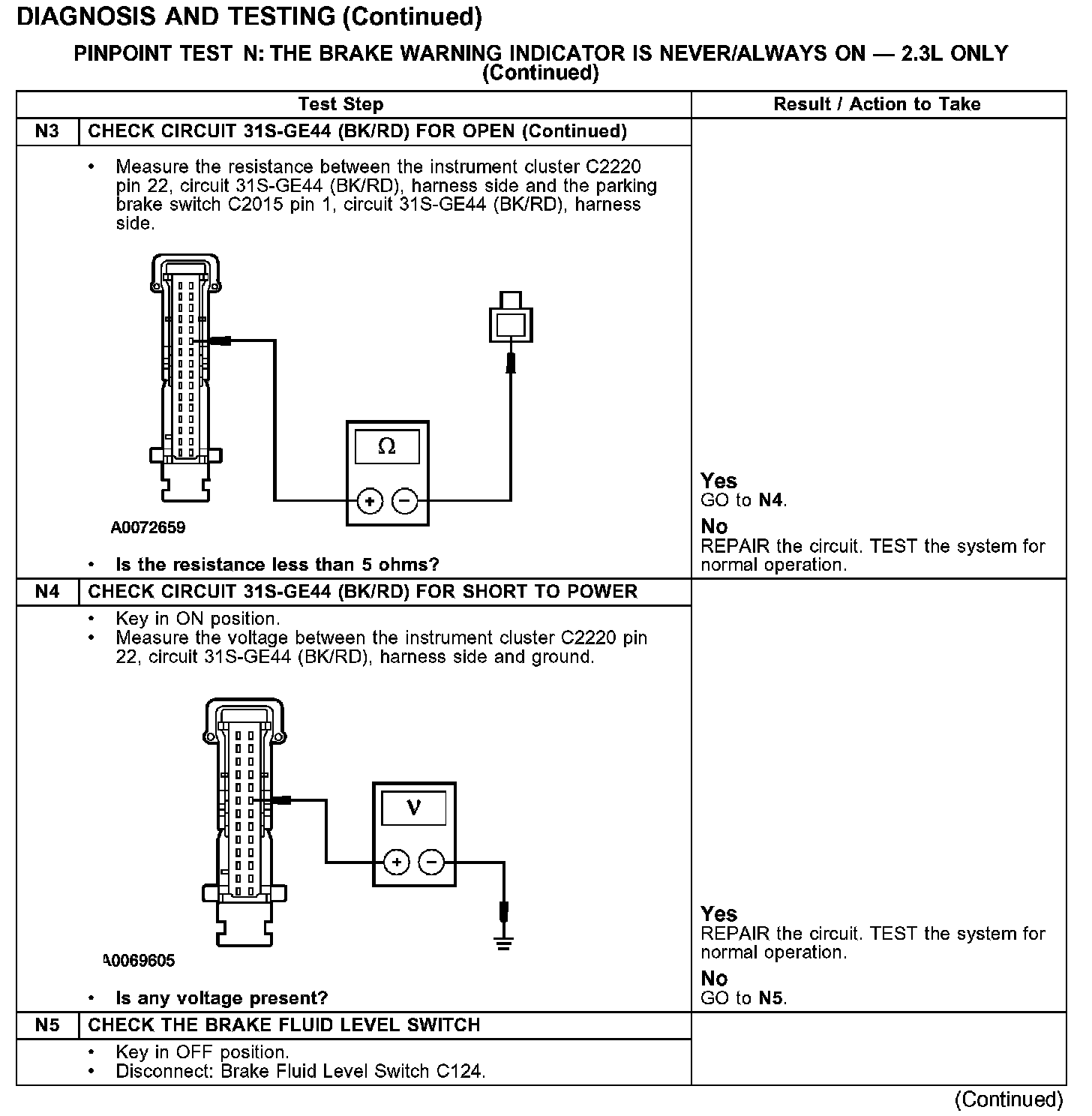

Test N3-N5:

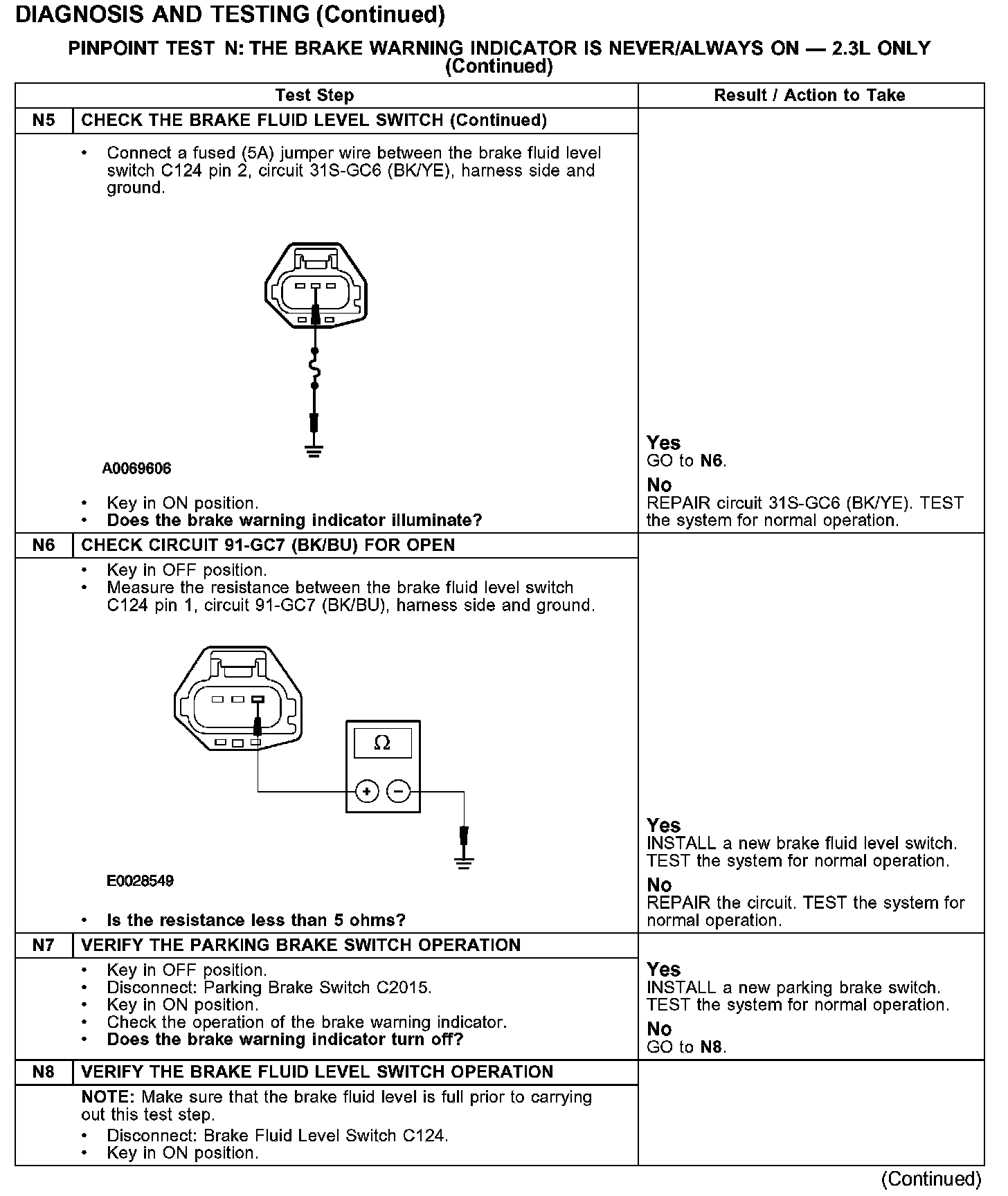

Test N5-N8:

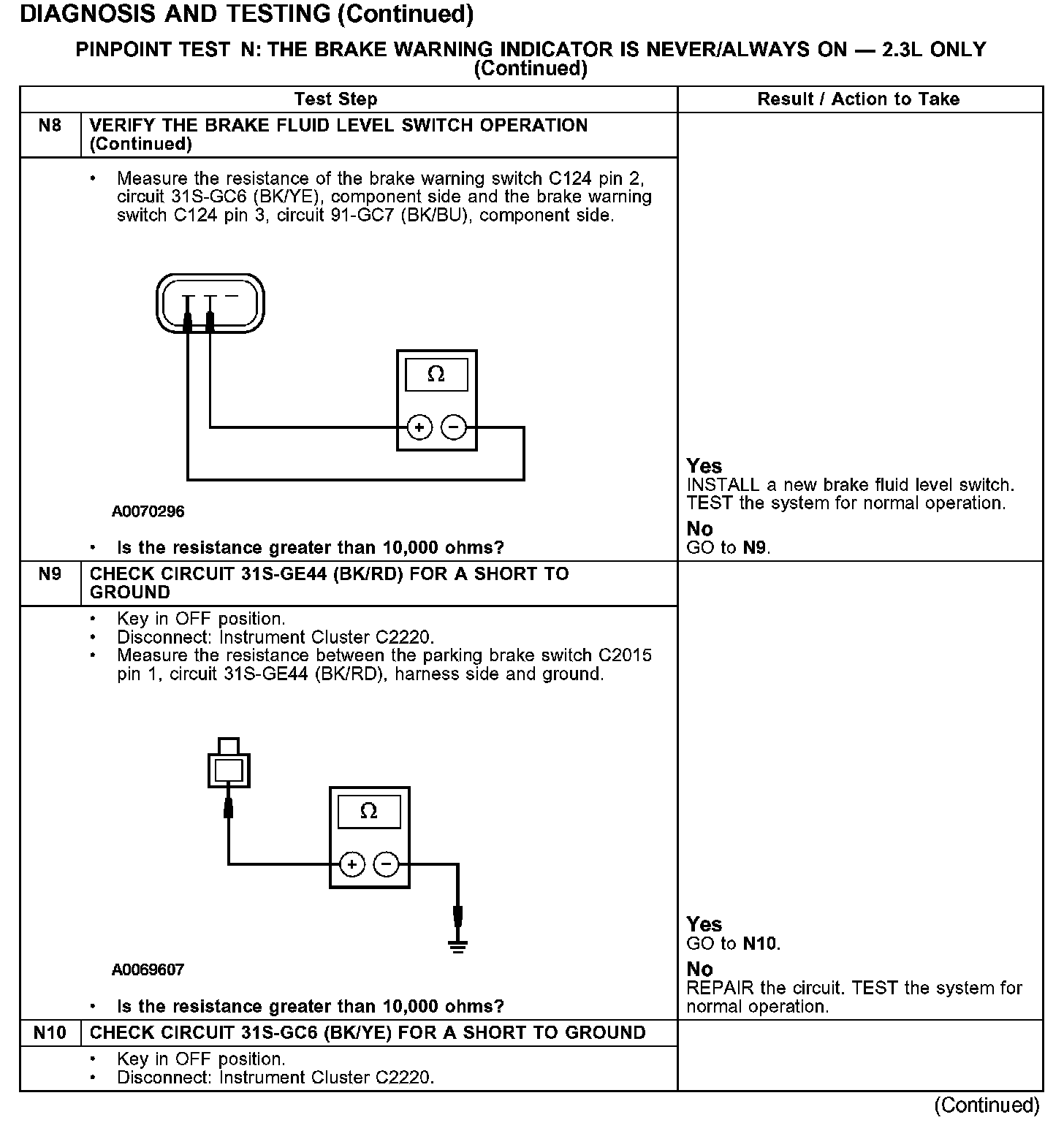

Test N8-N10:

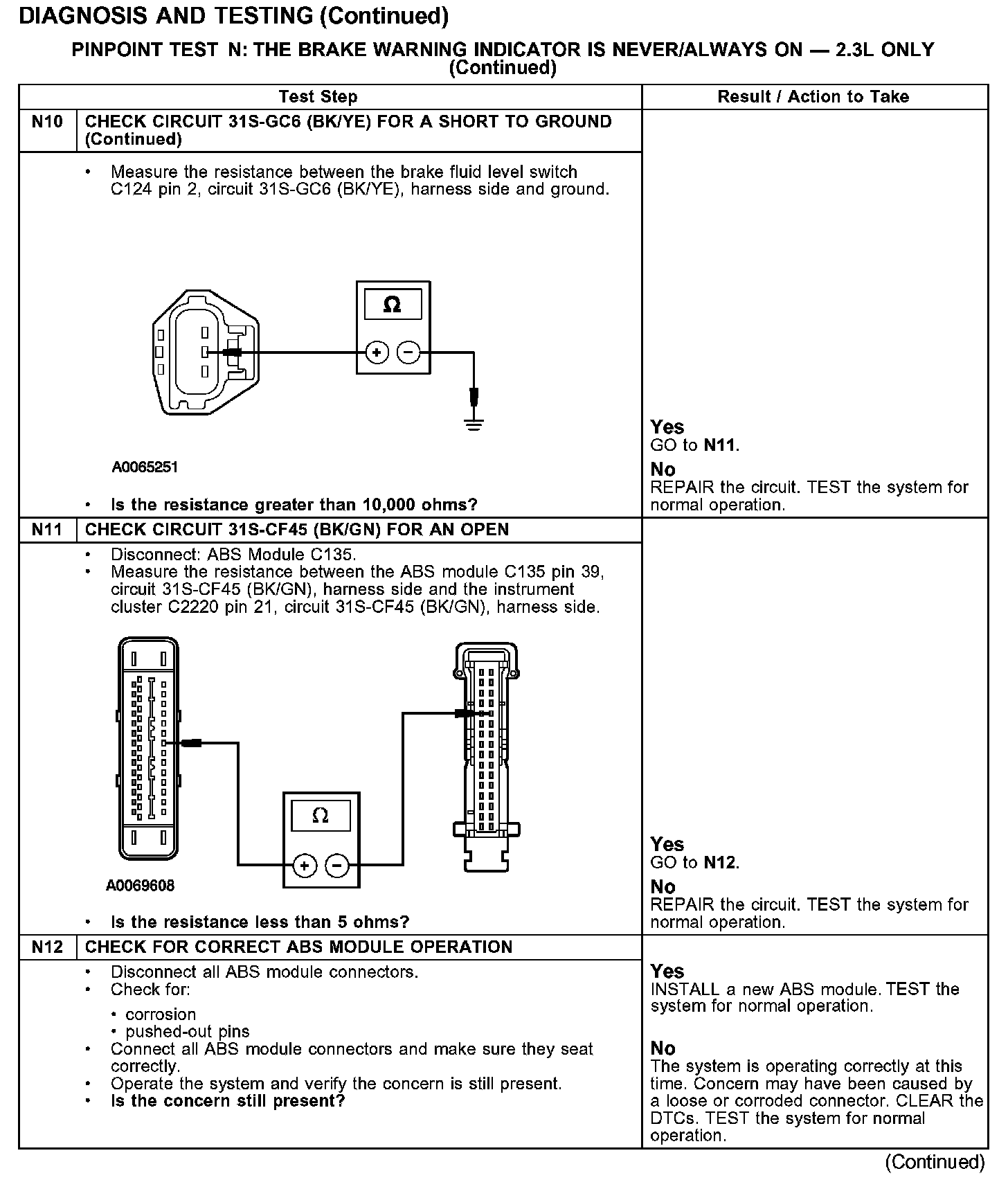

Test N10-N12:

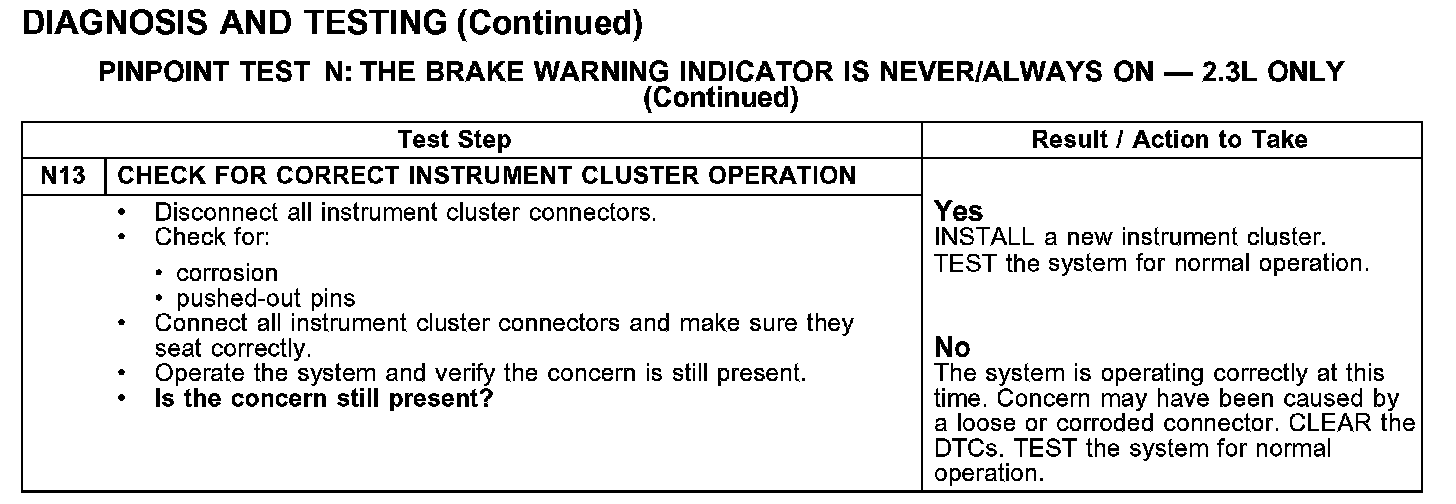

Test N13:
