Home >> Ford >> 2004 >> Focus L4-2.0L DOHC VIN 5 >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test Q

Test Q

PINPOINT TEST Q: THE CHARGING SYSTEM WARNING INDICATOR IS NEVER/ALWAYS ON

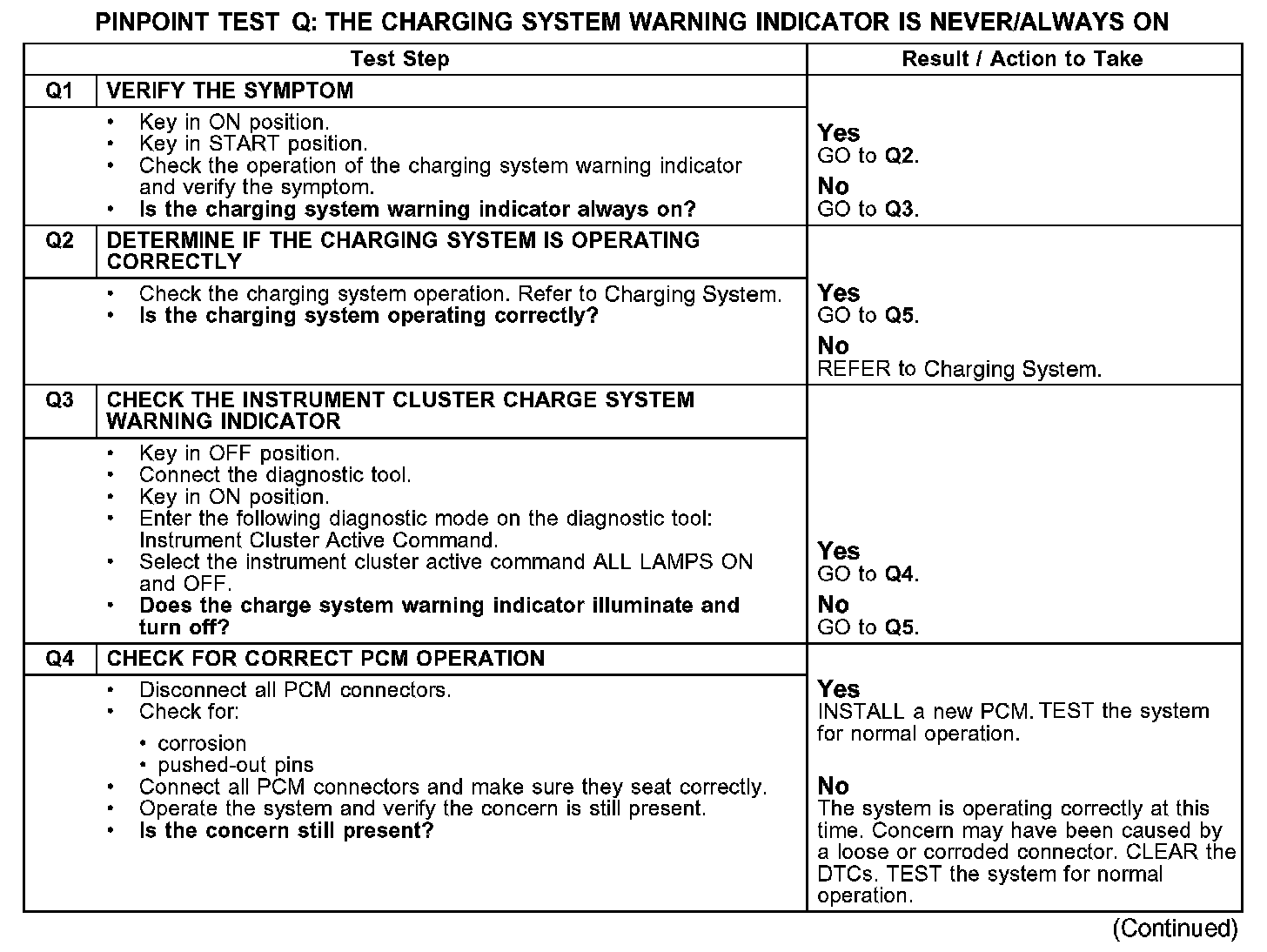

Test Q1-Q4:

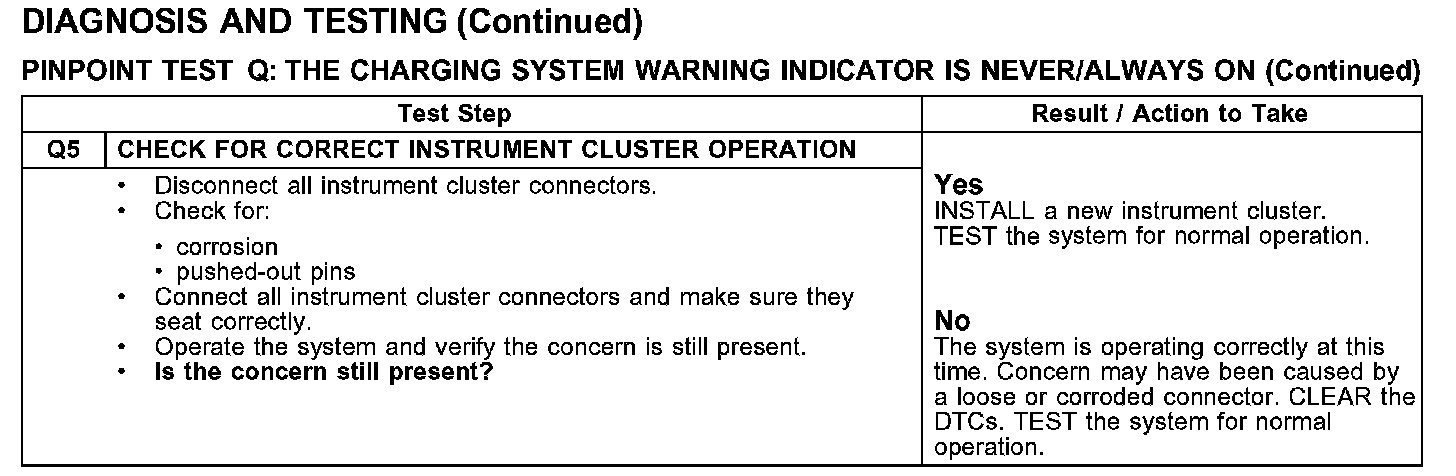

Test Q5:
