Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Focus L4-2.0L DOHC VIN 5
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Panel Illumination
>>
Test C
Test C
PINPOINT TEST C: THE INSTRUMENT PANEL ILLUMINATION IS INOPERATIVE - SVT

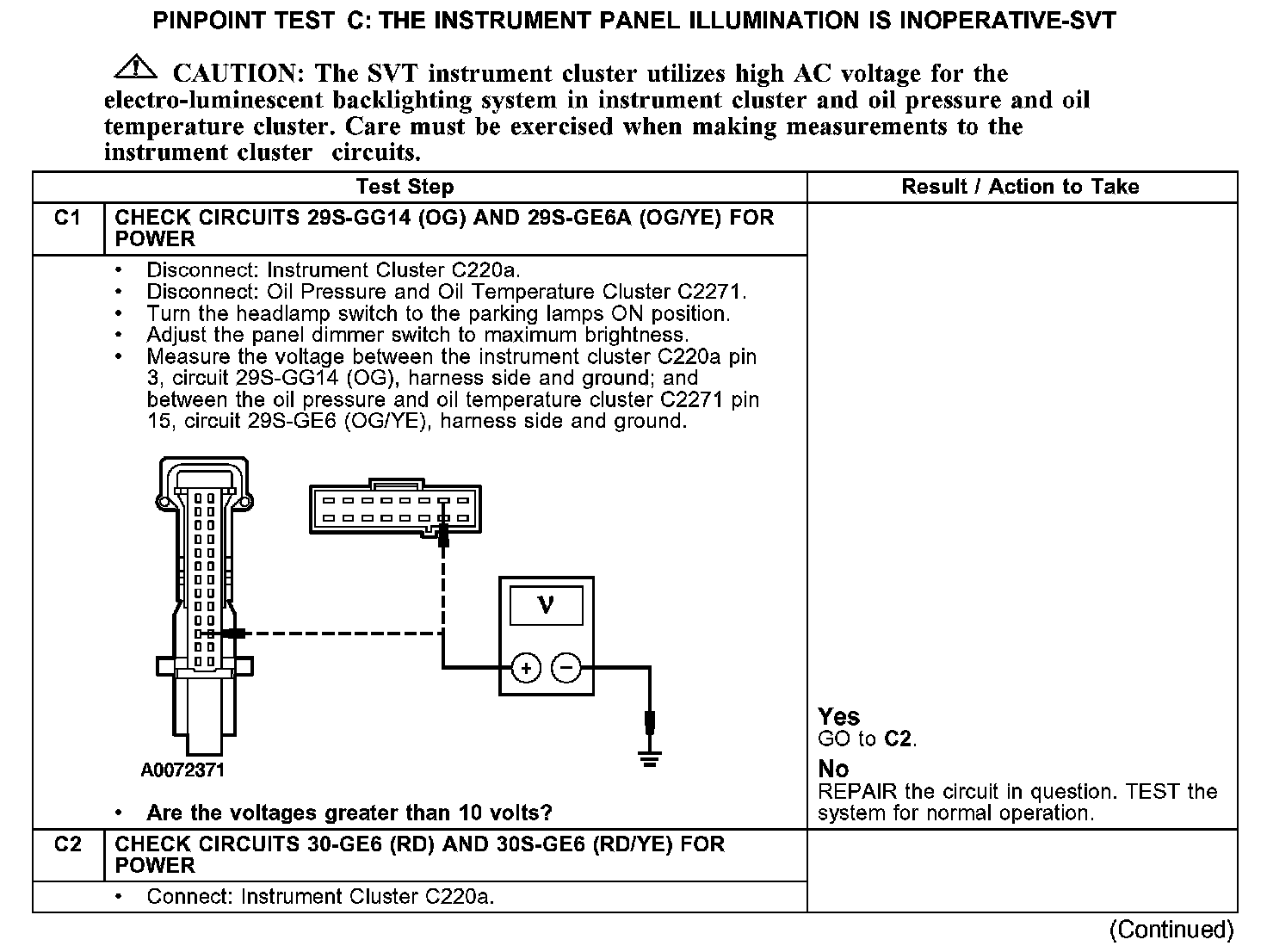

Test C1-C2:

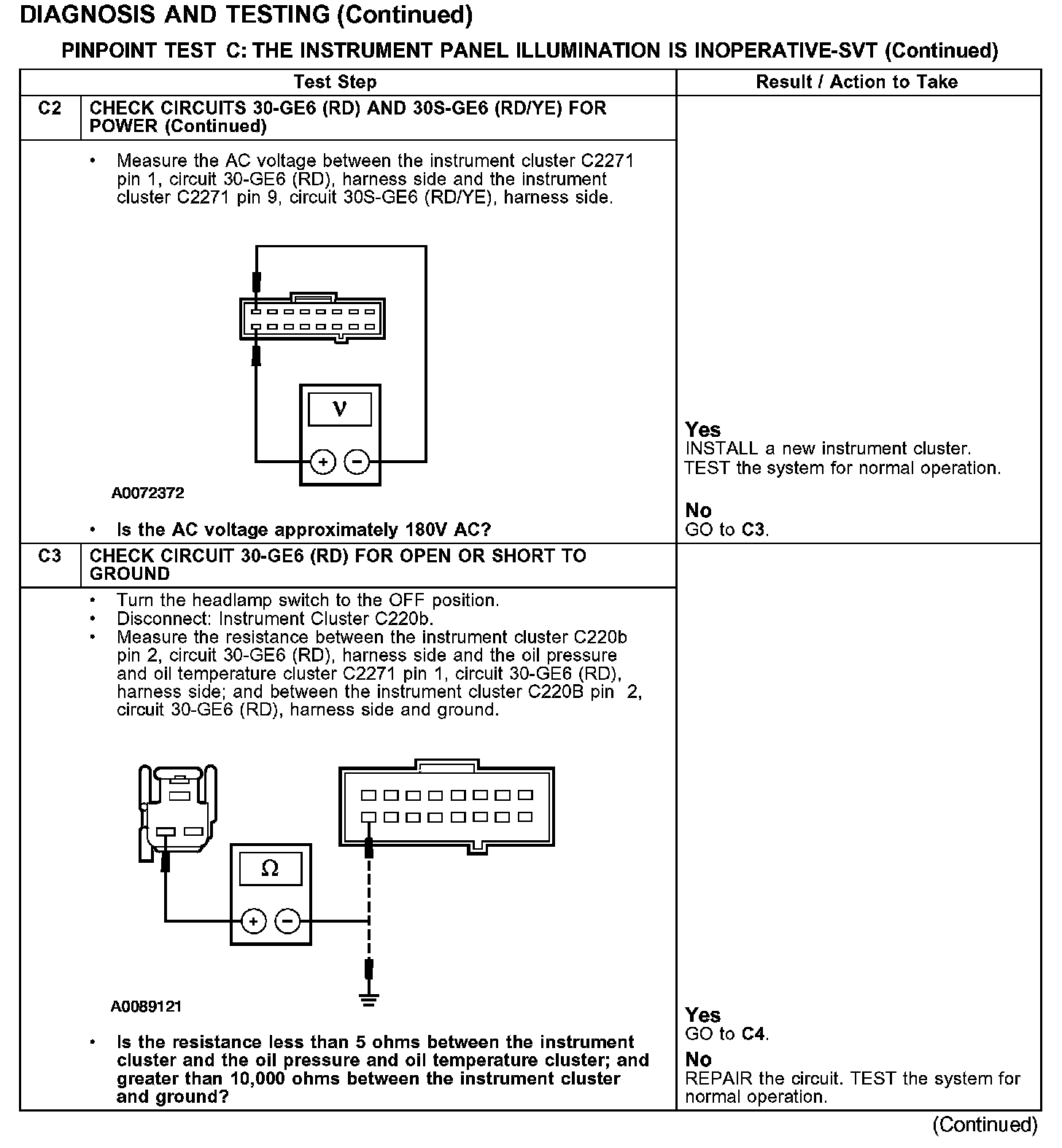

Test C2-C3:

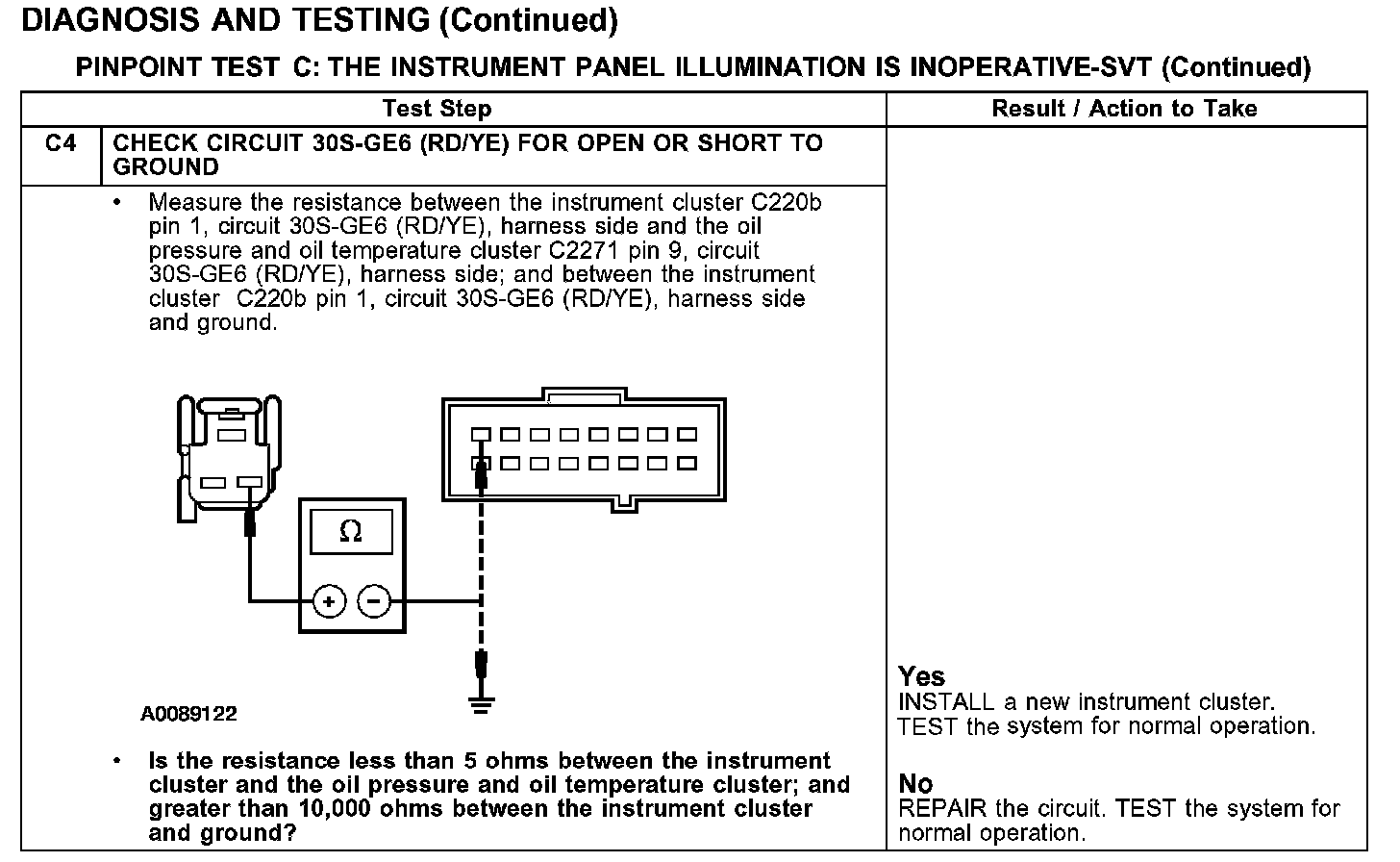

Test C4:
