PINPOINT TEST V: THE INDIVIDUAL REVERSING LAMP IS INOPERATIVE

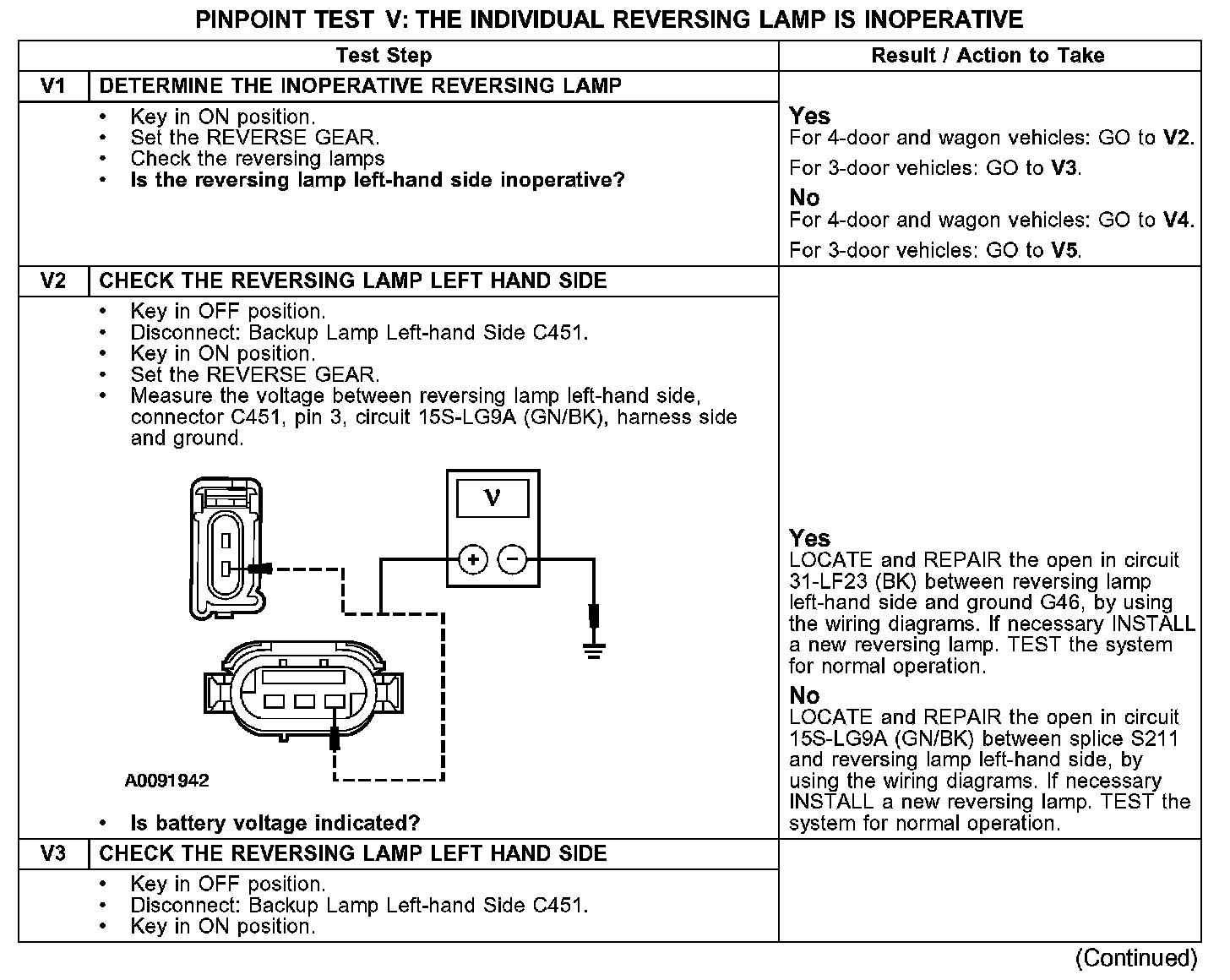

Test V1-V3:

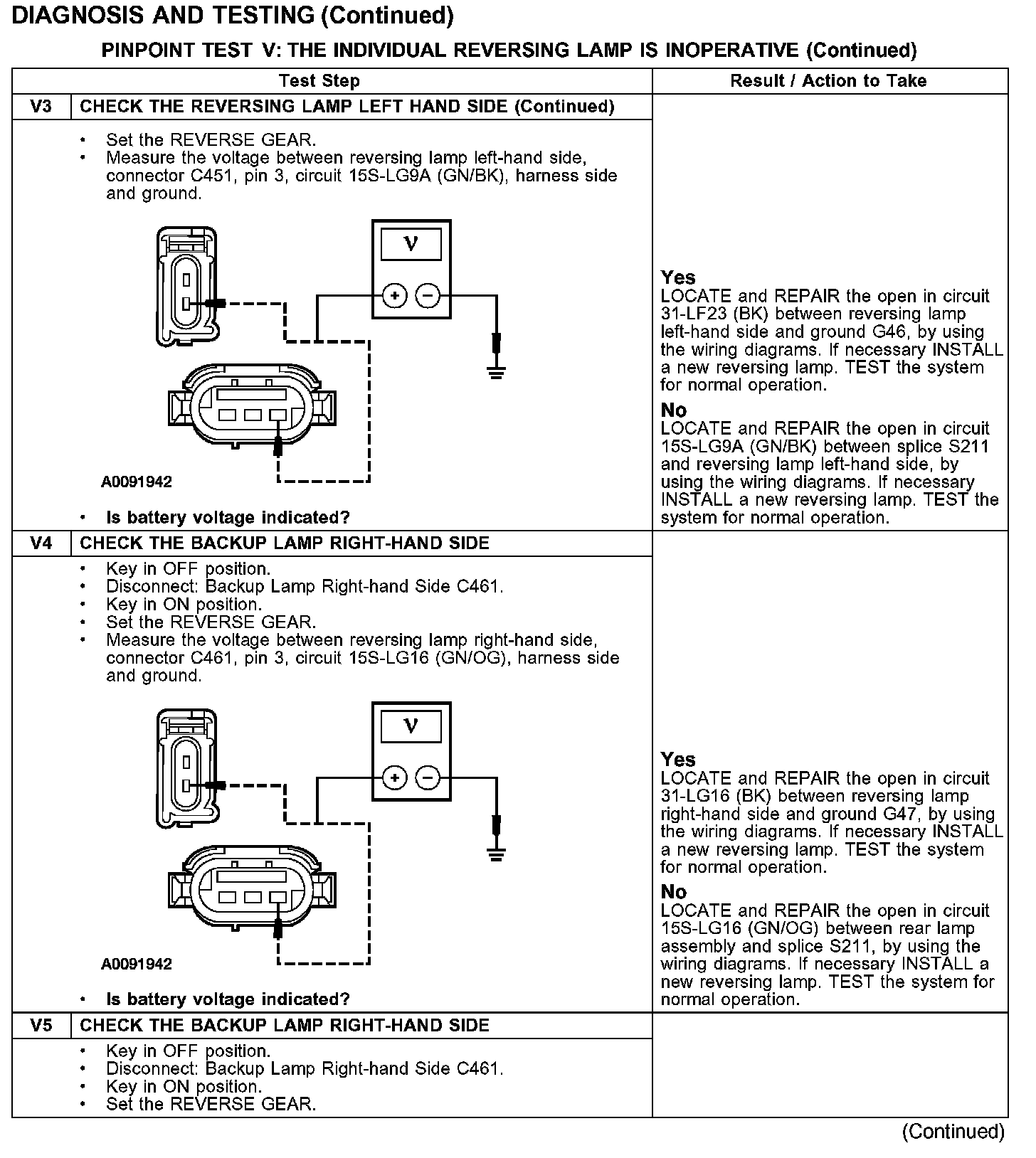

Test V3-V5:

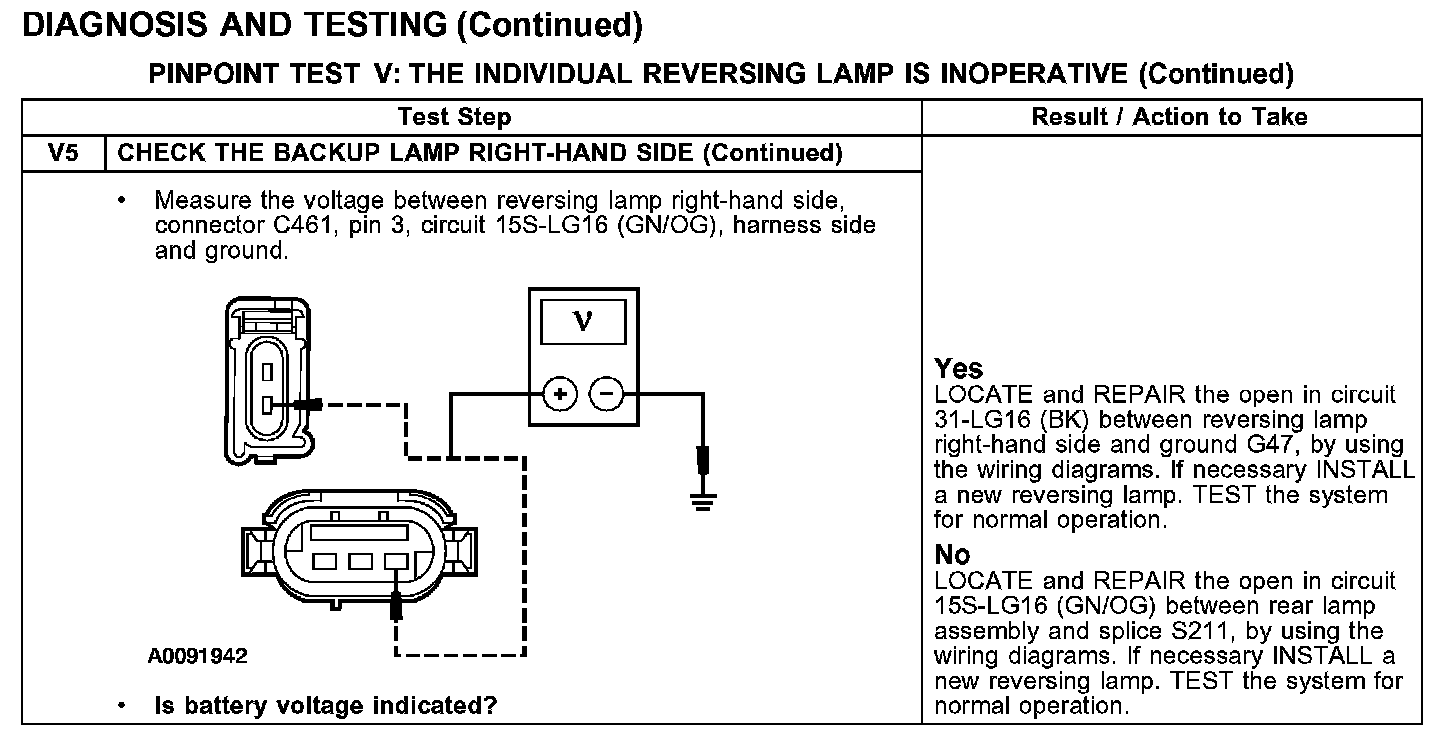

Test V5 Continued:
