Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Focus L4-2.0L DOHC VIN 5
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test E
Test E
PINPOINT TEST E: ONE HIGH BEAM
HEADLAMP
IS INOPERATIVE (LOW BEAMS OK)

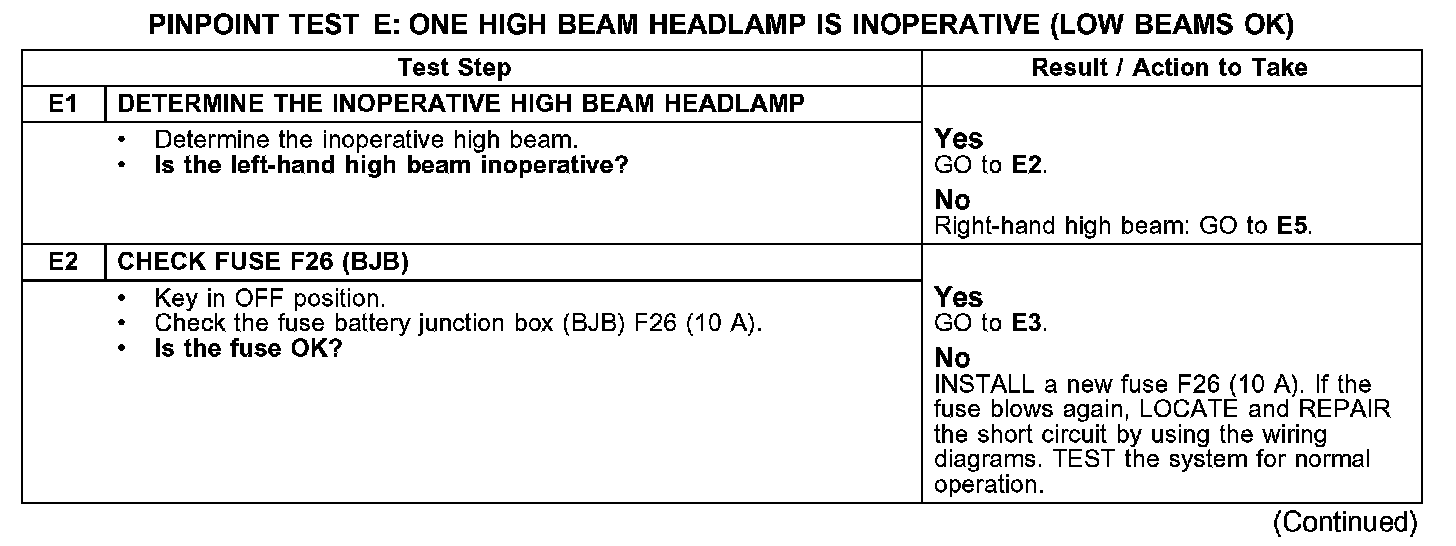

Test E1-E2:
Test E3-E7:

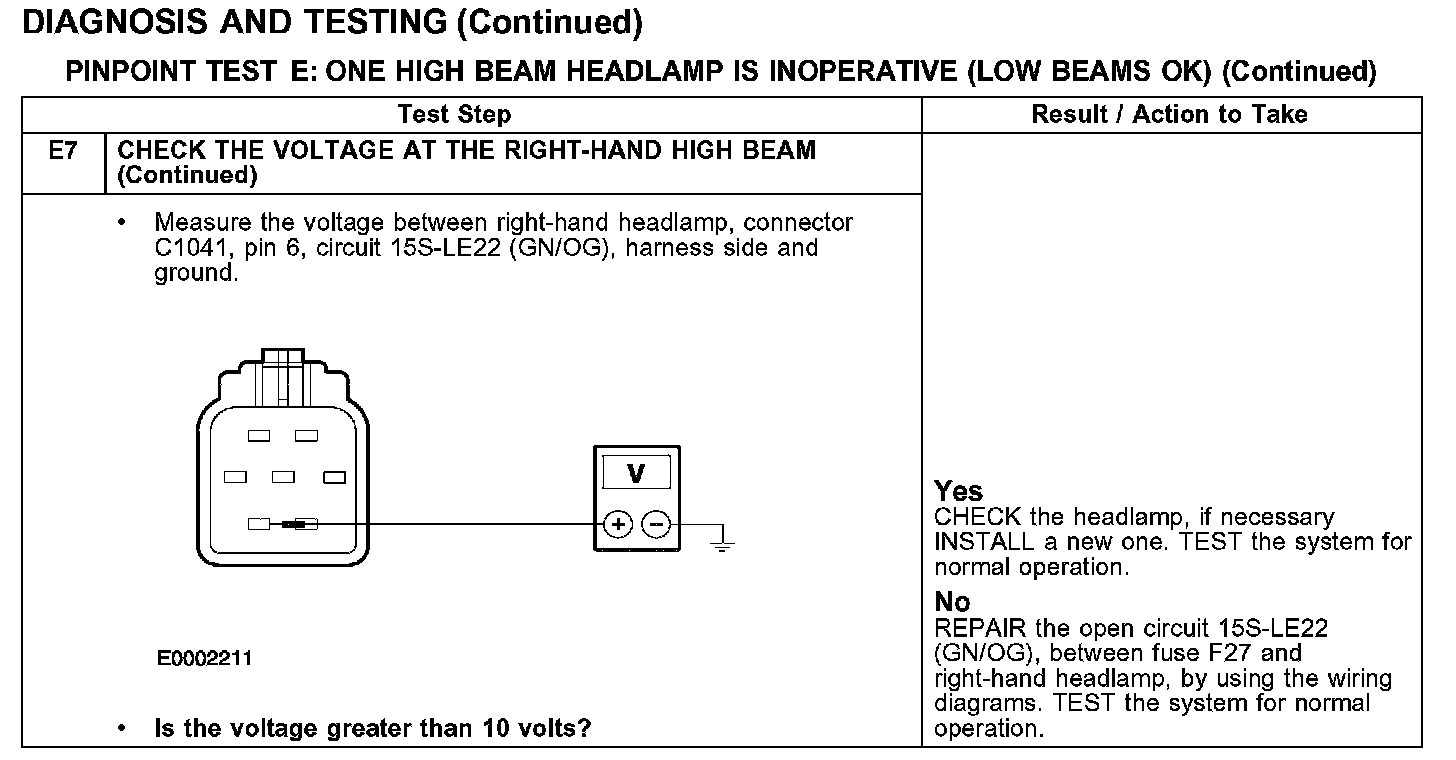

Test E7 Continued:
