Home >> Ford >> 2004 >> Focus L4-2.0L DOHC VIN 5 >> Repair and Diagnosis >> Lighting and Horns >> Parking Lamp >> Testing and Inspection >> Pinpoint Tests >> Test O

Test O

PINPOINT TEST O: ONE OR MORE PARKING, REAR OR LICENSE LAMP(S) IS/ARE INOPERATIVE

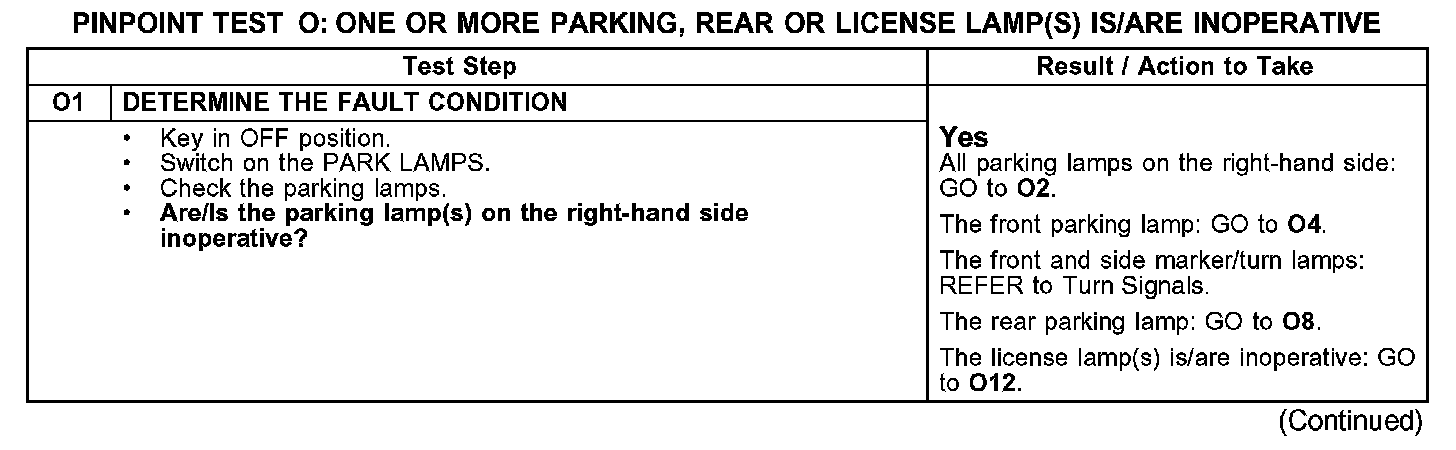

Test O1:

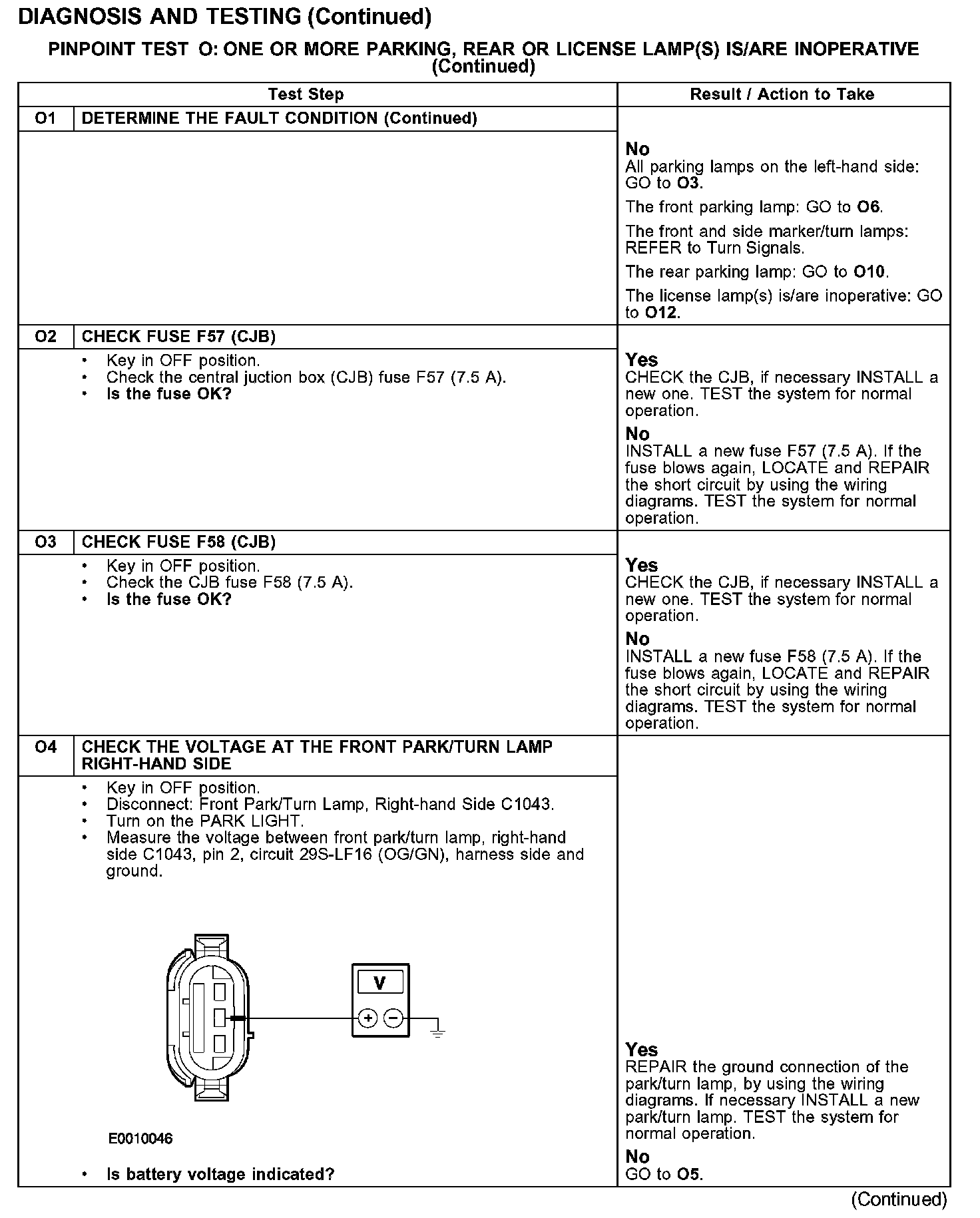

Test O1-O4:

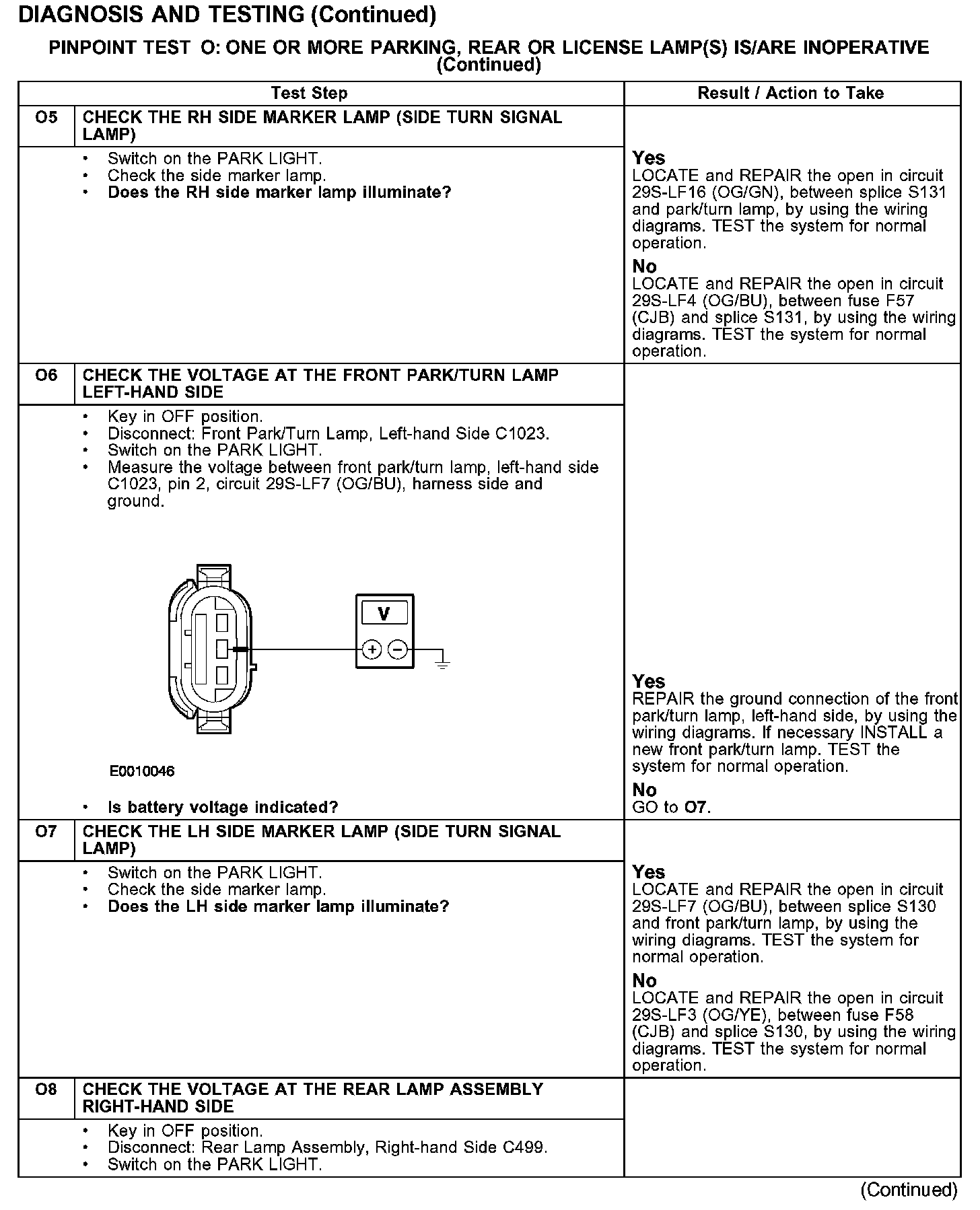

Test O5-O8:

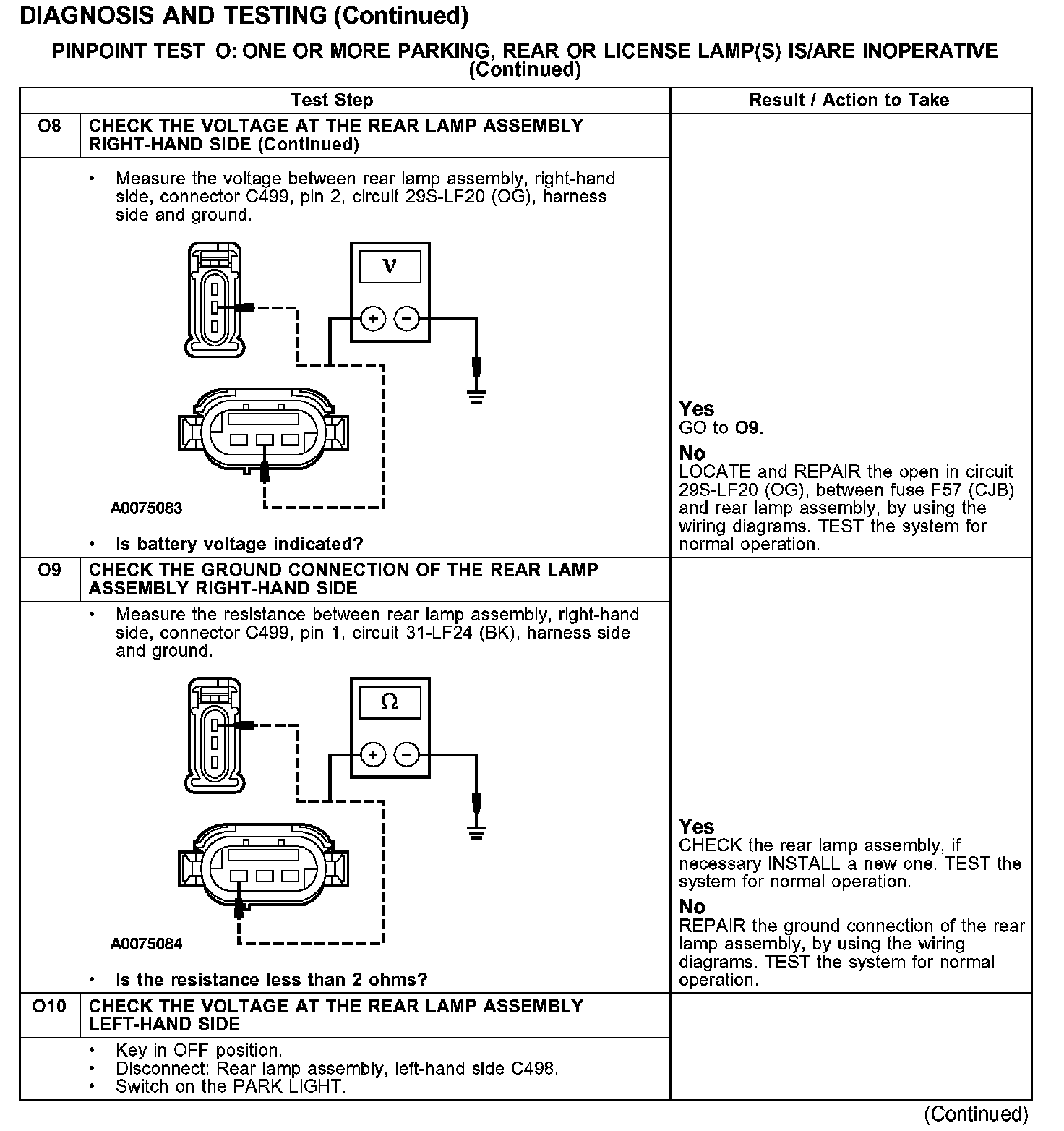

Test O8-O10:

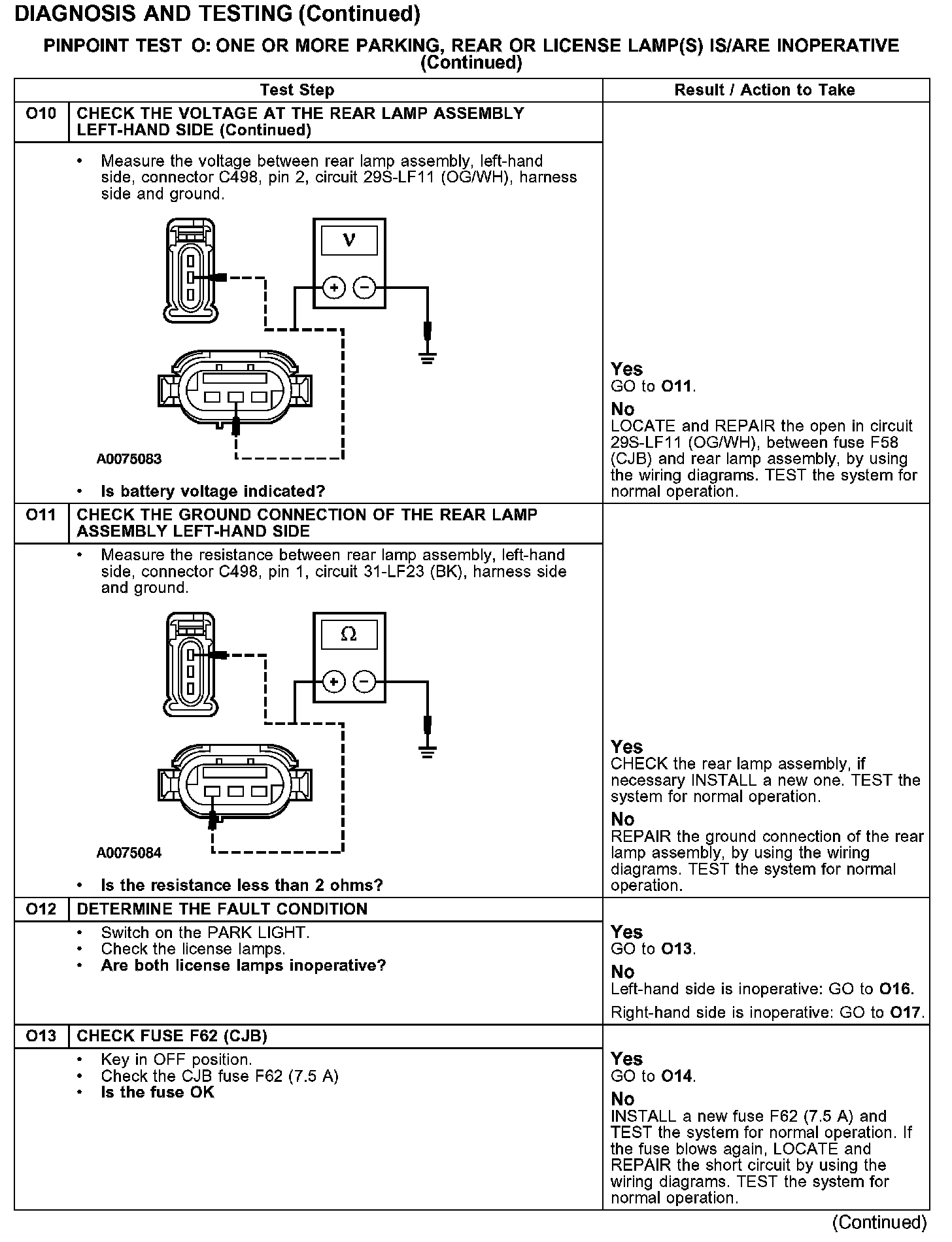

Test O10-O13:

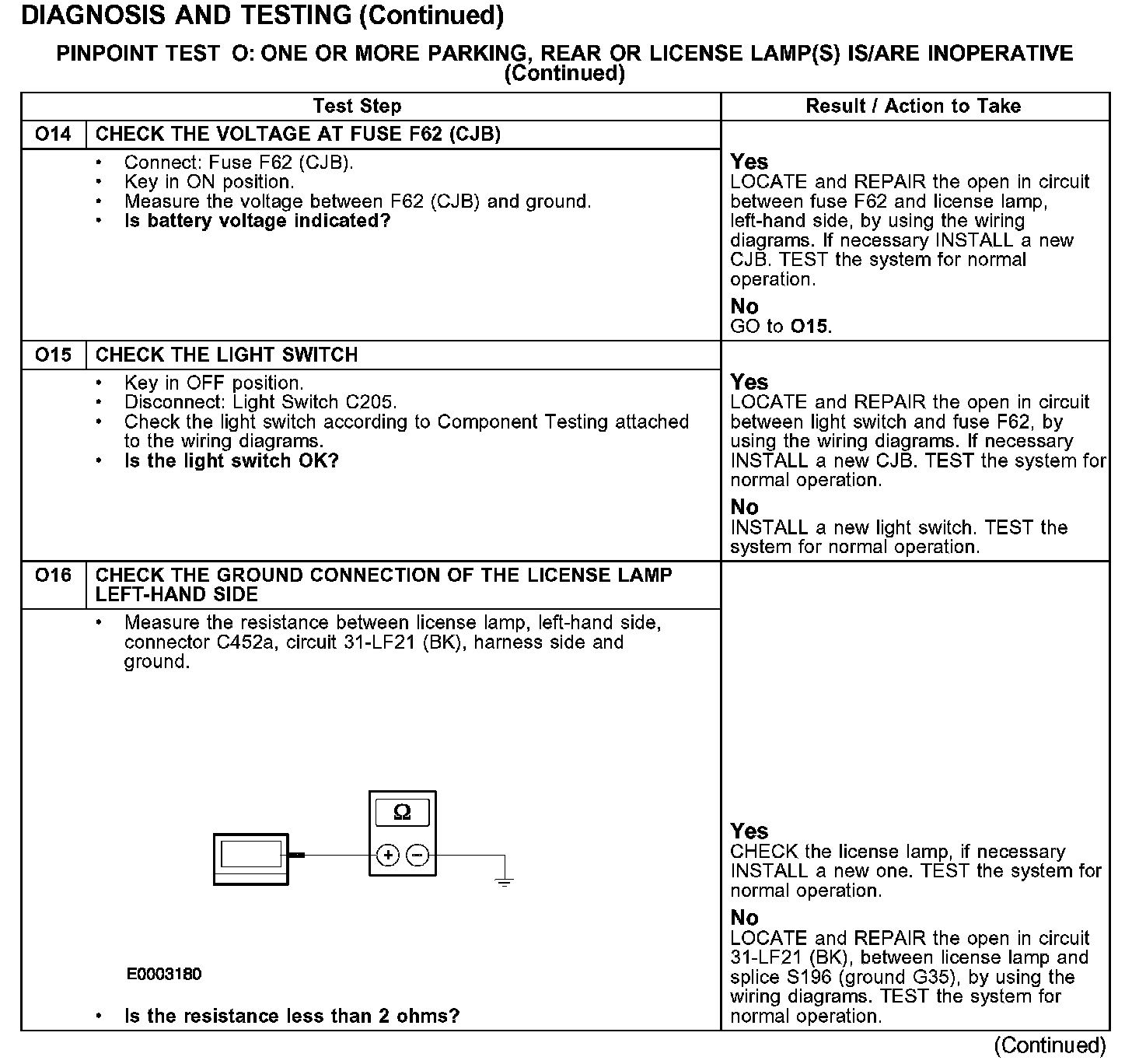

Test O14-O16:

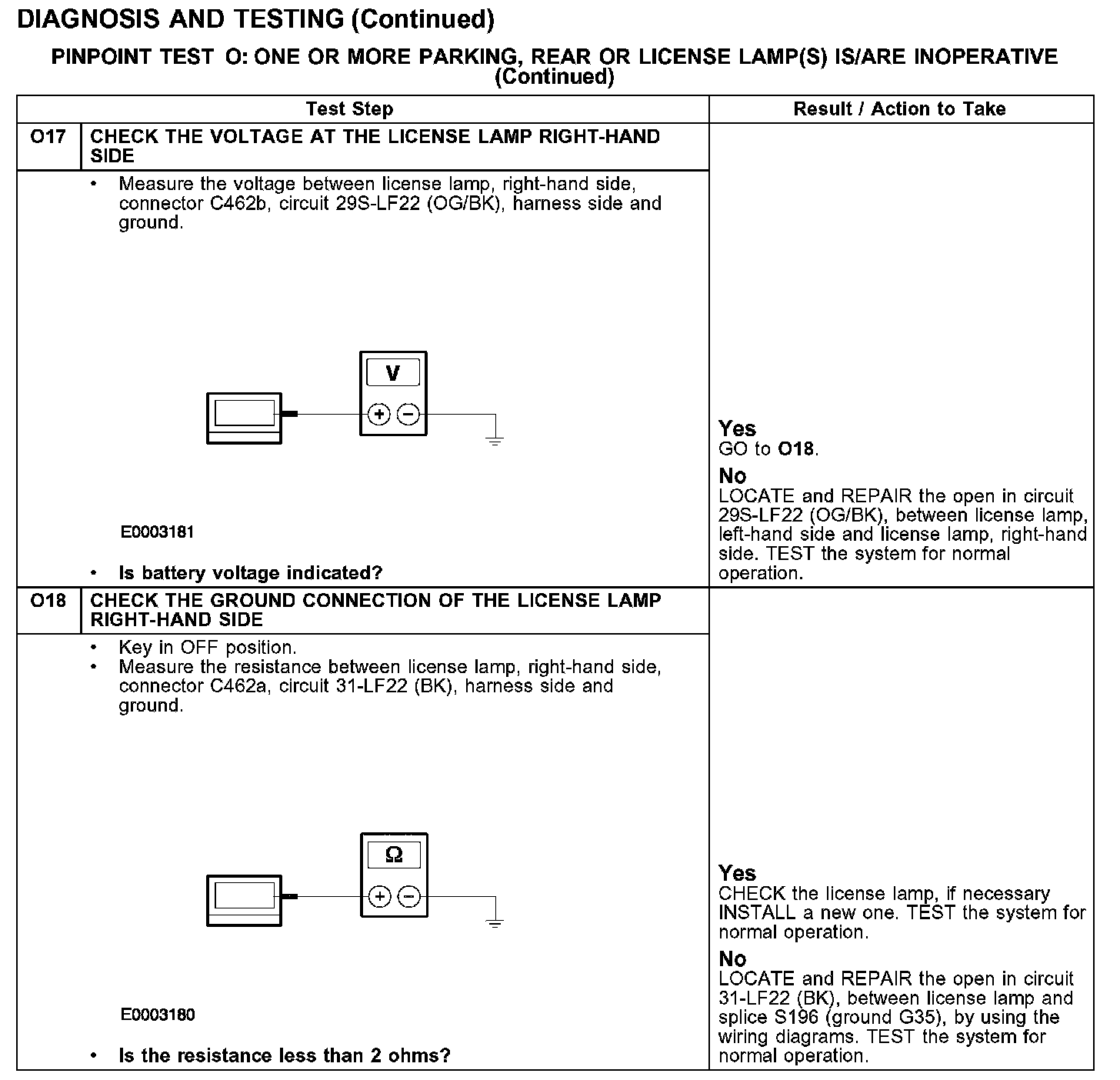

Test O17-O18:
