Evaporative Emission Control Canister: Service and Repair

EVAPORATIVE EMISSION CANISTER

REMOVAL

WARNING: The evaporative emission system contains fuel vapor and condensed fuel vapor. Although not present in large quantities, it still presents the danger of explosion or fire. Disconnect the battery ground cable from the battery to minimize the possibility of an electrical spark occurring, possibly causing a fire or explosion if fuel vapor or fuel liquid is present in the area. Failure to follow these instructions may result in personal injury.

1. Disconnect the battery ground cable.
2. With the vehicle in NEUTRAL, position it on a hoist.

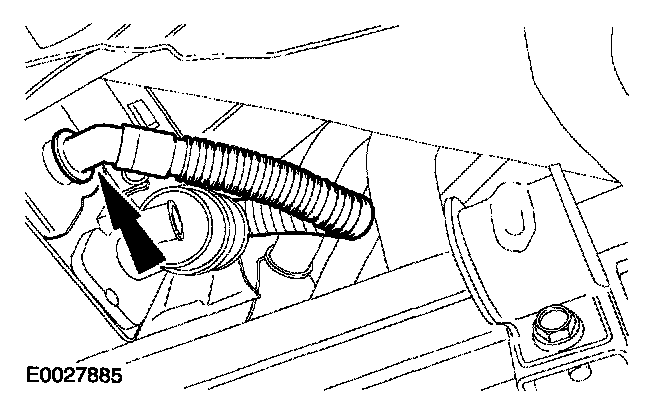

3. Disconnect the evaporative emission (EVAP) canister vent solenoid electrical connector.







4. CAUTION: Care must be taken to avoid damaging the evaporative emission canister vent solenoid.

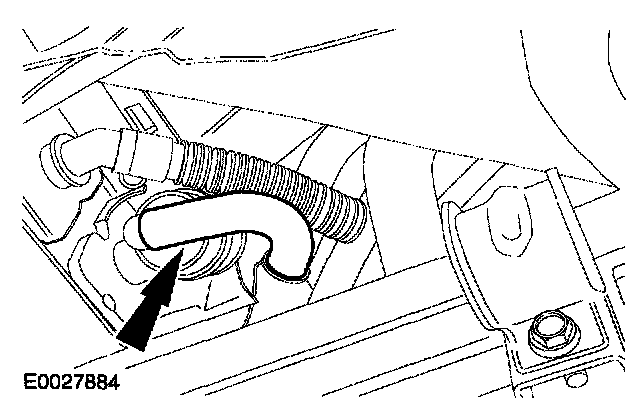

Disconnect the EVAP canister vent solenoid tube.

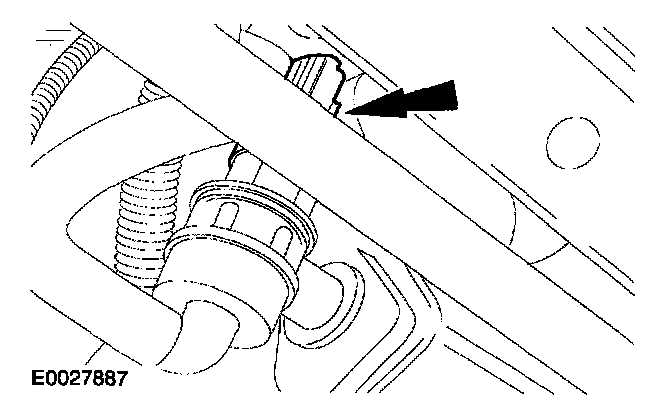

5. Disconnect the fuel tank vent tube.

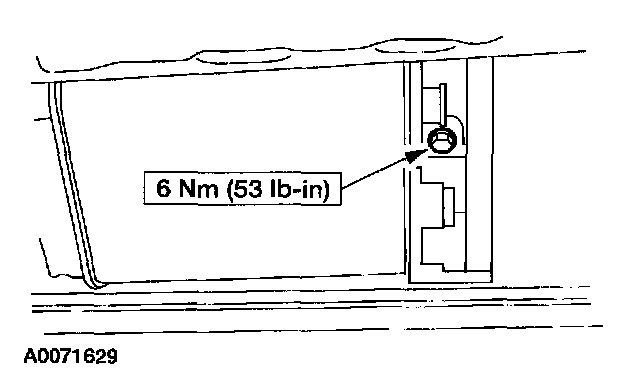

6. Remove the bolt.
- Remove the EVAP canister from the bracket.

INSTALLATION
1. To install, reverse the removal procedure.
2. Carry out the evaporative emission system leak test. Evaporative Emission System Leak Test
3. Carry out the evaporative emission repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle
