Variable Induction Control Actuator: Service and Repair

INTAKE MANIFOLD RUNNER CONTROL (IMRC) ACTUATOR

REMOVAL

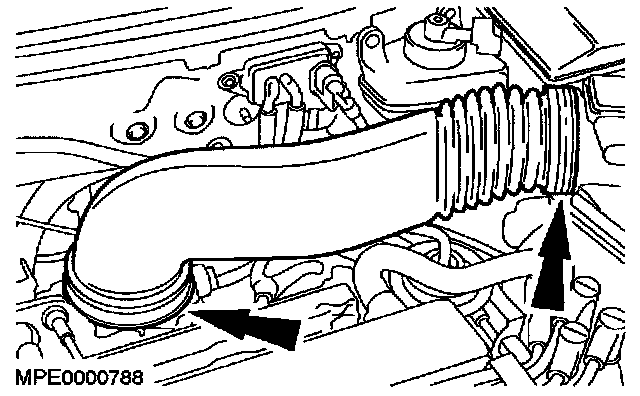

1. Remove the air cleaner outlet tube.







2. Disconnect the intake manifold runner control (IMRC) actuator electrical connector.

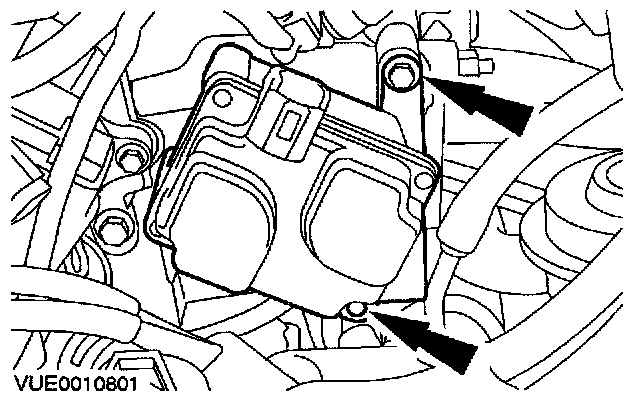

3. Remove the IMRC actuator.

INSTALLATION







1. NOTE: Make sure the pins in the IMRC are correctly inserted in the slots of the actuator.

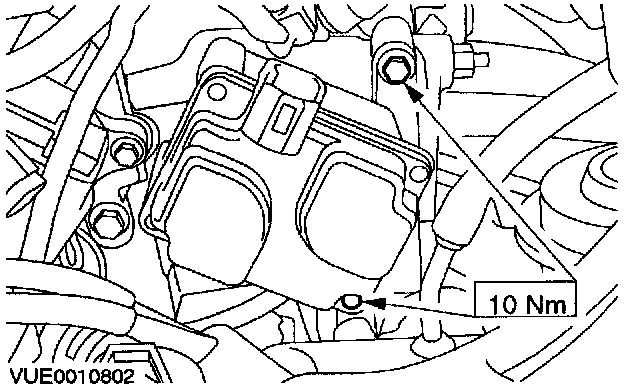

To install, reverse the removal procedure.
