Diagnostic Trouble Code Tests and Associated Procedures

RESTRAINT CONTROL MODULE (RCM) DTC INDEX

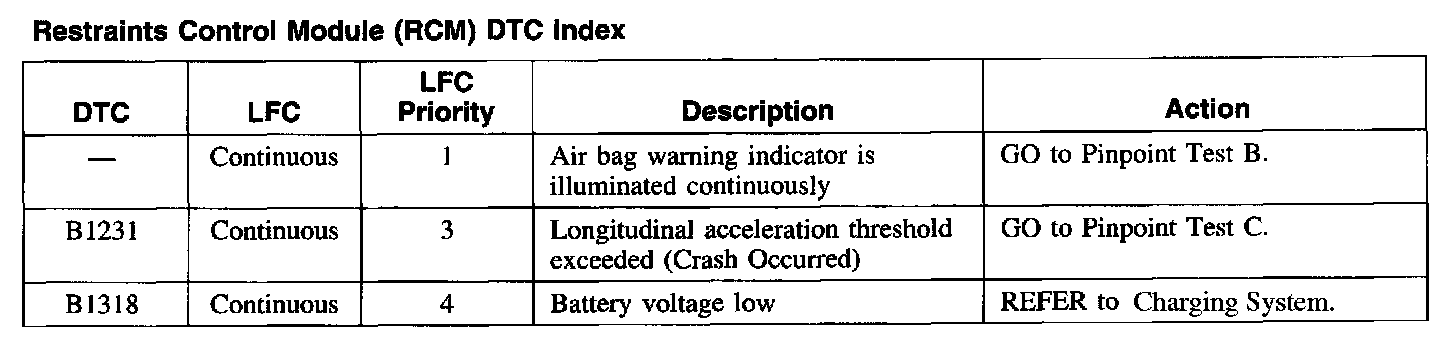

DTC Index B1231 - B1318:

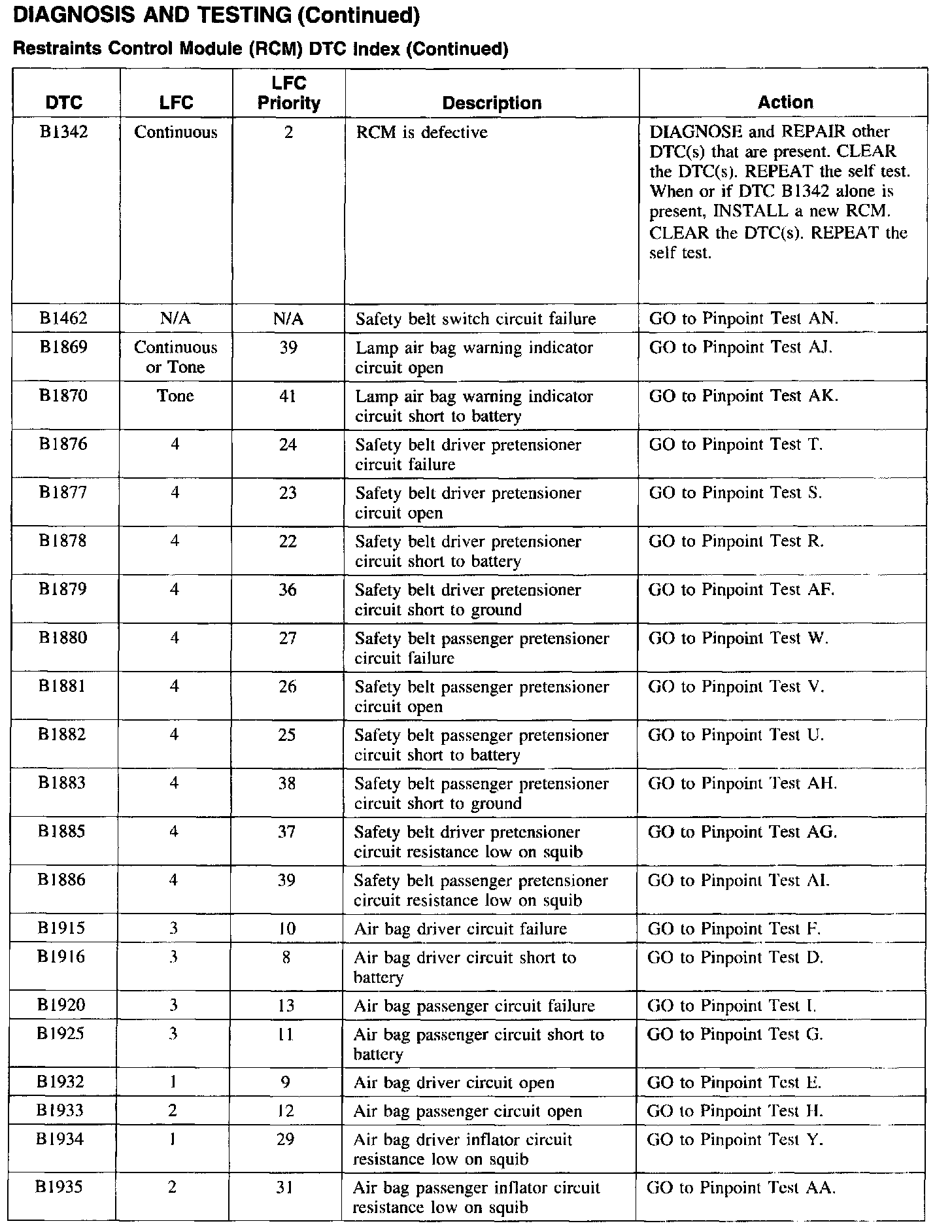

DTC Index B1342 - B1935:

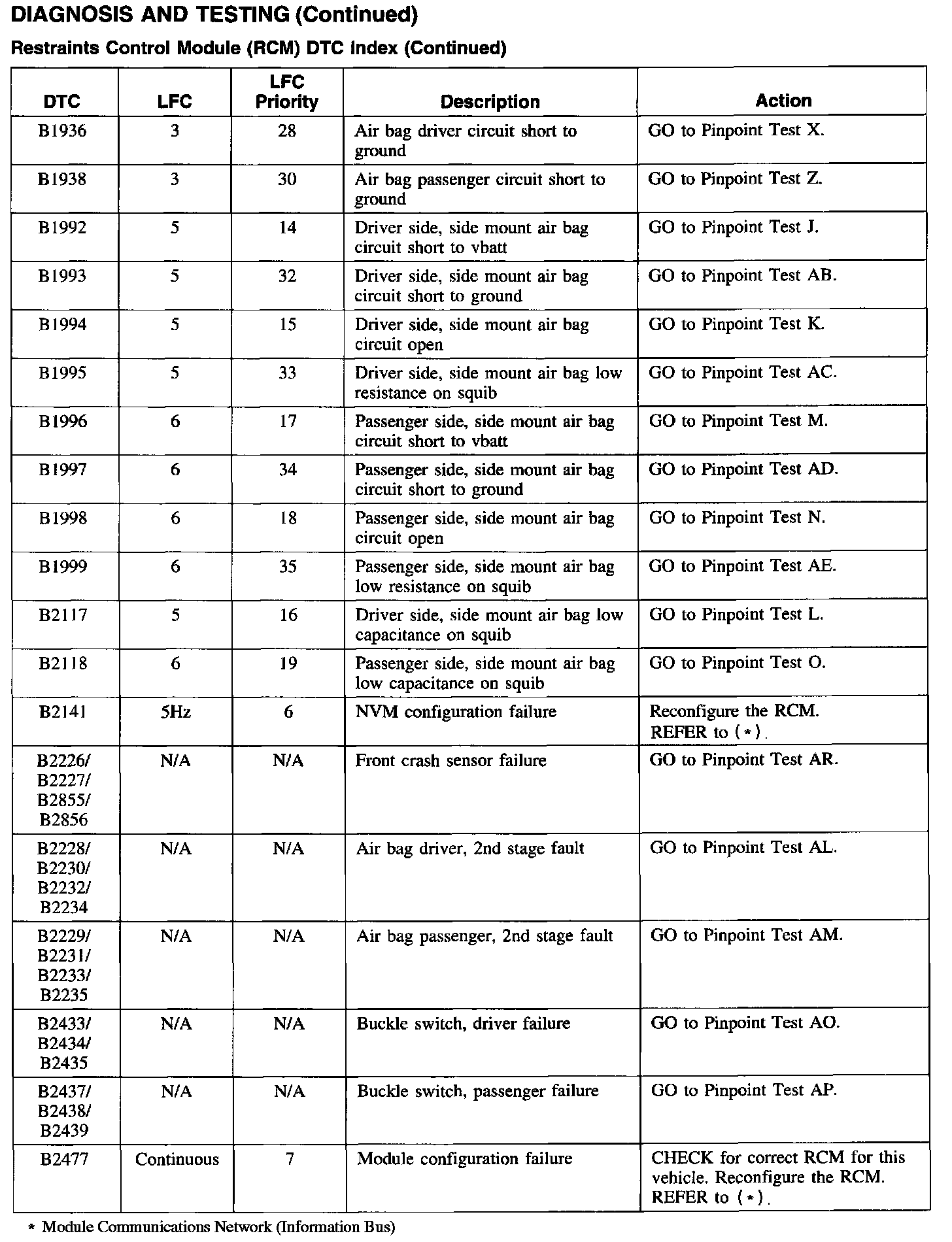

DTC Index B1936 - B2477:

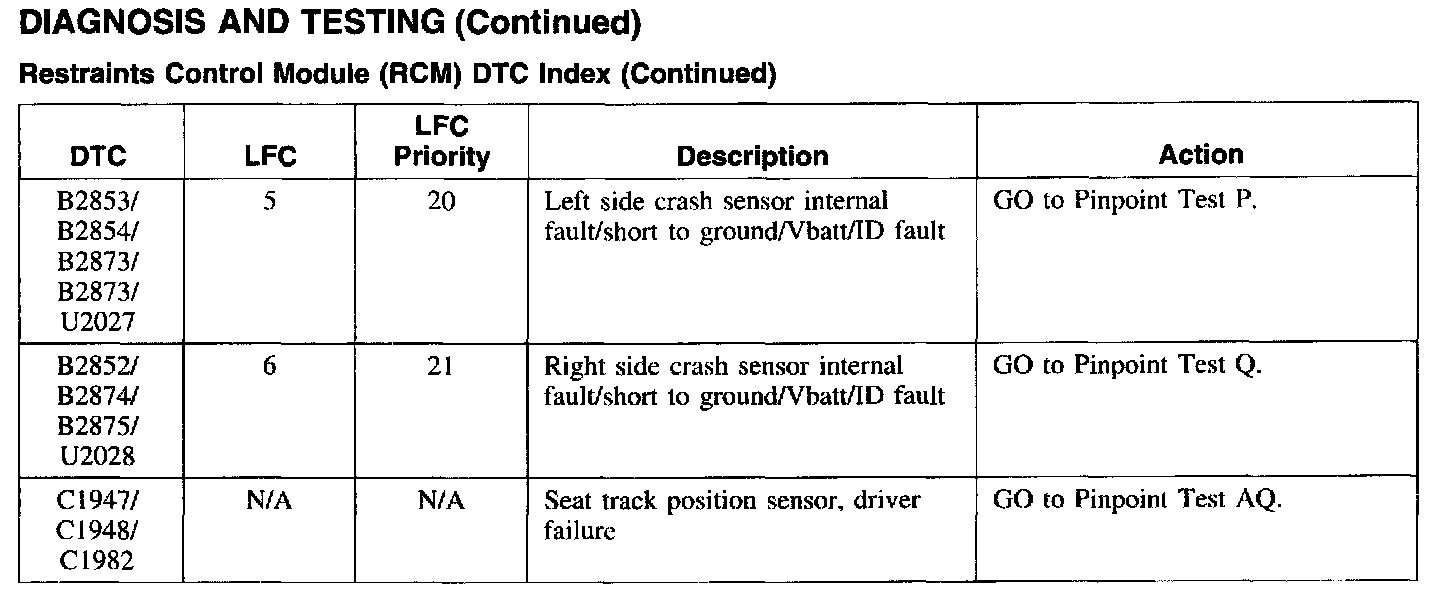

DTC Index B2853/B2854/B2873/U2027 - C1947/C1948/C1982:
