Test E
Test E

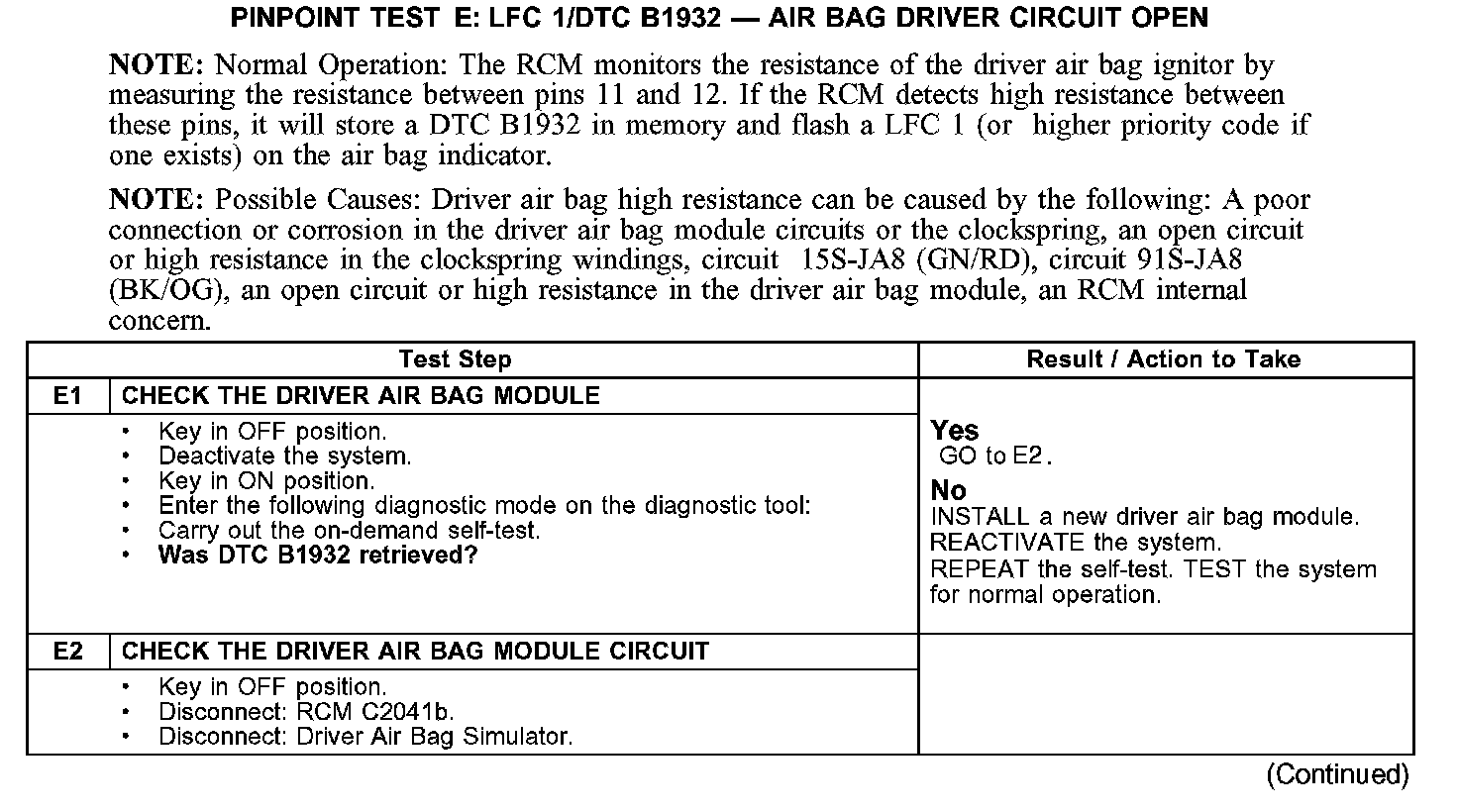

PINPOINT TEST E: LFC 1/DTC B1932 -
AIR BAG
DRIVER CIRCUIT OPEN
Test E1-E2:

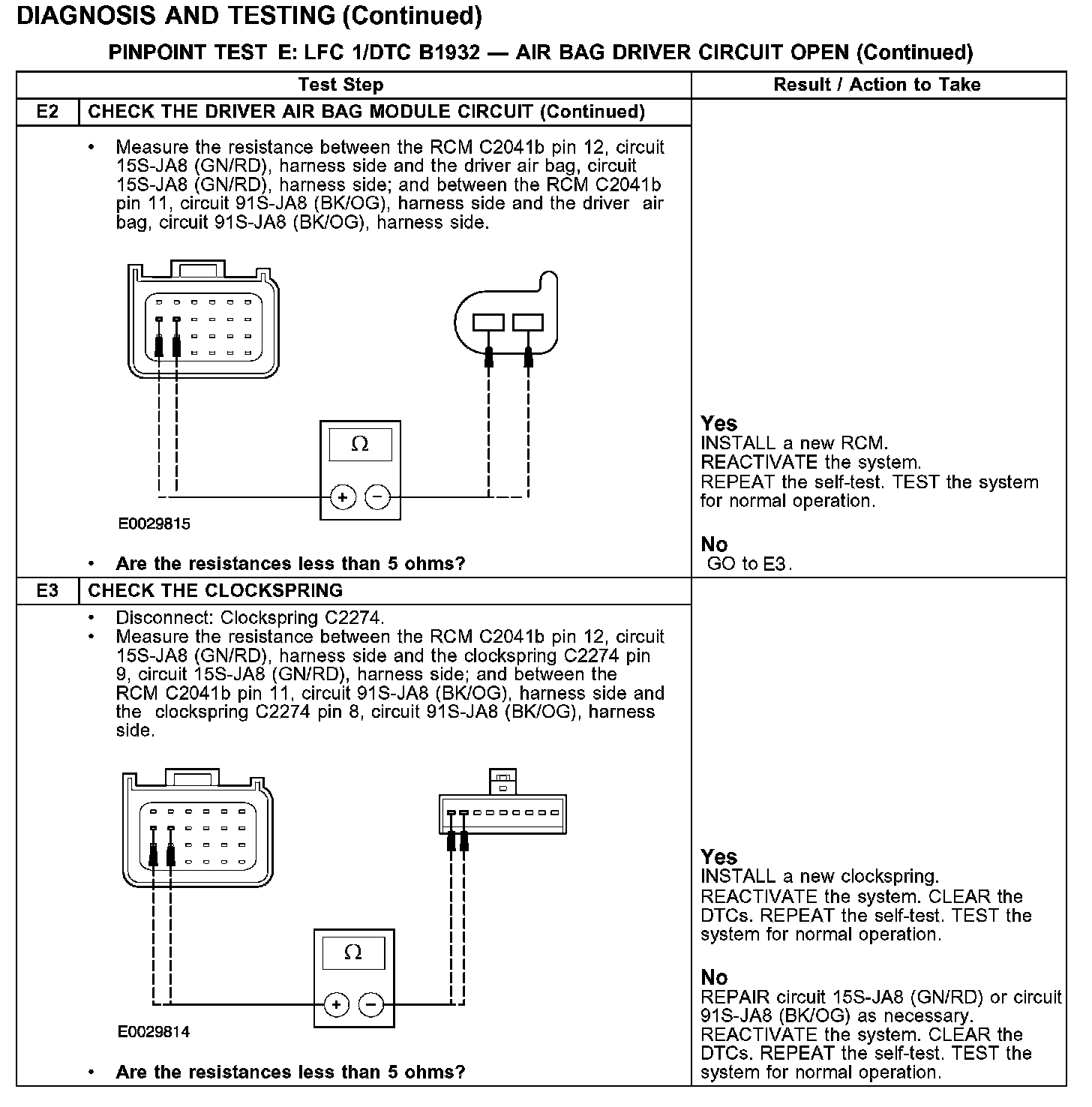

Test E2-E3:
