PINPOINT TEST AE: LFC 6/DTC B1999 - PASSENGER SIDE, SIDE MOUNT
AIR BAG
LOW RESISTANCE ON SQUIB

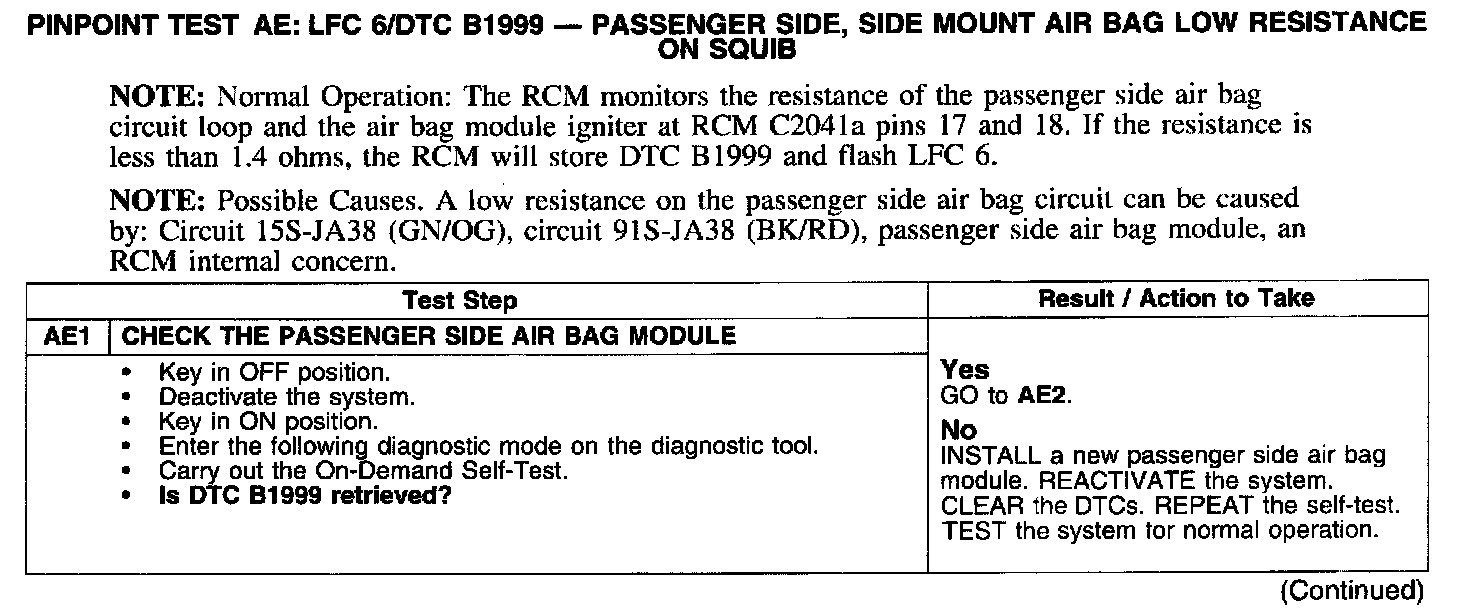

Test AE1:

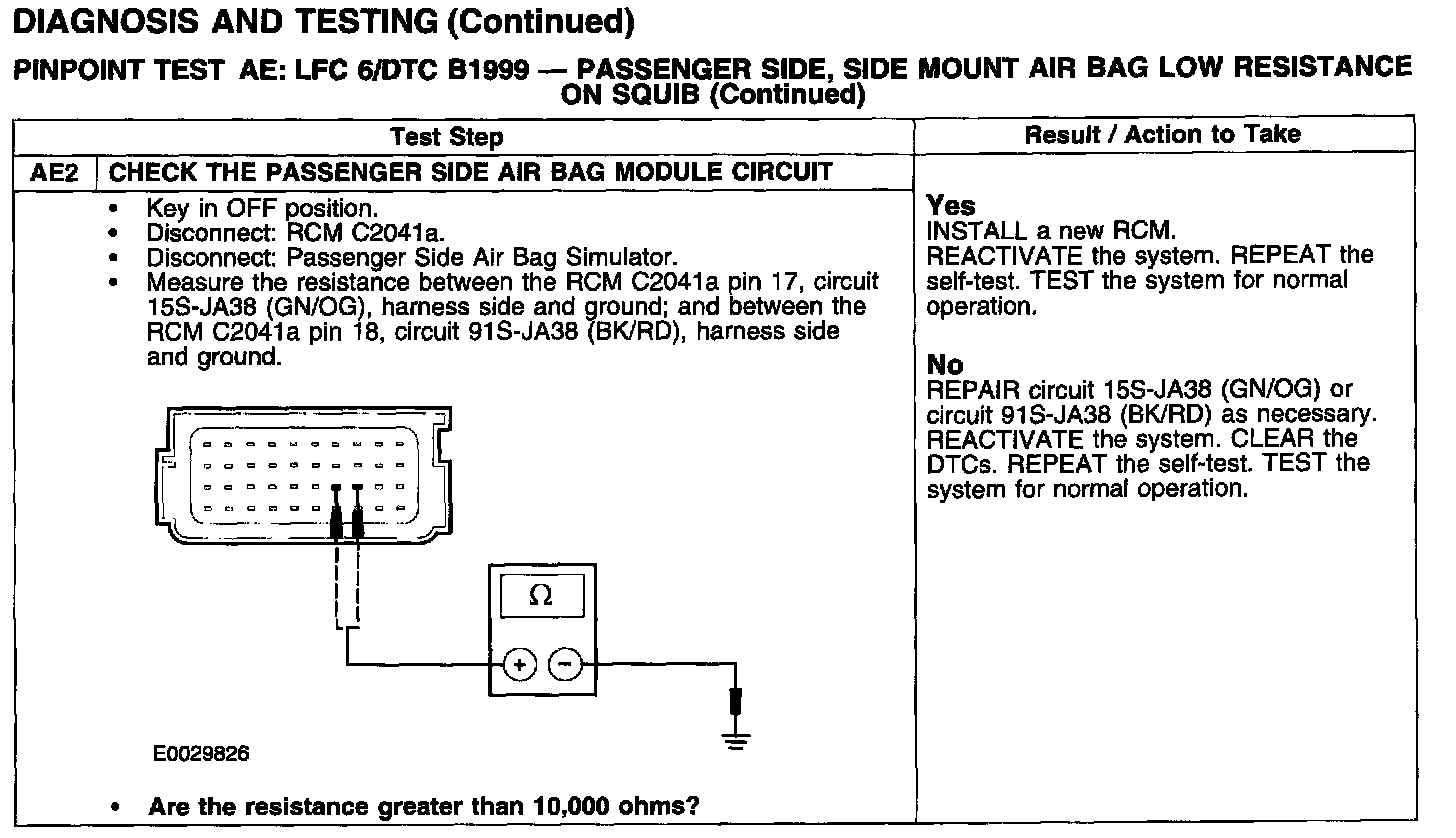

Test AE2:
