Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Focus L4-2.0L DOHC VIN 5
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Tests AI
Tests AI
PINPOINT TEST AI: LFC 4/DTC B1886 - SAFETY BELT PASSENGER PRETENSIONER CIRCUIT RESISTANCE LOW ON SQUIB

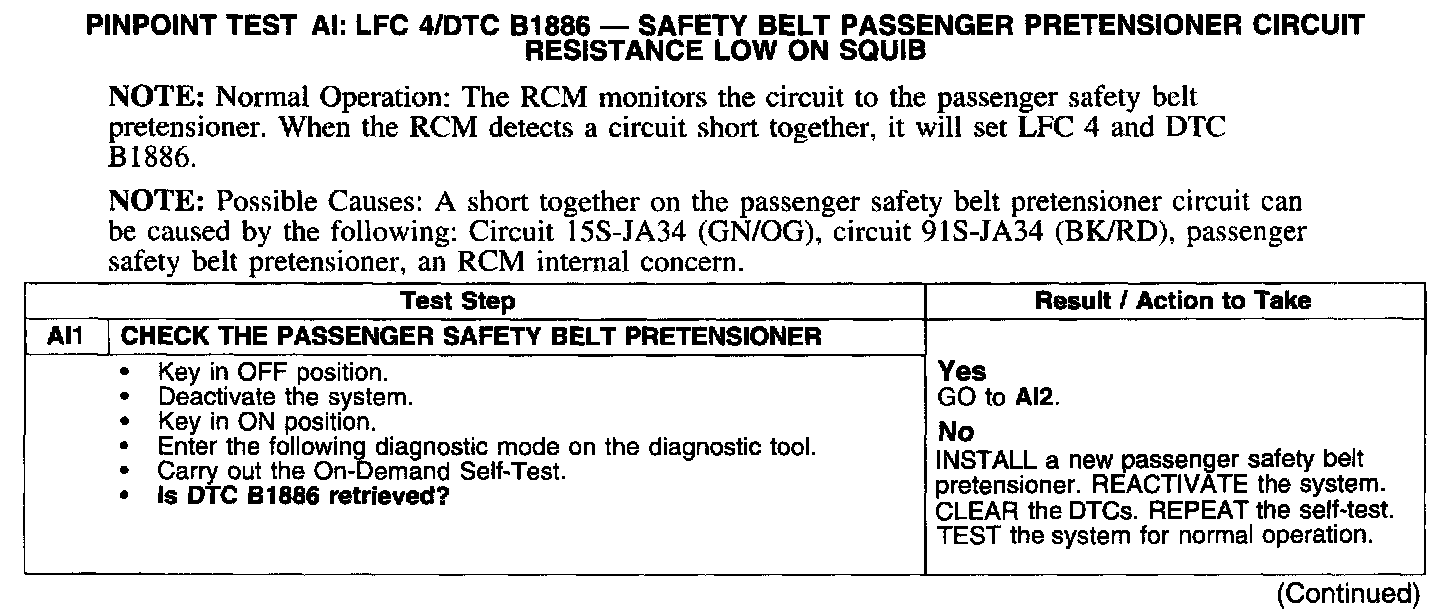

Test AI1:

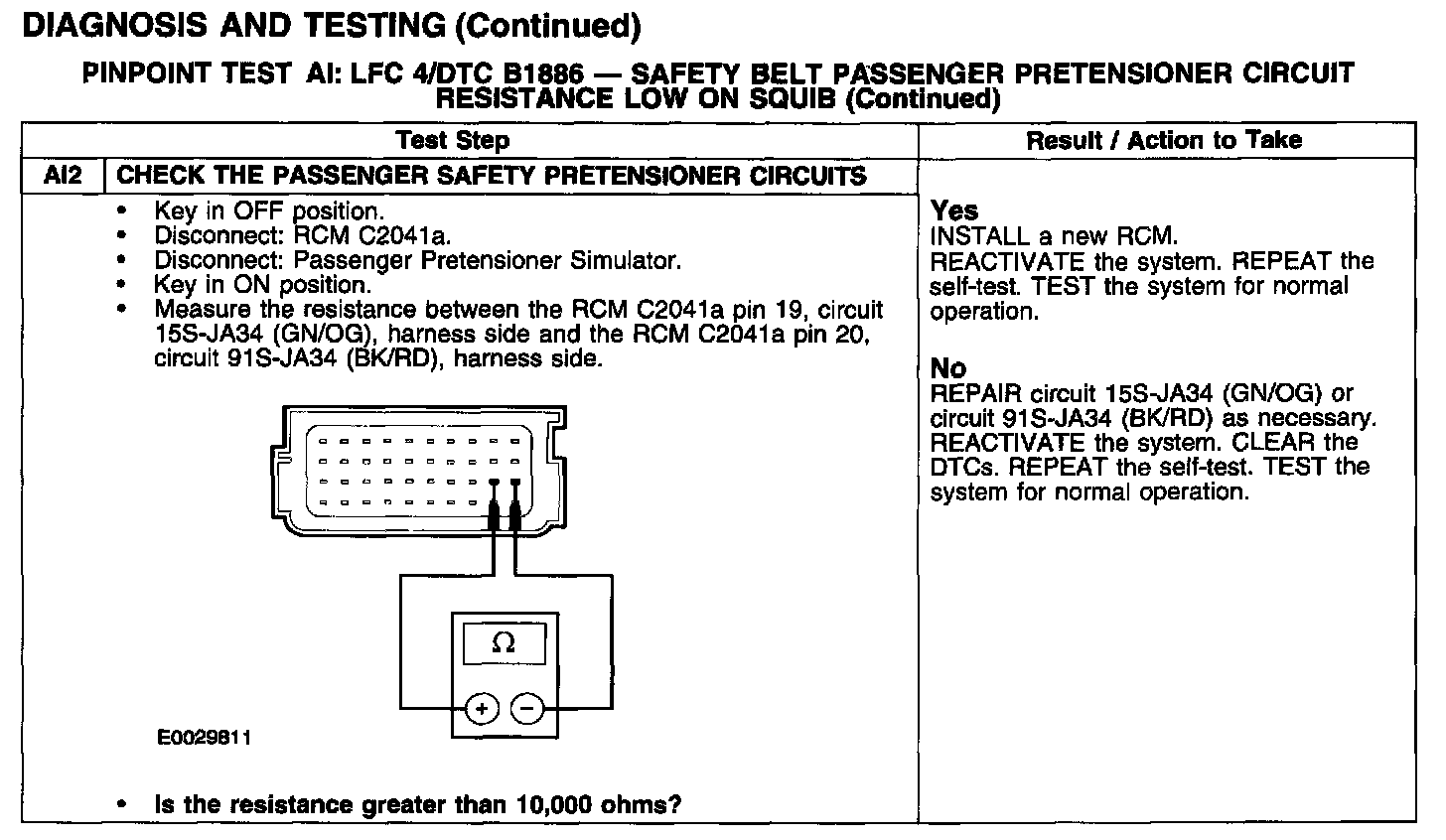

Test AI2:
