Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Focus L4-2.0L DOHC VIN 5
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test A
Test A
PINPOINT TEST A: THE
CHARGING SYSTEM
WARNING INDICATOR IS ON WITH THE ENGINE RUNNING

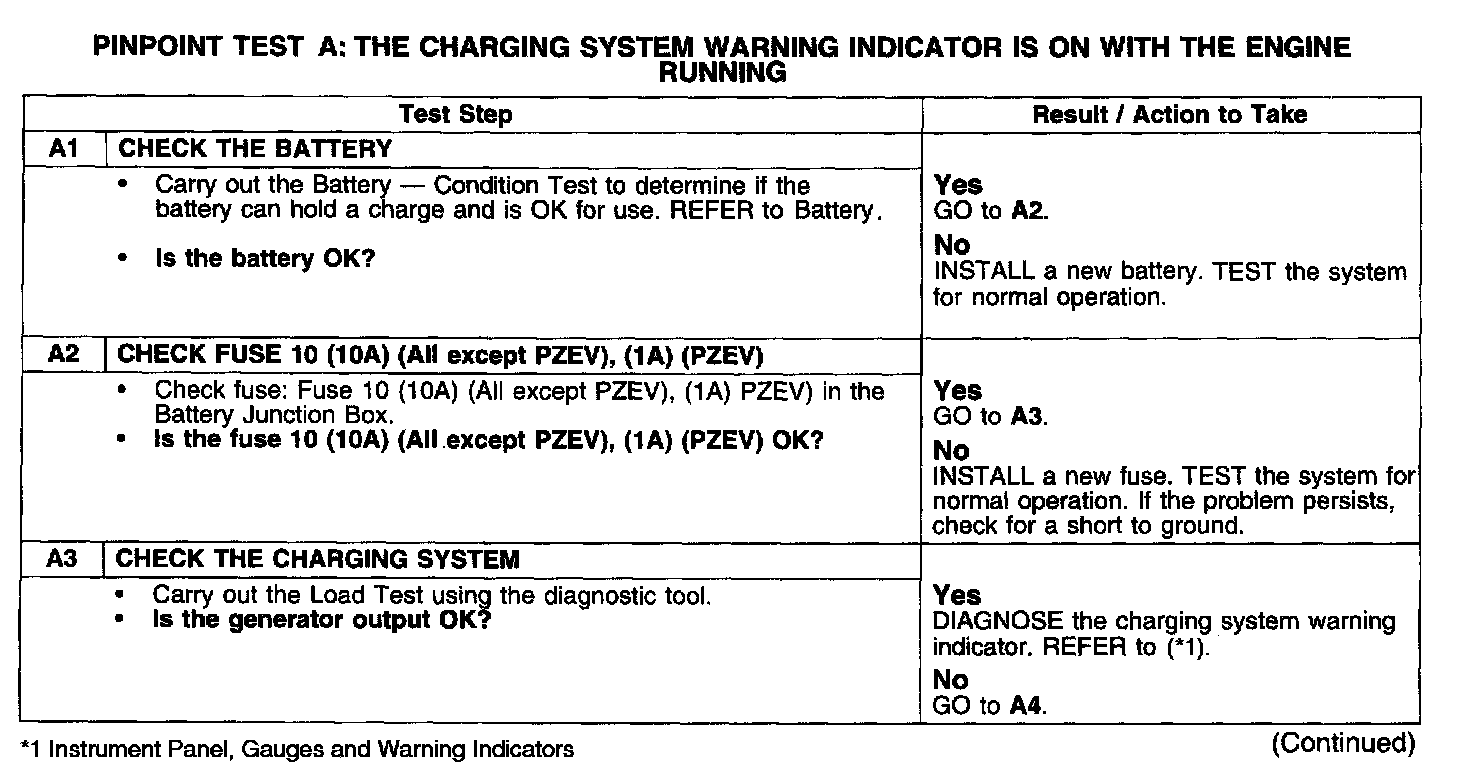

Test A1-A3:

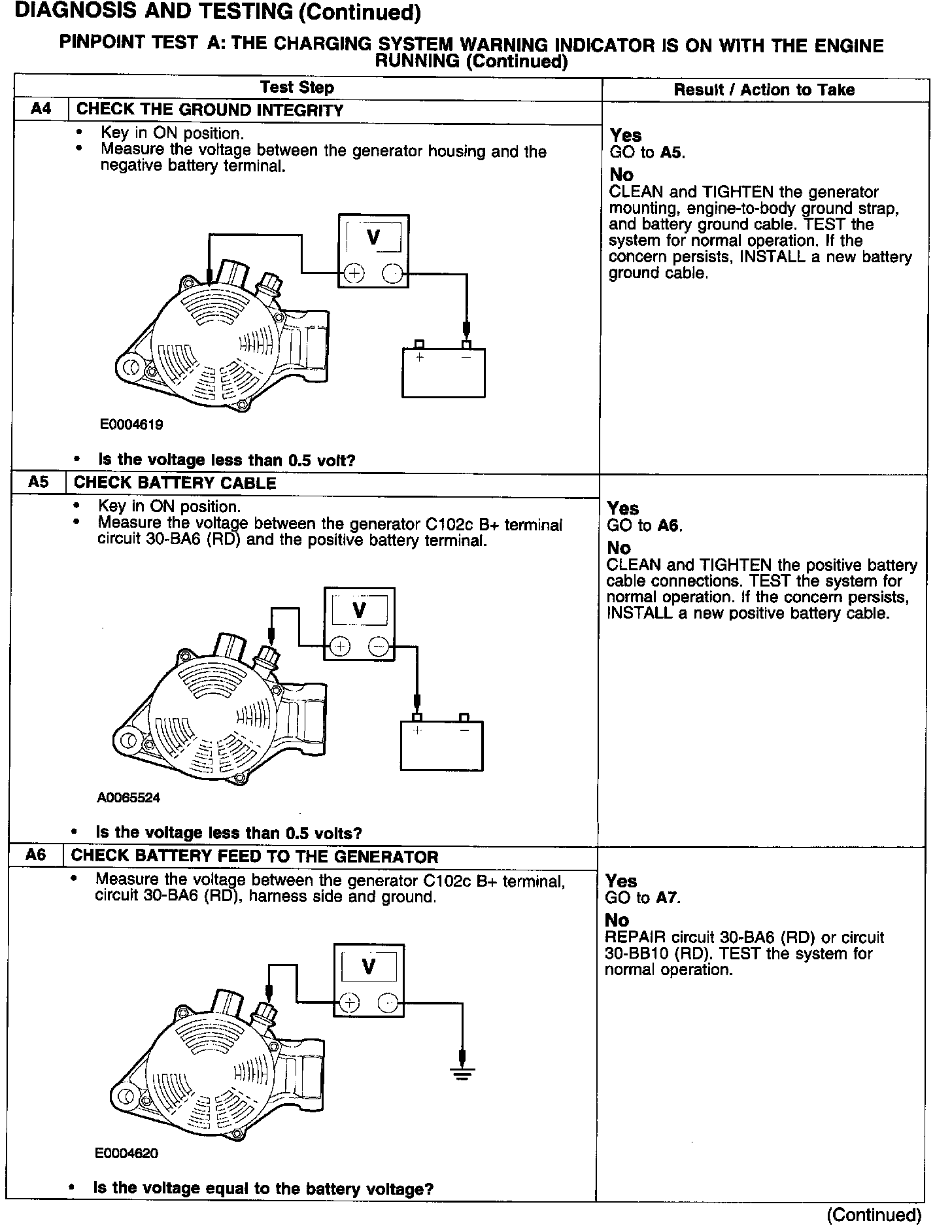

Test A4-A6:
Test A7-A8:
