Power Steering Pump Pulley

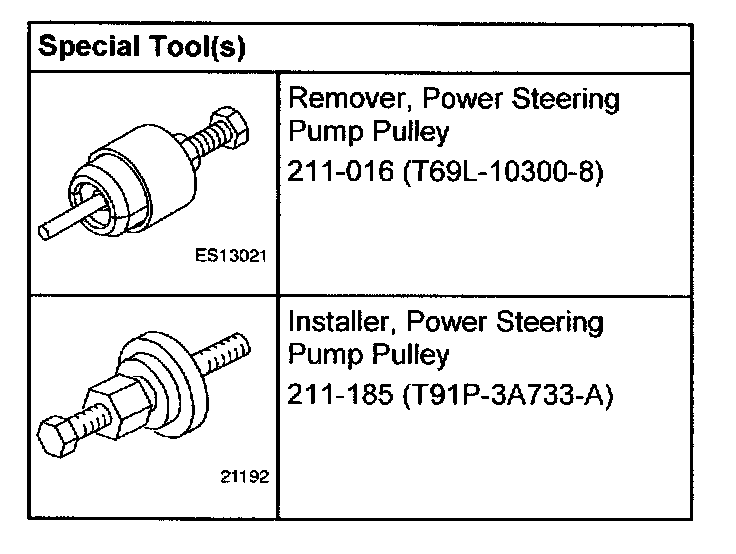

Power Steering Pump PulleySpecial Tool(s)
Removal
1. Remove the accessory drive belt.
2. Lower the vehicle.
3. NOTE: Zetec-E shown, SPI engine similar.

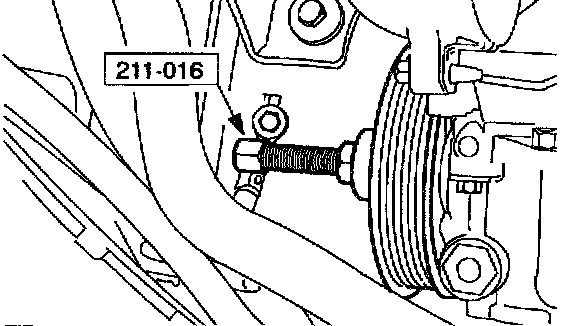

Using the special tool, remove the power steering pump pulley.
Installation
1. NOTE: Make sure the pulley is flush with the end of the power steering pump shaft.

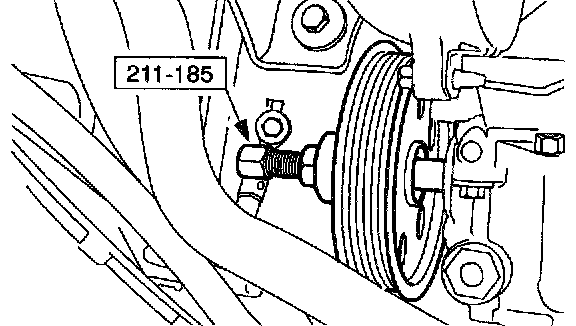

Using the special tool, install the power steering pump pulley.
2. Install the accessory drive belt.
