Pump

Power Steering Pump-SVT





Special Tool(s)

Removal
1. Remove the accessory drive belt.

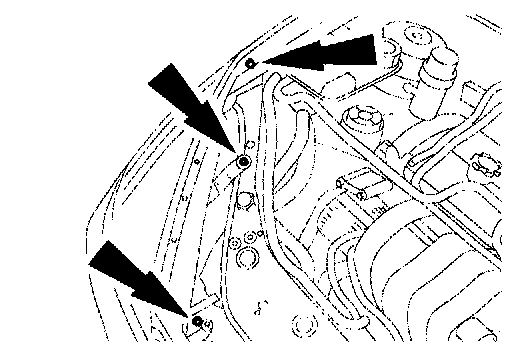

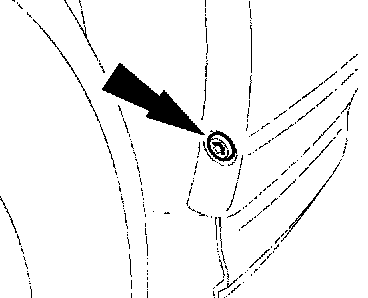

2. Detach the fender splash shield from the front bumper cover to gain access to the right-hand headlamp assembly lower retaining bolt.

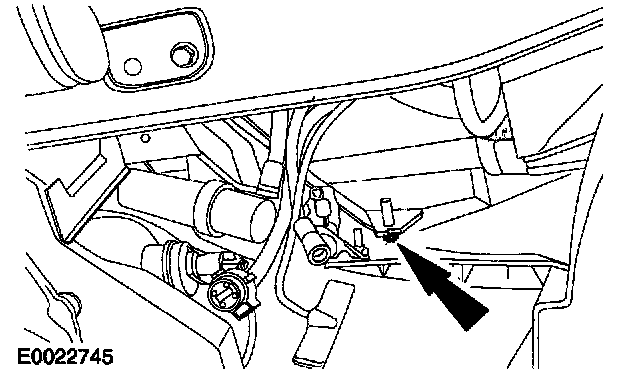

3. Remove the right-hand headlamp assembly lower retaining bolt.





4. Using the special tool, disconnect the power steering fluid cooler line from the power steering fluid cooler.
1 Insert the special tool into the spring lock coupling.
2 Slide the special tool along the line to release the locking tangs.
^ Allow the fluid to drain into a suitable container.

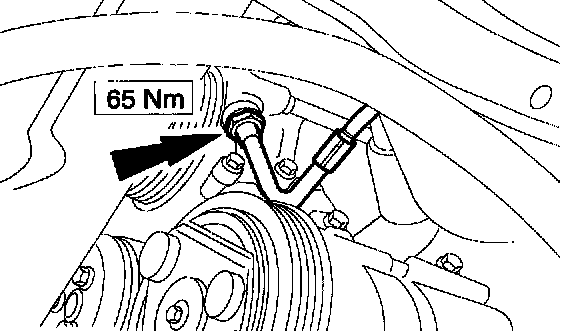

5. Disconnect the power steering line from the power steering pump.
^ Allow the fluid to drain into a suitable container.
^ Discard the O-ring seal.

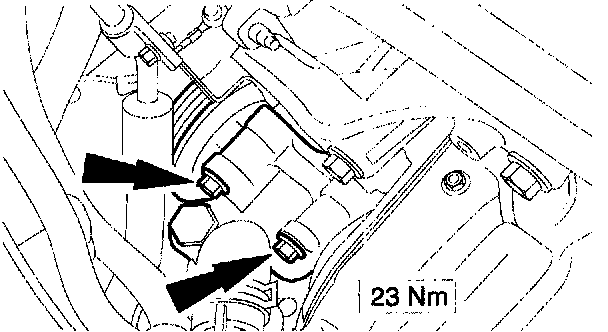

6. Remove the power steering pump lower retaining bolts.
7. Lower the vehicle.

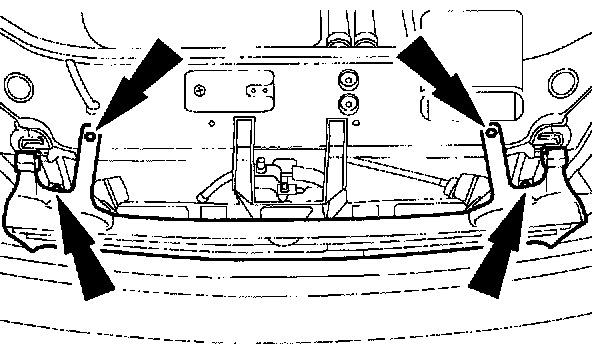

8. Remove the radiator grille.





9. Remove the right-hand headlamp assembly.
^ Disconnect the electrical connector.





10. Disconnect the power steering hose from the power steering pump.
^ Allow the fluid to drain into a suitable container.

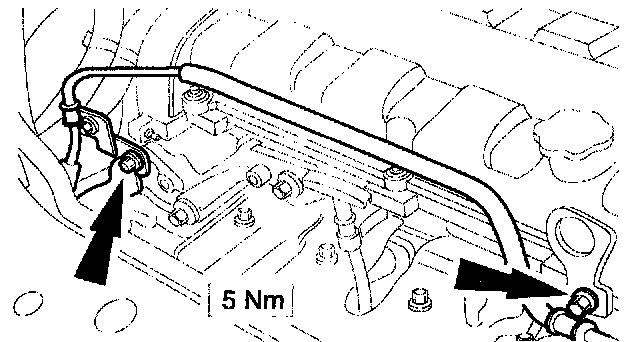

11. Detach the power steering line from the engine and position to one side.





12. Remove the power steering pump.

Installation

1. NOTE: If installing a new power steering pump, the unions supplied with the new pump should be removed and retained for further use.

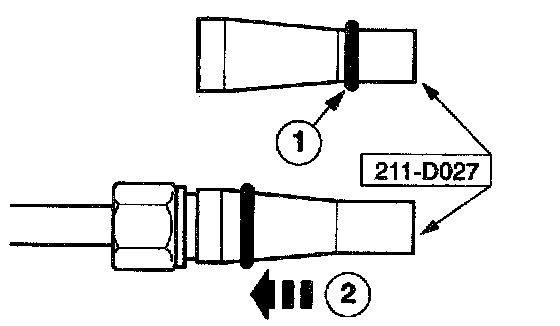

Using the special tool, install a new O-ring seal onto the power steering pump to steering gear line union.
1 Push the O-ring seal onto the special tool.
2 Locate the special tool onto the union and install the O-ring seal.
2. To install, reverse the removal procedure.
3. Fill and bleed the power steering system.
