Steering Gear Boot

Steering Gear Boot

Removal
1. Remove the tie-rod end.





2. Remove the boot.

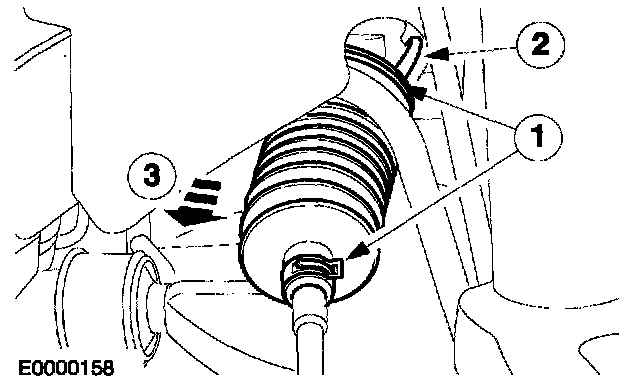

1 Remove the clamps.
2 Disconnect the breather pipe (if equipped).
3 Remove the boot.

Installation

1. CAUTION: Make sure the tie-rod is clean before installing the boot.

NOTE: Install the boot using new clamps.

To install, reverse the removal procedure.
