Spring

Spring

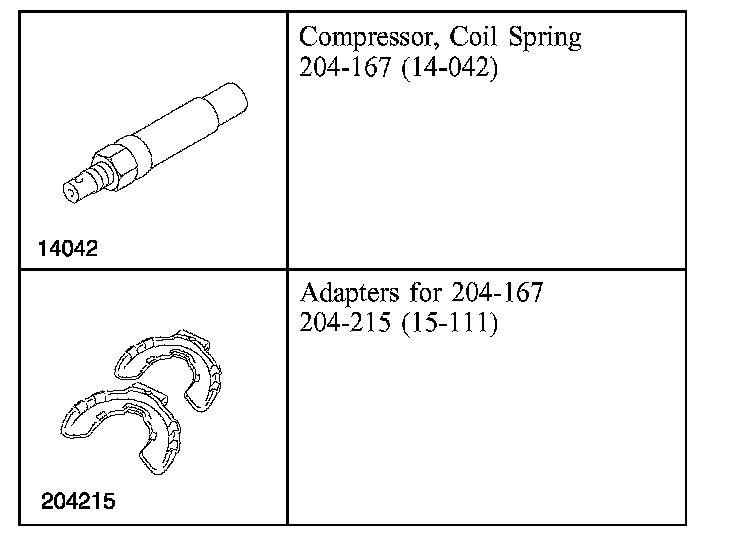

Special Tool(s)

Removal
1. Raise and support the vehicle.





2. WARNING: As the spring is under extreme tension care must be taken at all times. Failure to follow this instruction may result in personal injury.

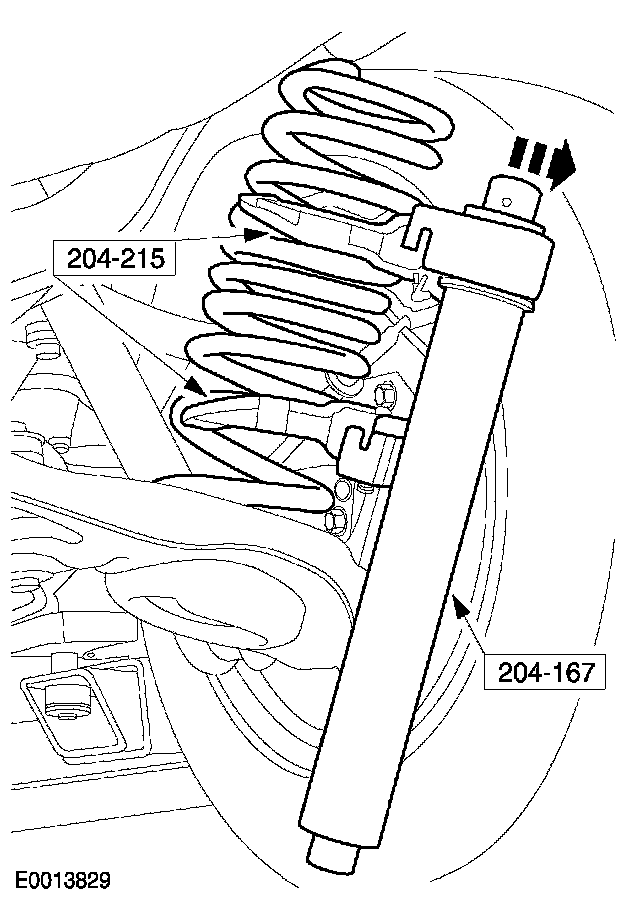

Using the special tools, remove the spring.

Installation

1. NOTE: Make sure the top seat mounting is installed, and the spring ends butt correctly against the upper and lower spring seats.

To install, reverse the removal procedure.
