Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Focus L4-2.0L DOHC VIN 5
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Diagrams
>>
Exploded Views
>>

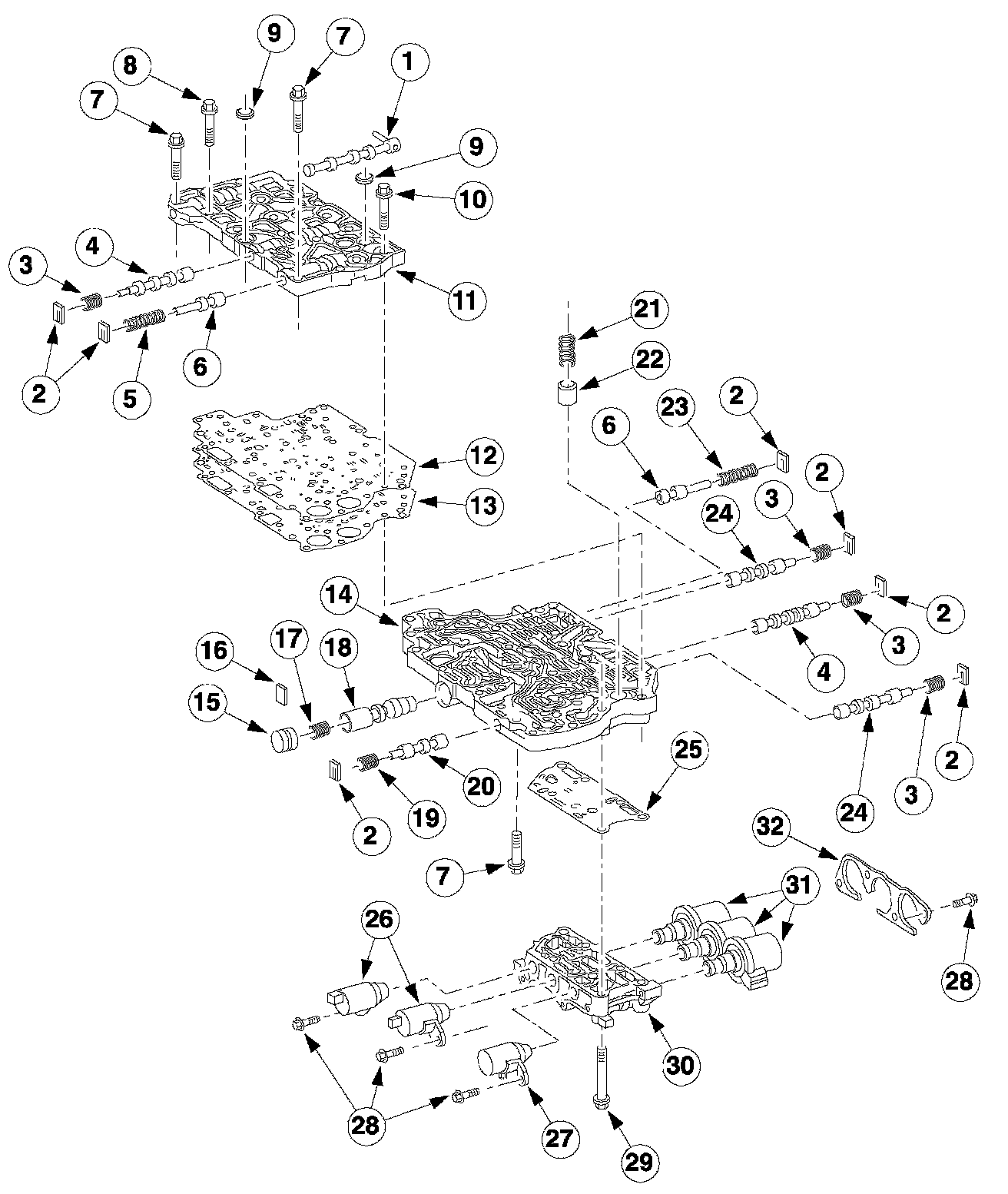

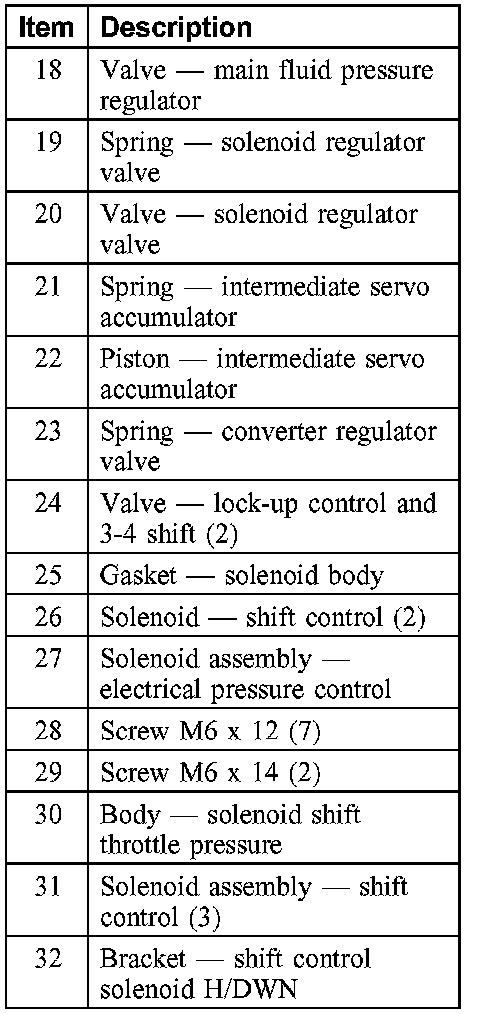

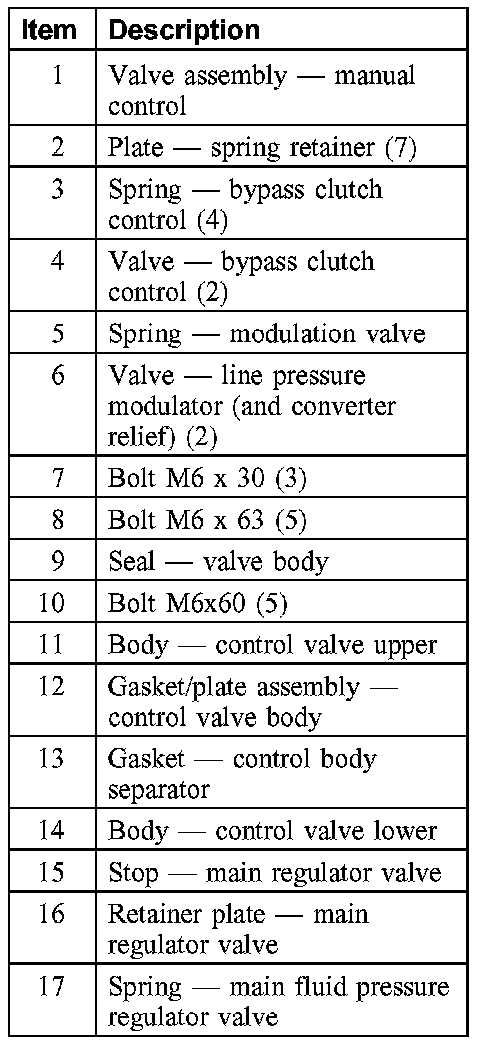

Main Control Assembly
Main Control Assembly
Part 1:
Part 2:
Part 3:
