MT285/MTX75 Transaxles

Clutch Slave Cylinder

Removal
1. Remove the transaxle.
2. Clean any grease and foreign material from the input shaft.





3. CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

CAUTION: Using suitable adhesive tape, cover the input shaft splines to prevent damage to the input shaft oil seal.

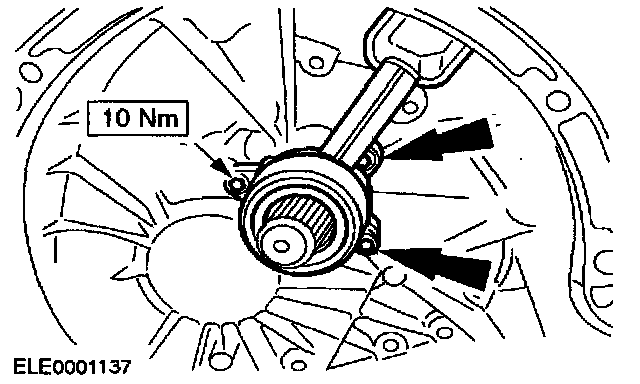

Remove the clutch slave cylinder.

Installation





1. CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

CAUTION: Do not apply grease on any area of the clutch slave cylinder.

NOTE: Install a new clutch slave cylinder and O-ring seal.

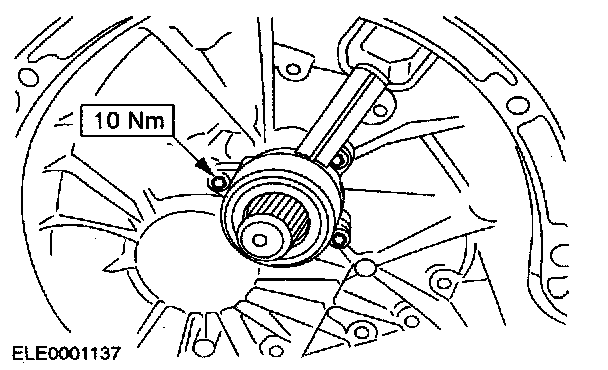

Using sealer, install the clutch slave cylinder.
2. Remove the adhesive tape from the input shaft splines.
3. Coat the input shaft splines with a thin layer of high-temperature grease.
4. Install the transaxle.
