Fill Procedure

Fill Procedure

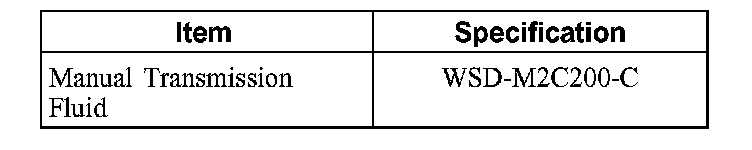

Material
1. Raise and support the vehicle.

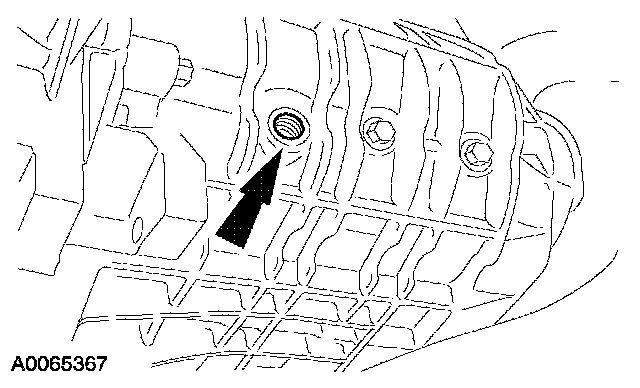

2. Remove the fill plug.

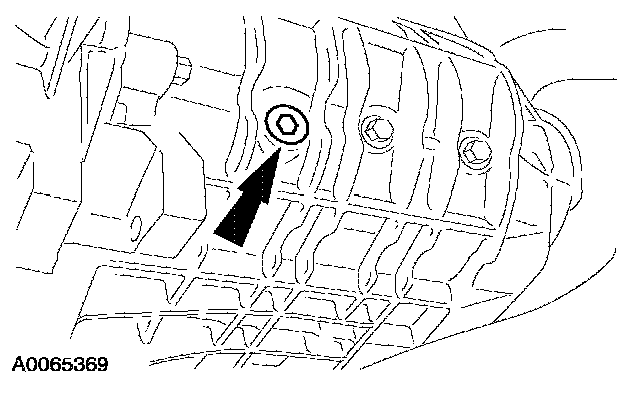

3. Fill the transaxle to 0-5mm below the lower edge of the filler plug bore.
- Fill with manual transmission fluid.

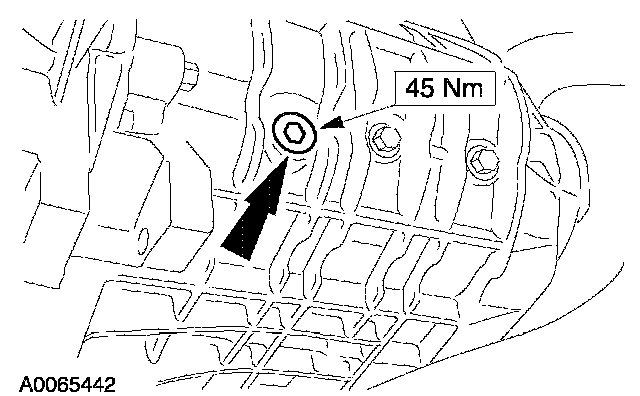

4. Install the fill plug.
5. Lower the vehicle.
