Removal and Installation

Gearshift Lever

Removal

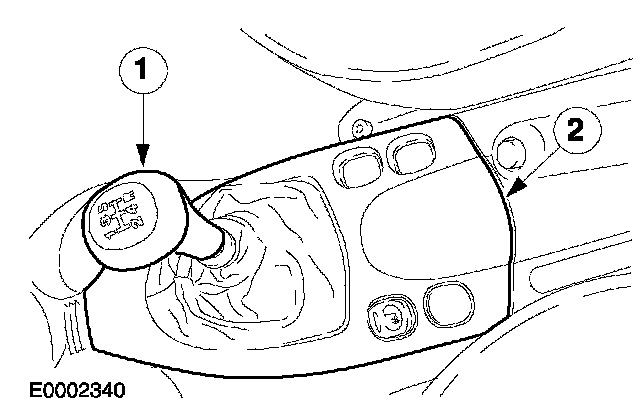

1. Remove the gearshift lever cover.
1. Remove the gearshift lever knob.
2. Unclip the cover.
- Disconnect the connectors (number and configuration depends on equipment).

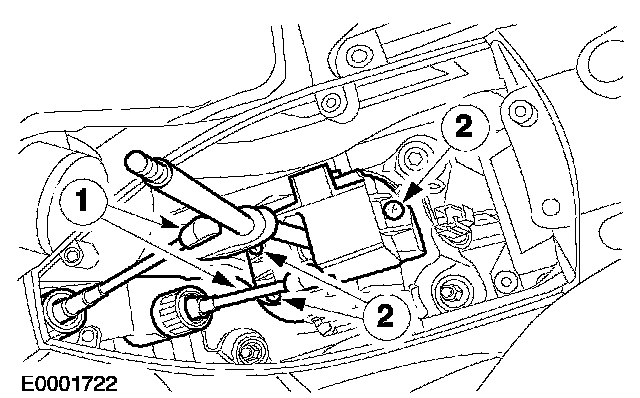

2. Remove the manual transaxle gearshift lever.
1. Detach the gearshift and selector cables.
2. Remove the bolts.

Installation
1. Re-install the components in reverse order.
2. Adjust the gearshift mechanism.
